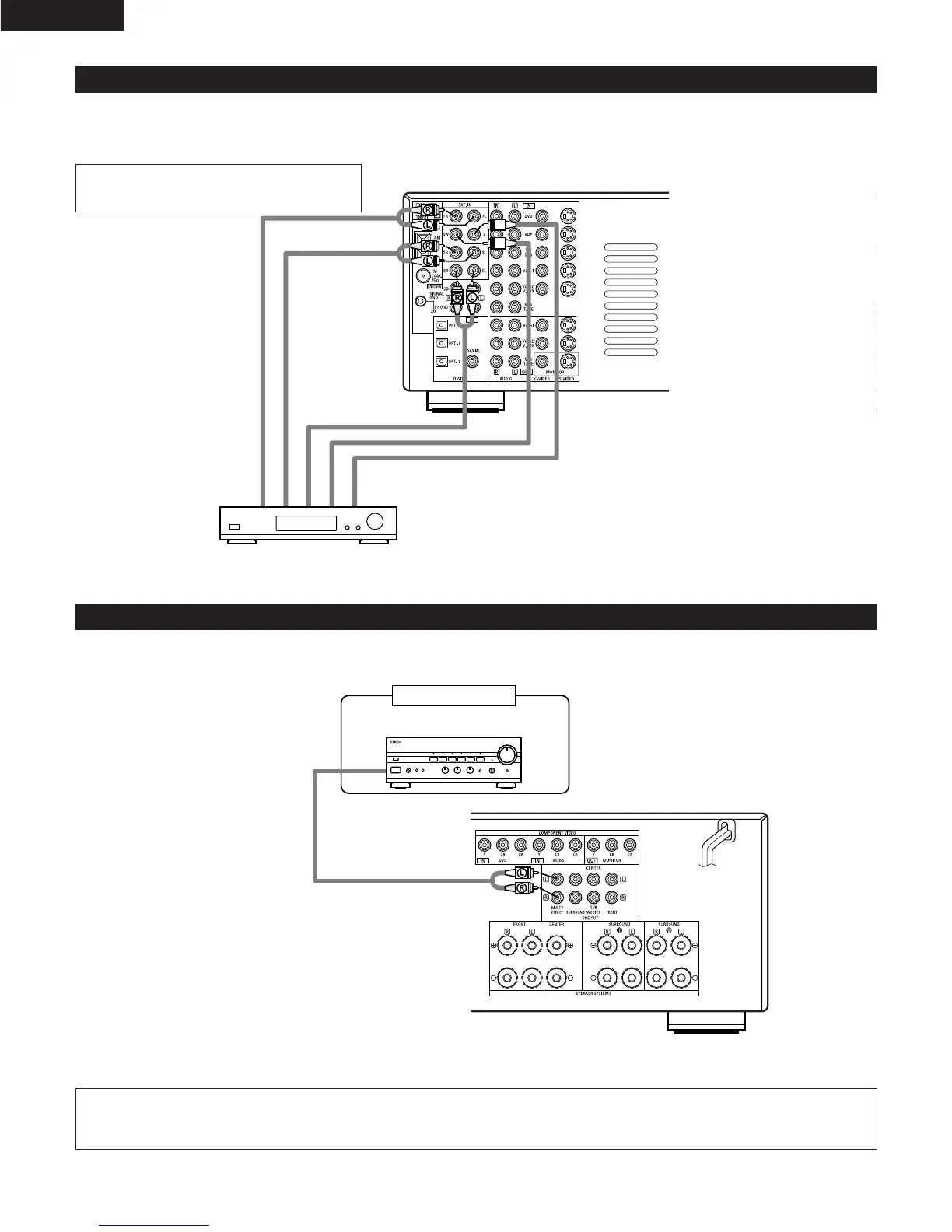

Connecting the external input (EXT. IN) jacks
• These input jacks are for inputting multi-channel audio signals in high definition MUSE 3-1 format, multi-channel audio signals from an MPEG
multi-channel decoder, or future multi-channel sound format, etc.
• When making connections, also refer to the operating instructions of the other components.
When connecting a high definition (MUSE 3-1 format)
component, use a separately sold mono/stereo cable if
the surround channel output is monaural.
Decoder with 8- or 6-channel
analog output
Front
Surround
Effect, etc.
Subwoofer
Center
*
For instructions on playback using the external input (EXT. IN) jacks, see page 43.
Connecting the MULTI SOURCE jacks
• If another pre-main (integrated) amplifier is connected, the multi-source jacks can be used to play a different program source in another room
at the same time. (See page 41.)
Another room
Integrated pre-main amplifier
*
For instructions on operations using the MULTI SOURCE jacks, see page 41 or page 43.
NOTE: EFFECT CH and MULTI cannot be used at the same time.
When making the setting, refer to “EXT. IN & MULTI” on page 26.

Denon AVR-3300 Specifications

Audio Specifications

rated output (front)	105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)	105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power	140 W x 2 ch (8 Ω)
input sensitivity / input impedance	200 mV / 47 kΩ
frequency response (analog)	10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)	102 dB (DIRECT mode)
distortion (analog)	0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)	2 V (at 0 dB playback)
total harmonic distortion (digital)	0.008% (1 kHz, at 0 dB)
S/N ratio (digital)	102 dB
dynamic range (digital)	96 dB
phono input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)	74 dB (A weighting, with 5 mV input)
distortion factor (phono)	0.03% (1 kHz, 3 V)

Video Specifications

input / output level and impedance (standard video)	1 Vp-p, 75 Ω
frequency response (standard video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)	Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)	Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)	5 Hz ~ 20 MHz — +0, –3 dB

Tuner Specifications

receiving range (FM)	87.50 MHz ~ 107.90 MHz
receiving range (AM)	520 kHz ~ 1710 kHz
usable sensitivity (FM)	1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)	1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)	80 dB
total harmonic distortion (MONO)	0.15% (at 1 kHz)

General Specifications

power supply (North America model)	AC 120 V, 60 Hz
power consumption (North America model)	5.6 A
maximum external dimensions	434 (W) x 171 (H) x 416 (D) mm
weight	15.0 kg (33 lbs 2 oz)
batteries (remote control)	R6P/AA Type (two batteries)
external dimensions (remote control)	70 (W) x 215 (H) x 24 (D) mm
weight (remote control)	200 g (Approx. 7 oz) (including batteries)
