18
ENGLISH
• Speaker system layout

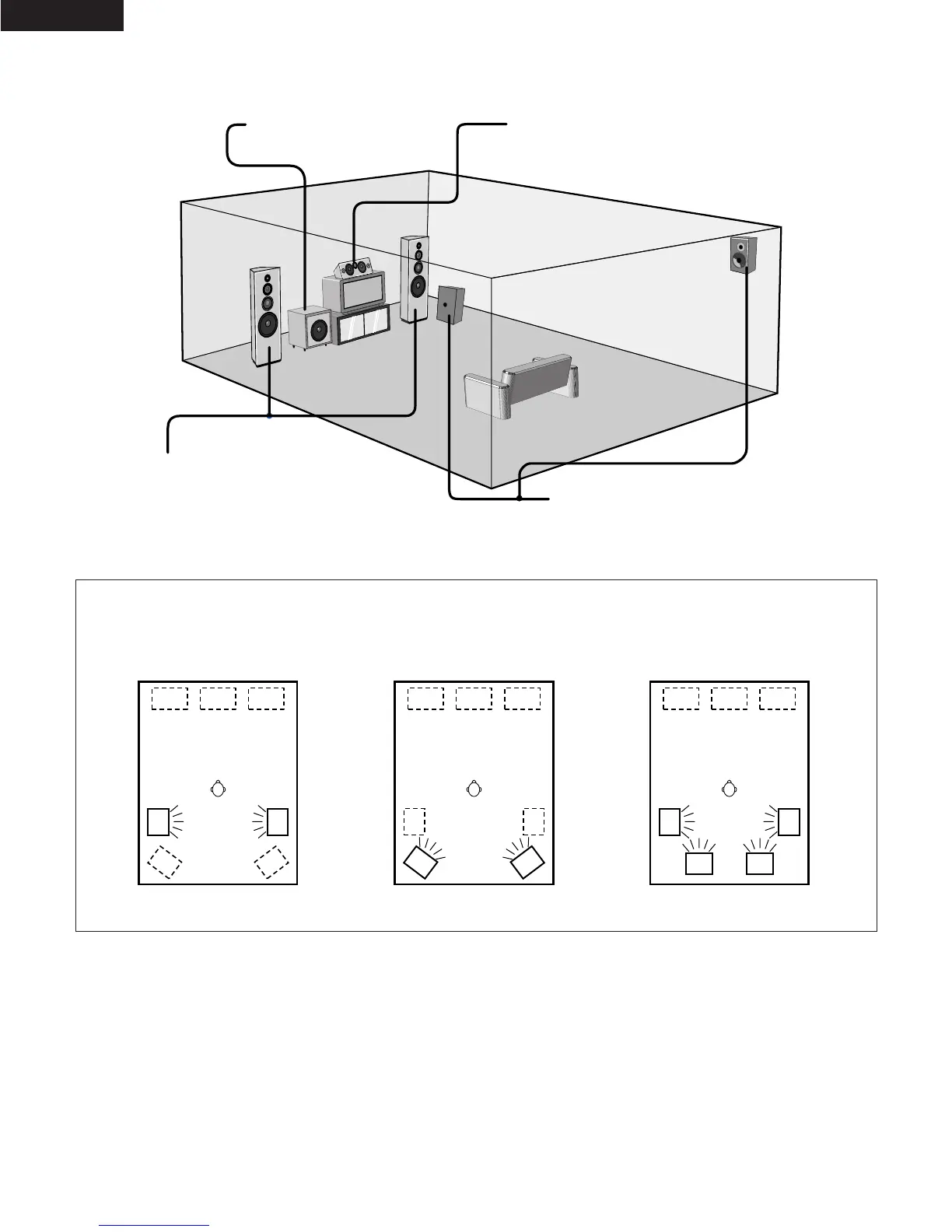

Basic system layout
• The following is an example of the basic layout for a system consisting of six speaker systems and a television monitor:
Subwoofer
Center speaker system
Front speaker systems
Set these at the sides of the TV or screen with
their front surfaces as flush with the front of the
screen as possible.
Surround speaker systems
With the AVR-3300 it is also possible to use the surround speaker selector function to choose the best layout for a variety of sources and surround
modes.
• Surround speaker selector function
This function uses either or both of two systems of surround speakers (A and B) to achieve the optimum sound field for different sources.
The speaker settings (on or off for A only, B only or A+B) are stored in the memory for the different surround modes and are recalled
automatically when that surround mode is set.
Using A only
Using B only
Using both A and B (A+B)
Multi surround speaker mode

Denon AVR-3300 Specifications

Audio Specifications

rated output (front)	105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)	105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power	140 W x 2 ch (8 Ω)
input sensitivity / input impedance	200 mV / 47 kΩ
frequency response (analog)	10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)	102 dB (DIRECT mode)
distortion (analog)	0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)	2 V (at 0 dB playback)
total harmonic distortion (digital)	0.008% (1 kHz, at 0 dB)
S/N ratio (digital)	102 dB
dynamic range (digital)	96 dB
phono input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)	74 dB (A weighting, with 5 mV input)
distortion factor (phono)	0.03% (1 kHz, 3 V)

Video Specifications

input / output level and impedance (standard video)	1 Vp-p, 75 Ω
frequency response (standard video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)	Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)	Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)	5 Hz ~ 20 MHz — +0, –3 dB

Tuner Specifications

receiving range (FM)	87.50 MHz ~ 107.90 MHz
receiving range (AM)	520 kHz ~ 1710 kHz
usable sensitivity (FM)	1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)	1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)	80 dB
total harmonic distortion (MONO)	0.15% (at 1 kHz)

General Specifications

power supply (North America model)	AC 120 V, 60 Hz
power consumption (North America model)	5.6 A
maximum external dimensions	434 (W) x 171 (H) x 416 (D) mm
weight	15.0 kg (33 lbs 2 oz)
batteries (remote control)	R6P/AA Type (two batteries)
external dimensions (remote control)	70 (W) x 215 (H) x 24 (D) mm
weight (remote control)	200 g (Approx. 7 oz) (including batteries)
