Denon AVR-3300 User Manual

40
ENGLISH

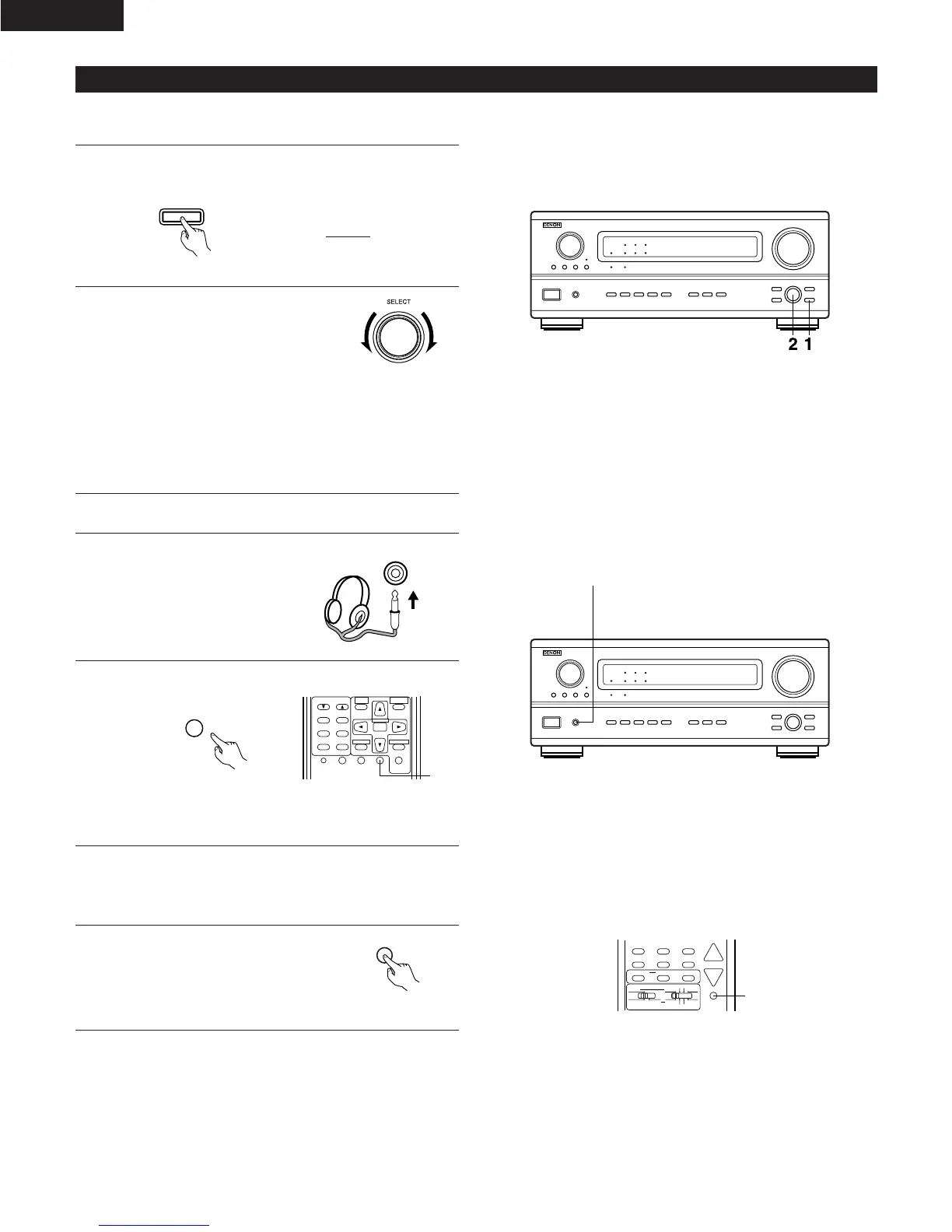

After starting playback
[1] Adjusting the sound quality (TONE)
The tone control function will not work in the direct mode.
1
The tone switches as follows each time the TONE CONTROL
button is pressed.
TONE
CONTROL
(Main unit)
2
With the name of the volume to be
adjusted selected, turn the SELECT
knob to adjust the level.
NOTE:
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
[3] Turning the sound off temporarily (MUTING)
1
Use this to turn off the audio output
temporarily.
Press the MUTING button.
*
Cancelling MUTING mode.
Press the MUTING button again.
MUTING
SPEAKER
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
1
BASS
1
TREBLE
• To increase the bass or treble: Turn the control clockwise.
(The bass or treble sound can be increased to up to +12 dB
in steps of 2 dB.)
• To decrease the bass or treble: Turn the control clockwise.
(The bass or treble sound can be decreased to up to –12 dB
in steps of 2 dB.)
[2] Listening over headphones
1
Connect the headphones to the
PHONES jack of the front panel.
1
PHONES
2
OUTPUT
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI OUTPUT DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
ENTER
2
• The output to the speaker and pre-out jacks is turned off
and no sound is produced from the speakers.
*
Caution: Switching off the power of the unit and the unit will
cancel the settings.
(Main unit)
(Remote control unit)
Press the OUTPUT button to
play the sound over the
headphones only.
1

Denon AVR-3300 Specifications

Audio Specifications

rated output (front)	105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)	105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power	140 W x 2 ch (8 Ω)
input sensitivity / input impedance	200 mV / 47 kΩ
frequency response (analog)	10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)	102 dB (DIRECT mode)
distortion (analog)	0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)	2 V (at 0 dB playback)
total harmonic distortion (digital)	0.008% (1 kHz, at 0 dB)
S/N ratio (digital)	102 dB
dynamic range (digital)	96 dB
phono input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)	74 dB (A weighting, with 5 mV input)
distortion factor (phono)	0.03% (1 kHz, 3 V)

Video Specifications

input / output level and impedance (standard video)	1 Vp-p, 75 Ω
frequency response (standard video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)	Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)	5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)	Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)	5 Hz ~ 20 MHz — +0, –3 dB

Tuner Specifications

receiving range (FM)	87.50 MHz ~ 107.90 MHz
receiving range (AM)	520 kHz ~ 1710 kHz
usable sensitivity (FM)	1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)	1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)	80 dB
total harmonic distortion (MONO)	0.15% (at 1 kHz)

General Specifications

power supply (North America model)	AC 120 V, 60 Hz
power consumption (North America model)	5.6 A
maximum external dimensions	434 (W) x 171 (H) x 416 (D) mm
weight	15.0 kg (33 lbs 2 oz)
batteries (remote control)	R6P/AA Type (two batteries)
external dimensions (remote control)	70 (W) x 215 (H) x 24 (D) mm
weight (remote control)	200 g (Approx. 7 oz) (including batteries)
