Page #9 background imageLoading...
Page #9 background image
IN
IN
OUT
IN IN OUT
SIGNAL
GND
DVD
EXT. INFREQ. STEP
VDP
TV
/
DBS
VCR
-
2/
V.AUX
COAXIAL
VCR
-
2/
V.AUX
MD/
TAPE
MD/
TAPE
VCR
-
1
VCR
-
1OPT.-1
OPT.-2
OPT.-3
FR
LOOP
ANT.
AM
SW
SR
ER
CD
PHONO
FL
C
SL
EL
DVD TV/DBS MONITOR
YYC
BCB CRCRYCB CR
COMPONENT VIDEO
SPEAKER SYSTEMS
AUDIO
DIGITAL
C-VIDEO
MONITOR
S-VIDEO
PRE OUT
L L
R
R L
R L
R L
R L
R L
R
FM
COAX.
75
B
R L
A
FRONT
FRONT CENTER SURROUND SURROUND
SUB
WOOFER
CENTER
SURROUNDEFFECT
MULTI/
ANTENNA
9kHz
10kHz
VOLTAGE SELECTOR
115V 230V
AC OUTLET
SAME AS LINE-VOLTAGE
SWITCHED 100W MAX.
IN
S-VIDEO
OUT
S-VIDEO
OUT
S-VIDEO
OUT IN
S-VIDEO
OUT IN
S-VIDEO
9
ENGLISH

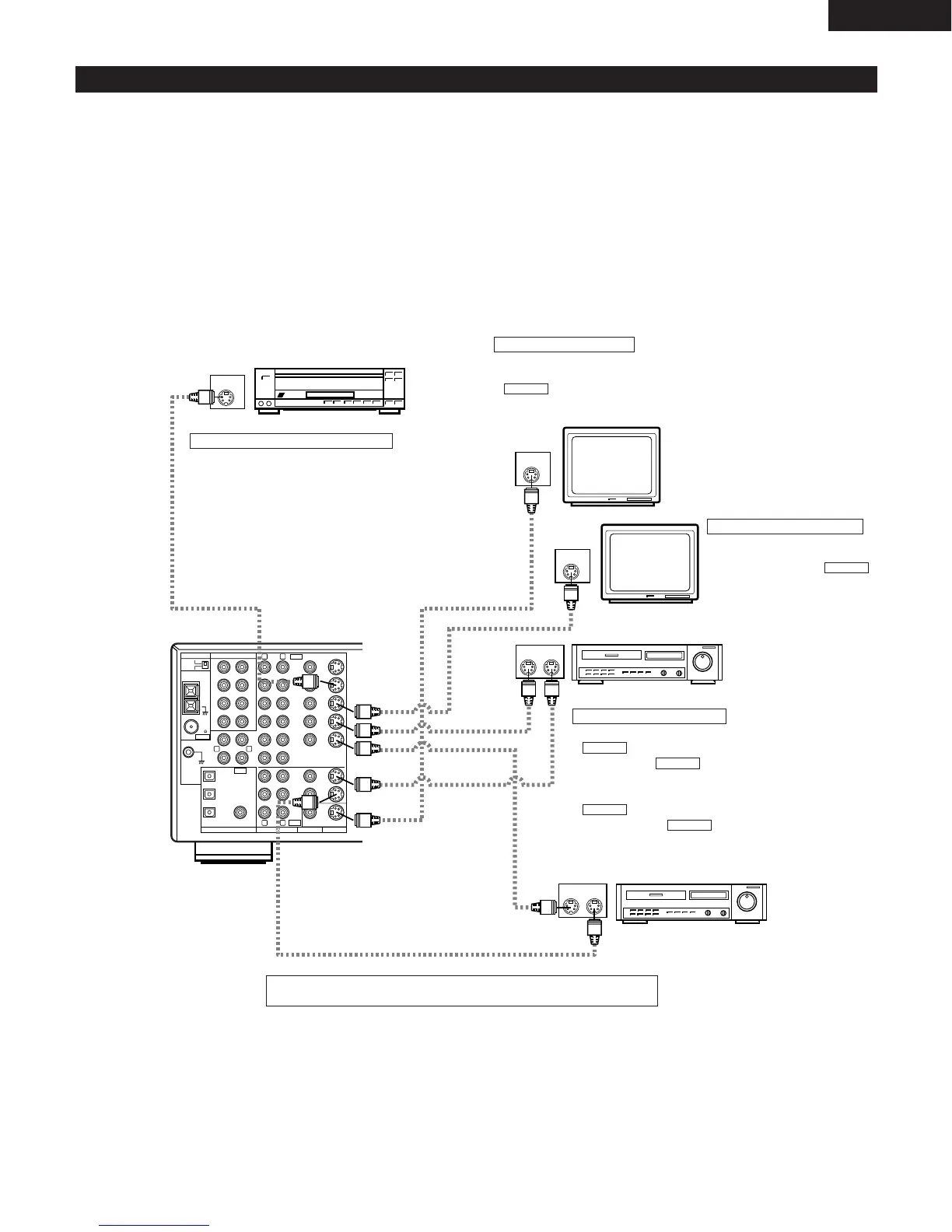

Connecting a video component equipped with S-Video jacks
When making connections, also refer to the operating instructions of the other components.
A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
Precaution when using S-jacks
This unit’s S-jacks (input and output) and video pin jacks (input and output) have independent circuit structures, so that video signals input from
the S-jacks are only output from the S-jack outputs and video signals input from the pin jacks are only output from the pin jack outputs.
When connecting this unit with equipment that is equipped with S-jacks, keep the above point in mind and make connections according to the
equipment’s instruction manuals.
LD player, CDV player, etc.
Connecting a video disc player (VDP)
VDP
Connect the video disc player’s S-Video output jack to the S-
VIDEO VDP IN jack using an S-Video connection cord.
A DVD player can be connected to the DVD jacks in the same
way.
It is also possible to connect a video disc player, DVD player,
video camcorder, game machine, etc., to the VCR-2/V.AUX
jacks.
Connecting a monitor TV
MONITOR OUT
Connect the TV’s or DBS tuner’s S video input (S-VIDEO INPUT) to the
MONITOR OUT jack using a S jack connection cord.
S-VIDEO
Monitor TV
Connecting a TV/DBS tuner
Connect the TV’s or DBS tuner’s
S video output jack (S-VIDEO
OUTPUT) to the
TV/DBS IN jack using an S jack
connection cord.
S-VIDEO
TV or satellite broadcast tuner
Video deck 1
Connecting the video decks
Connect the video deck’s S output jack (S-OUT) to the
VCR-1 IN jack and the video deck’s S input jack
(S-IN) to the VCR-1 OUT jack using S jack
connection cords.
Connect the video deck’s S output jack (S-OUT) to the
VCR-2/V.AUX IN jack and the video deck’s S input
jack (S-IN) to the VCR-2/V.AUX OUT jack using S
jack connection cords.
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
Video deck 2
Connect the components’ audio inputs and outputs as described on page 7.

Other manuals for Denon AVR-3300

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Denon AVR-3300 and is the answer not in the manual?

Denon AVR-3300 Specifications

Audio Specifications IconAudio Specifications
rated output (front)105 W + 105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
rated output (center)105 W (8 Ω, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
dynamic power140 W x 2 ch (8 Ω)
input sensitivity / input impedance200 mV / 47 kΩ
frequency response (analog)10 Hz ~ 50 kHz: +0, –3 dB (DIRECT mode)
S/N (analog)102 dB (DIRECT mode)
distortion (analog)0.01% (20 Hz ~ 20 kHz) (DIRECT mode)
D/A output (rated)2 V (at 0 dB playback)
total harmonic distortion (digital)0.008% (1 kHz, at 0 dB)
S/N ratio (digital)102 dB
dynamic range (digital)96 dB
phono input sensitivity2.5 mV
RIAA deviation±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio (phono)74 dB (A weighting, with 5 mV input)
distortion factor (phono)0.03% (1 kHz, 3 V)
Video Specifications IconVideo Specifications
input / output level and impedance (standard video)1 Vp-p, 75 Ω
frequency response (standard video)5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (S-video)Y signal — 1 Vp-p, 75 Ω; C signal — 0.286 Vp-p, 75 Ω
frequency response (S-video)5 Hz ~ 10 MHz — +0, –3 dB
input / output level and impedance (color component video)Y signal — 1 Vp-p, 75 Ω; Cb/Cr signal — 0.7 Vp-p, 75 Ω
frequency response (color component video)5 Hz ~ 20 MHz — +0, –3 dB
Tuner Specifications IconTuner Specifications
receiving range (FM)87.50 MHz ~ 107.90 MHz
receiving range (AM)520 kHz ~ 1710 kHz
usable sensitivity (FM)1.0 µV (11.2 dBf)
50 dB quieting sensitivity (MONO)1.6 µV (15.3 dBf)
S/N (IHF-A) (MONO)80 dB
total harmonic distortion (MONO)0.15% (at 1 kHz)
General Specifications IconGeneral Specifications
power supply (North America model)AC 120 V, 60 Hz
power consumption (North America model)5.6 A
maximum external dimensions434 (W) x 171 (H) x 416 (D) mm
weight15.0 kg (33 lbs 2 oz)
batteries (remote control)R6P/AA Type (two batteries)
external dimensions (remote control)70 (W) x 215 (H) x 24 (D) mm
weight (remote control)200 g (Approx. 7 oz) (including batteries)
