100
ENGLISH

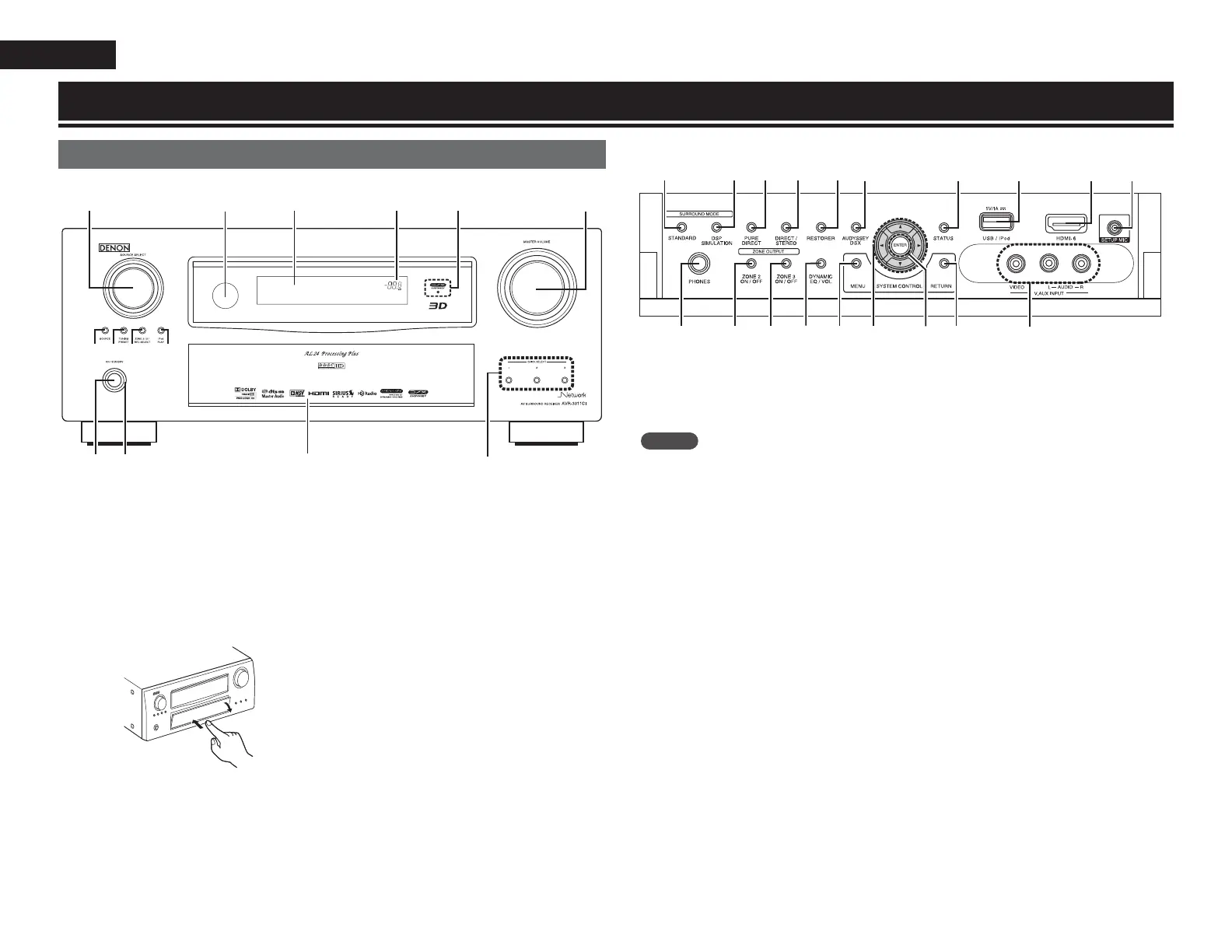

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
qw e
tioQ0
Q3 Q4Q2Q1
uy
r
q
Power operation button
(ON/STANDBY) ······································ (6, 11)
Turns power to this unit on and off (standby).
w Power indicator ·········································· (11)
e Door
When you are using buttons and/or terminals
behind the door, press the bottom of the door
to open it. When not using buttons and/or
terminals behind the door, close it. Be careful
not to catch your fingers when closing the door.
r QUICK SELECT buttons ······················· (56, 62)
t MASTER VOLUME control knob ··············· (24)
y AUDYSSEY DSX™ indicator ····················· (77)
u Master volume indicator
i Display ······················································· (101)
o Remote control sensor ···························· (104)
Q0 SOURCE SELECT knob ························ (24, 62)
Q1 SOURCE button ·········································· (24)
Q2 TUNING PRESET button ······················ (29, 31)
Q3 ZONE2/3 / REC SELECT button ·········· (56, 62)
Q4 iPod PLAY button ······································· (28)
Part names and functions
GWith the door openH
Q5
Q6
Q7
Q8
Q9 W2
W1W0
W4
W8
E3
W6W7
E1E2
W9
E0
W5
Q5 Headphones jack
When the headphones are plugged into this
jack, audio will no longer be output from the
connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume
level excessively when using headphones.
Q6 ZONE2 ON/OFF button ······························ (62)
Q7 ZONE3 ON/OFF button ······························ (62)
Q8 DYNAMIC EQ
®
/DYNAMIC VOLUME™
button (DYNAMIC EQ/VOL) ······················ (76)
Q9 MENU button ·············································· (67)
W0 Cursor buttons (uio p) ·················· (64 – 67)
W1 ENTER button ····································· (64 – 67)
W2 RETURN button ·································· (64 – 67)
W3 V.AUX INPUT connectors ·························· (18)
W4 SETUP MIC jack ······································ (8, 52)
W5 HDMI IN connector ····································· (15)
W6 USB/iPod port ············································ (19)
W7 STATUS button ·········································· (90)
W8 AUDYSSEY DSX button ···························· (77)
W9 RESTORER button ······································ (78)
E0 DIRECT/STEREO button ···························· (47)
E1 PURE DIRECT button ································· (47)
E2 DSP SIMULATION button ·························· (47)
E3 STANDARD button ······························· (45, 46)
