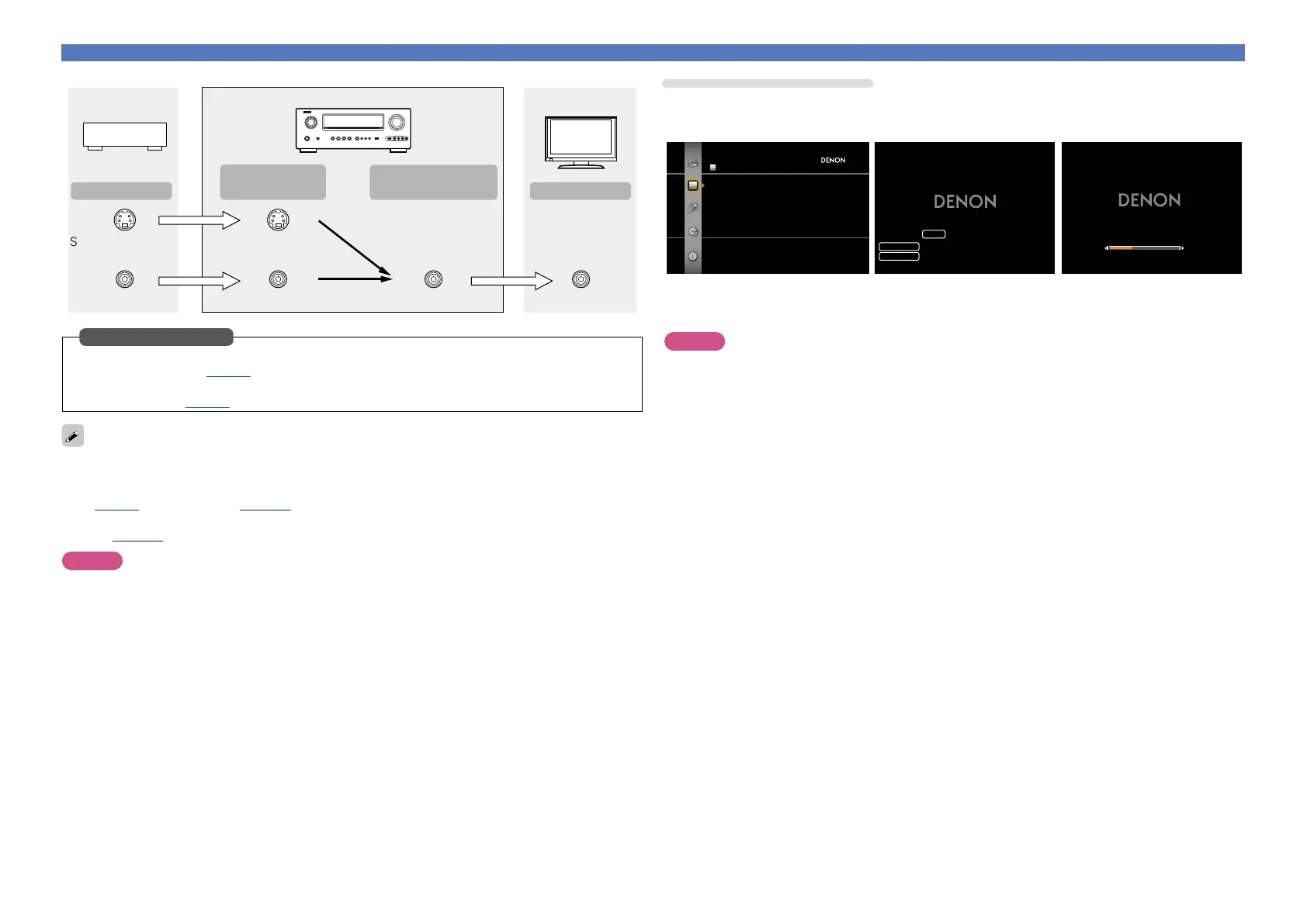

GFlow of video signals for ZONE2H
S-Video connector
Video connector
Monitor (TV)
S-Video
connector
Video connector Video connector Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
•Set when not using the video conversion function.
“Video Convert” (vpage93)
•Set when changing the resolution of the video signal.
“Resolution” (vpage93)
in Set as Necessary
•The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60
formats.
•The resolution of the video signal output from the HDMI connector of this unit is set in “Resolution”
(vpage93) in the menu (vpage141).
•Resolutions of HDMI-compatible TVs can be checked at “HDMI Information” – “Monitor 1” or “Monitor
2” (vpage120).
NOTE
•HDMI signals cannot be converted into analog signals.
•When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
•480p/576p/1080i/720p/1080p component video input signals cannot be converted into Video format.
Examples of screen display
•Menu screen •Status display screen
When the input source is
switched.
When the volume is adjusted.
AUDIO/VIDEO ADJUST
Audio Adjust
Picture Adjust
Adjust various audio and video parameters
AUTO
DTS SURROUND
BD
SURROUND
SOURCE
-52.0dB
Status display: The operating status appears briefly on the screen
when the input source is switched or the volume is
changed.
NOTE
•The status display screen cannot be displayed at a computer’s resolution (e.g. VGA) or while certain 3D
video contents is being played.
•When the menu is operated on a computer’s resolution (e.g. VGA) or during playback of certain 3D video
content, the playback image switches to the menu screen image.
