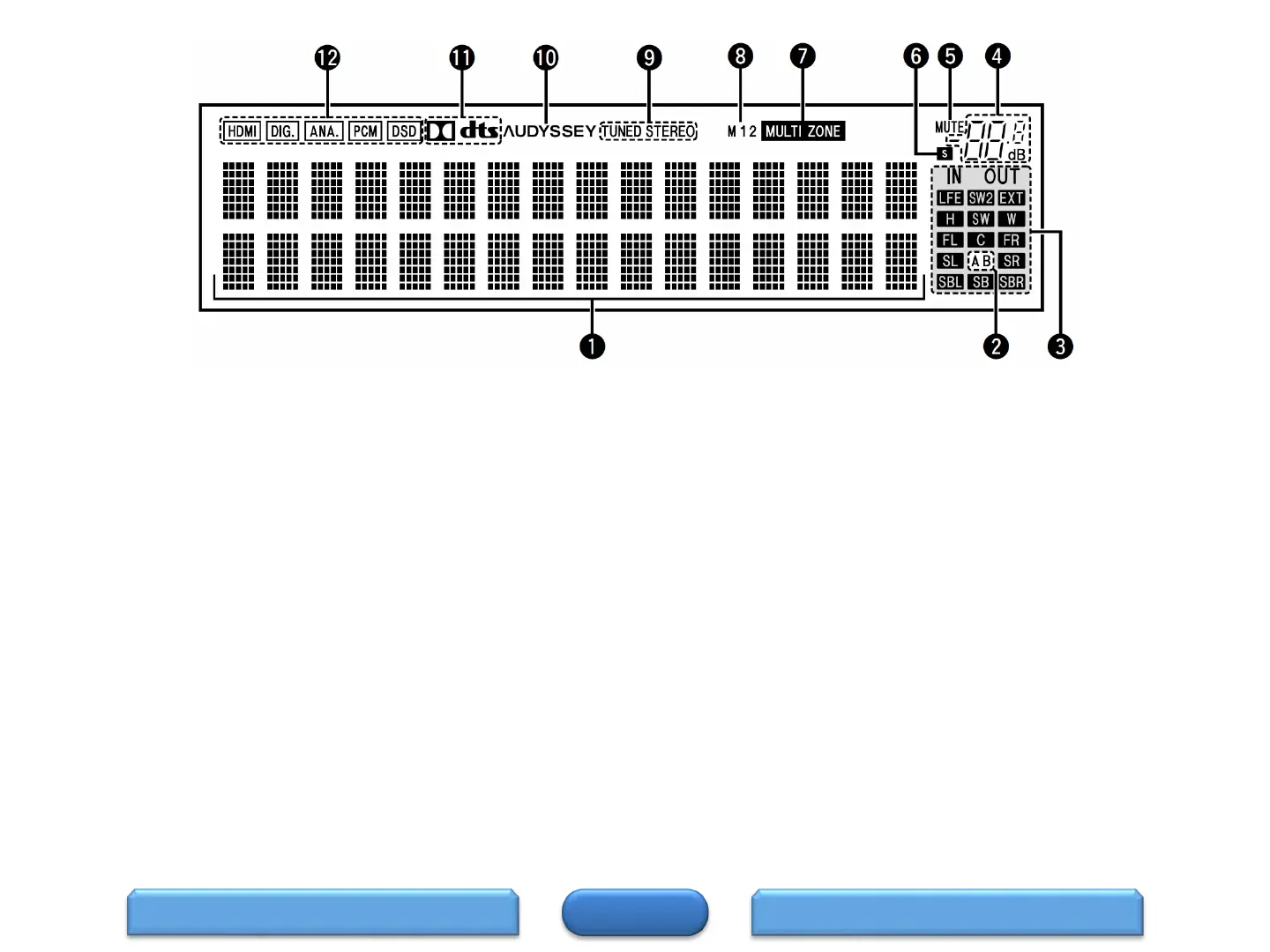

Information display
The input source name, sound mode, setting values and other
information are displayed here.
Front speaker indicator
This lights according to the setting of the front A and B speakers.
Output signal channel indicators
Lights when audio signals are being output from the speakers.
Master volume indicator
MUTE indicator
This lights when the mute mode is selected.
Sleep timer indicator
This lights when the sleep mode is selected.
MULTI ZONE indicators
This lights up when ZONE2, ZONE3 (separate room) power is
turned on.
Monitor output indicator
These light according to the HDMI monitor output setting.
When set to “Auto (Dual)”, the indicators light according to
connection status.
Tuner reception mode indicators
These light according to the reception conditions when the
input source is set to “HD Radio”.
STEREO : In FM mode, this lights up when receiving analog
stereo broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
Audyssey® indicator
This indicator lights when the “MultEQ® XT”, “Dynamic EQ”,
or “Dynamic Volume” setting is set to “On”.
Decoder indicator
These light when Dolby or DTS signals are input or when the
Dolby or DTS decoder is running.
Input mode indicators
Set the audio input modes for the different input sources
