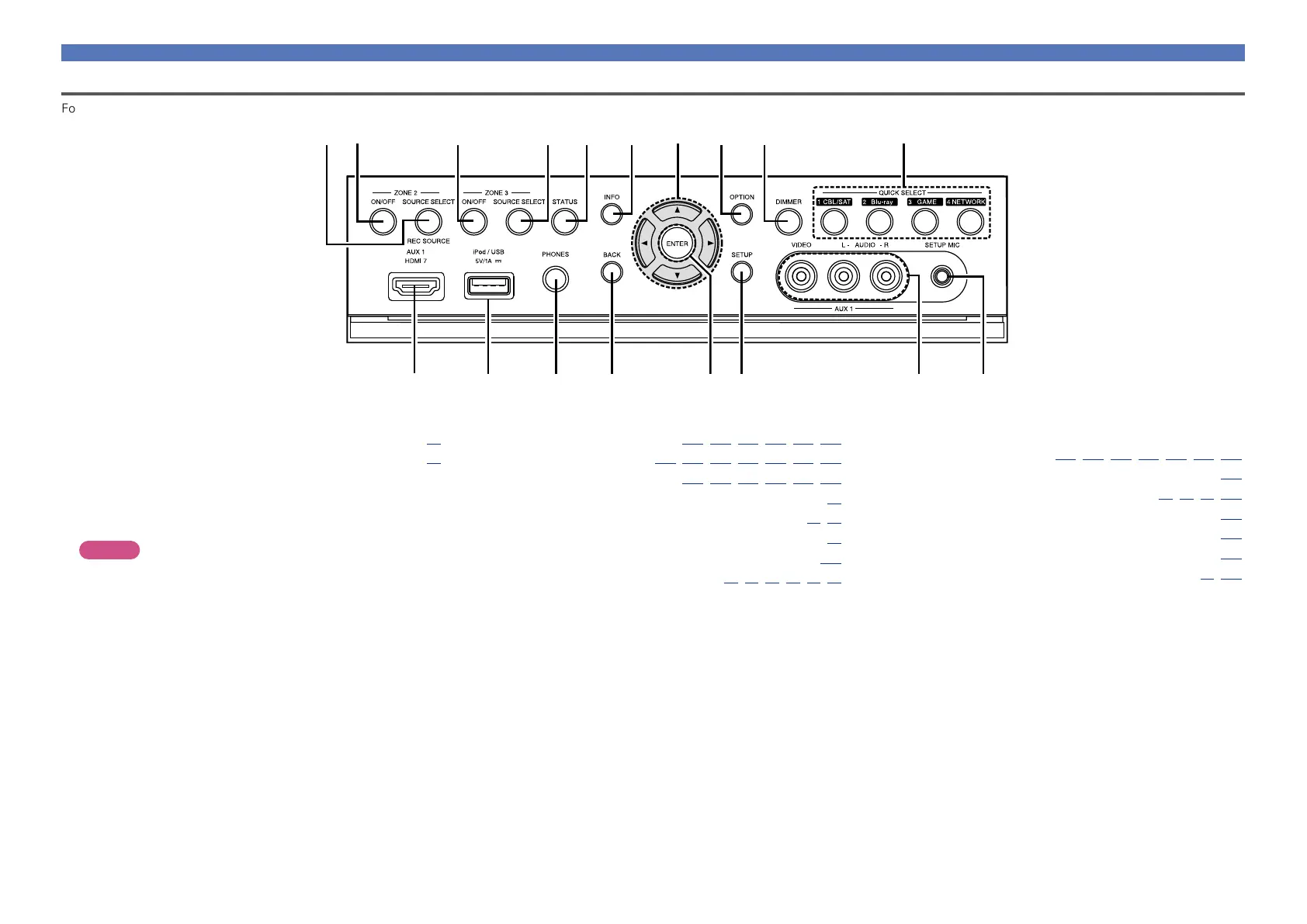

Front panel
With the door open
For buttons not explained here, see the page indicated in parentheses ( ).
Q4Q5Q6Q8 Q3 Q1 Q0
Q2
oQ7
u
iw te r y
q
q AUX-HDMI connector ····························································· (11)
w iPod/USB port ········································································· (21)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers or from the PRE
OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q2 Cursor buttons
(uio p) ································· (109,112,119,124,129,135,139)
Q3 Information button (INFO) ···················································· (142)
Q4 STATUS button ··················································· (40, 55, 59, 142)
Q5 ZONE3 SOURCE SELECT ······················································ (105)
Q6 ZONE3 ON/OFF button ························································· (105)
Q7 ZONE2 ON/OFF button ························································· (105)
Q8 ZONE2 SOURCE SELECT / REC SOURCE button ········· (99, 105)
r BACK button ·································· (112,119,124,129,135,139)
t ENTER button ······················· (109, 112, 119, 124, 129, 135, 139)
y SETUP button ································ (112, 119, 124, 129, 135, 139)
u AUX1 INPUT connectors ························································ (19)
i SETUP MIC jack ································································· (31, 92)
o QUICK SELECT buttons ·························································· (98)
Q0 DIMMER button ····································································· (141)
Q1 OPTION button ·········································· (39,43,46,55,60,62)
