4
AVR-3803/1083/AVC-3570

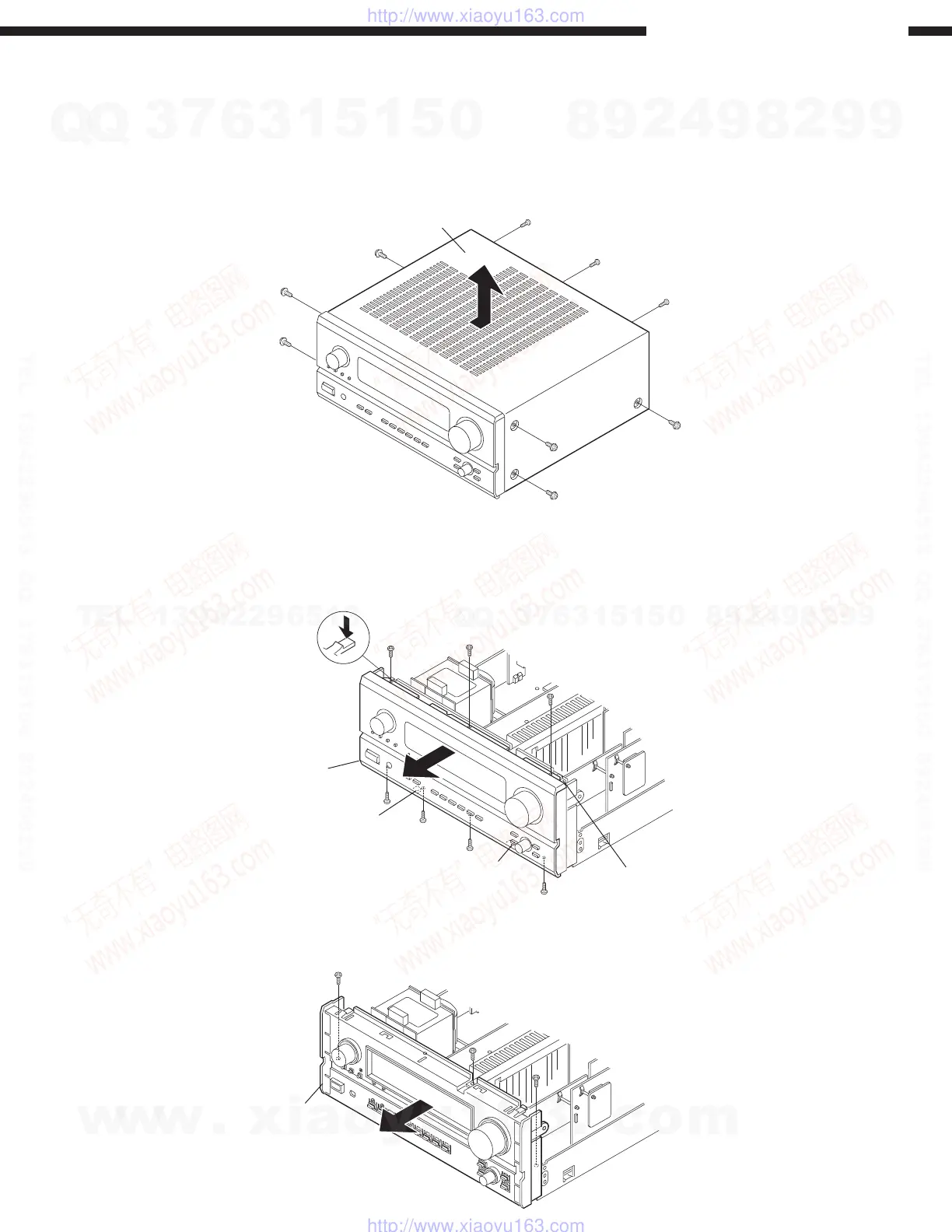

DISASSEMBLY
(Follow the procedure below in reverse order
when reassembling)
1. Top Cover
Remove 3 screws on the rear and 6 screws on both
sides to detach the Top Cover as shown in the arrow
direction.
2. Front Panel
(1) Remove 7 screws from the top and bottom edges of
the Front Panel.
(2) Release 4 top and bottom Hooks, then detach the
Front Panel as shown in the arrow direction.
Top Cover
3. Inner Panel
Pull out the Inner Panel in the arrow direction after
removing 3 screws.
Hook
Hook
Hook
Front Panel
各部のはずしかた
(組み立てるときは、逆の順序でおこなってください。
1. Top Cover
後面からねじ3本、両側からねじ6本をはずしTop Cover
を矢印の方向に取りはずします。
2. Front Panel
(1) Front Panel の上下面からねじ 7 本をはずします。
(2) Front Panel を上下で止めている 4 個の Hook をはず
し、Front Panel を矢印の方向に取りはずします。
3. Inner Panel
ねじ3本をはずし、Inner Panelを矢印の方向に取りはず
します。
Inner Panel
Hook
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Table of Contents

Other manuals for Denon AVR-3803

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Denon AVR-3803 and is the answer not in the manual?

Denon AVR-3803 Specifications

General IconGeneral
Channels7.1
Dolby DigitalYes
DTSYes
Component Video Inputs3
S-Video Inputs7
Digital Audio Inputs5 (3 Optical, 2 Coaxial)
Analog Audio Inputs9
TypeAV Receiver
THD0.05%
Input Sensitivity200 mV
Signal to Noise Ratio100 dB
Frequency Response10 Hz - 100 kHz
Digital Inputs5 (3 Optical, 2 Coaxial)
Weight33.1 lbs
Amplifier Channels7
Signal-to-Noise Ratio100 dB
Surround Sound ModesDolby Digital, DTS, Dolby Pro Logic II
Power Output110W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Video InputsS-Video, Component
Input Sensitivity/Impedance200 mV / 47 kOhm
Video Inputs/OutputsS-Video, Component
Dimensions (W x H x D)17.1 x 6.6 x 16.9 inches
