Denon AVR-3803 Service Manual

6
AVR-3803/1083/AVC-3570
7. Component-Video/S-Video / C-video /
Audio in / Ext-in VR / Digital/Remote I/O
/ AM FM Tuner Unit

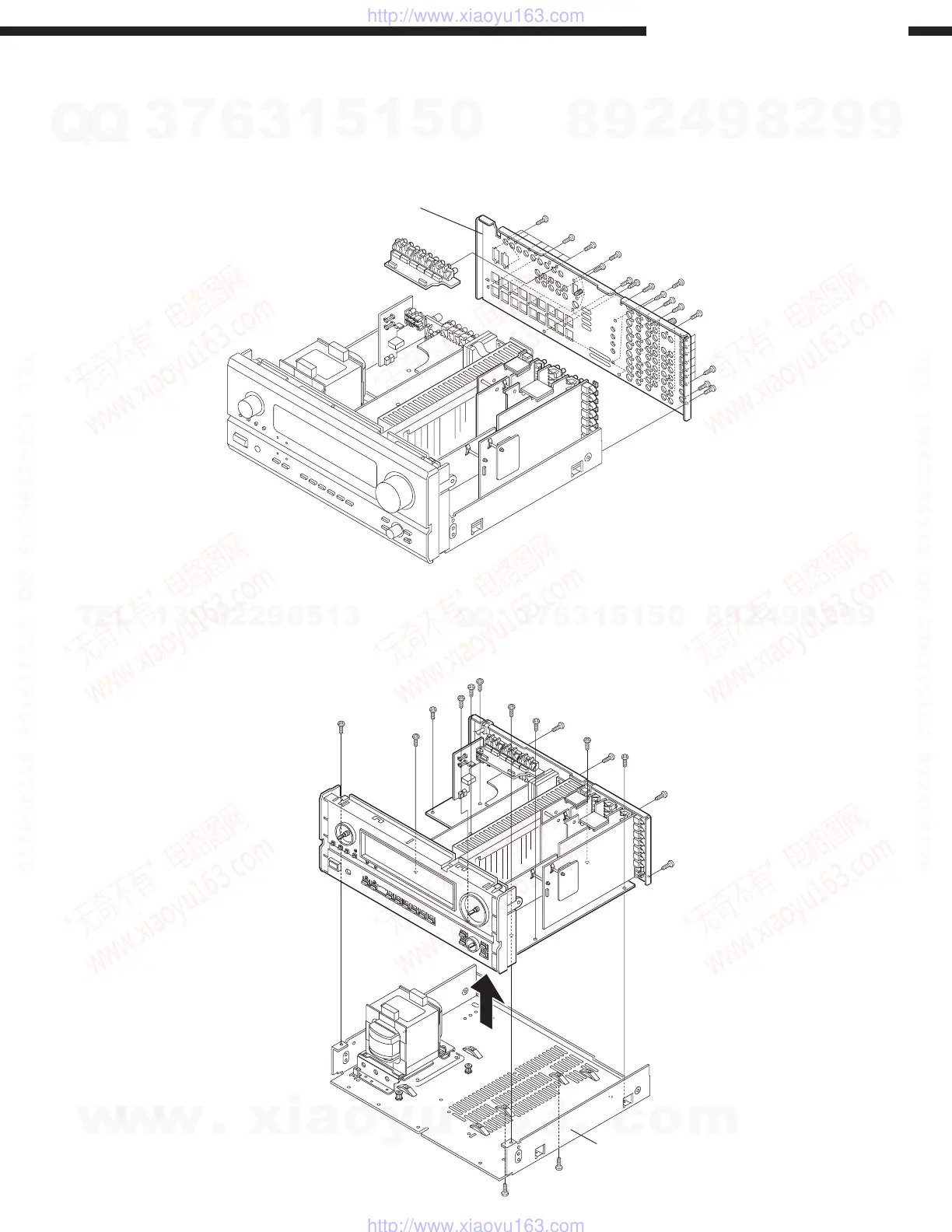

(1) Remove 60 screws to detach the Rear Panel.
(2) Take off the objective P.W.B. upward.
8. How to Check Power / Control Unit with
Power-on
(1) Remove 17 screws fixing to the Chassis.
(2) Pull up the Unit to separate from the Chassis.
7. Component-Video/S-Video / C-video /
Audio in / Ext-in VR / Digital/Remote I/O
(1) ねじ 61 本をはずし、Rear Panel を取りはずします。
(2) 目的の P.W.B. を上方向へ取りはずします。
8. Powr/Control Unit の通電時チェック方法
(1) 本体を Chassis へ取り付けているねじ 17 本をはずし
ます。
(2) 本体を上方向へ Chassis から分離させます。
Rear Panel
Chassis
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-3803 Specifications

General

Channels	7.1
Dolby Digital	Yes
DTS	Yes
Component Video Inputs	3
S-Video Inputs	7
Digital Audio Inputs	5 (3 Optical, 2 Coaxial)
Analog Audio Inputs	9
Type	AV Receiver
THD	0.05%
Input Sensitivity	200 mV
Signal to Noise Ratio	100 dB
Frequency Response	10 Hz - 100 kHz
Digital Inputs	5 (3 Optical, 2 Coaxial)
Weight	33.1 lbs
Amplifier Channels	7
Signal-to-Noise Ratio	100 dB
Surround Sound Modes	Dolby Digital, DTS, Dolby Pro Logic II
Power Output	110W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Video Inputs	S-Video, Component
Input Sensitivity/Impedance	200 mV / 47 kOhm
Video Inputs/Outputs	S-Video, Component
Dimensions (W x H x D)	17.1 x 6.6 x 16.9 inches
