Denon AVR-3805

1
2
3
45
6
7
8
A
B
C
D
E

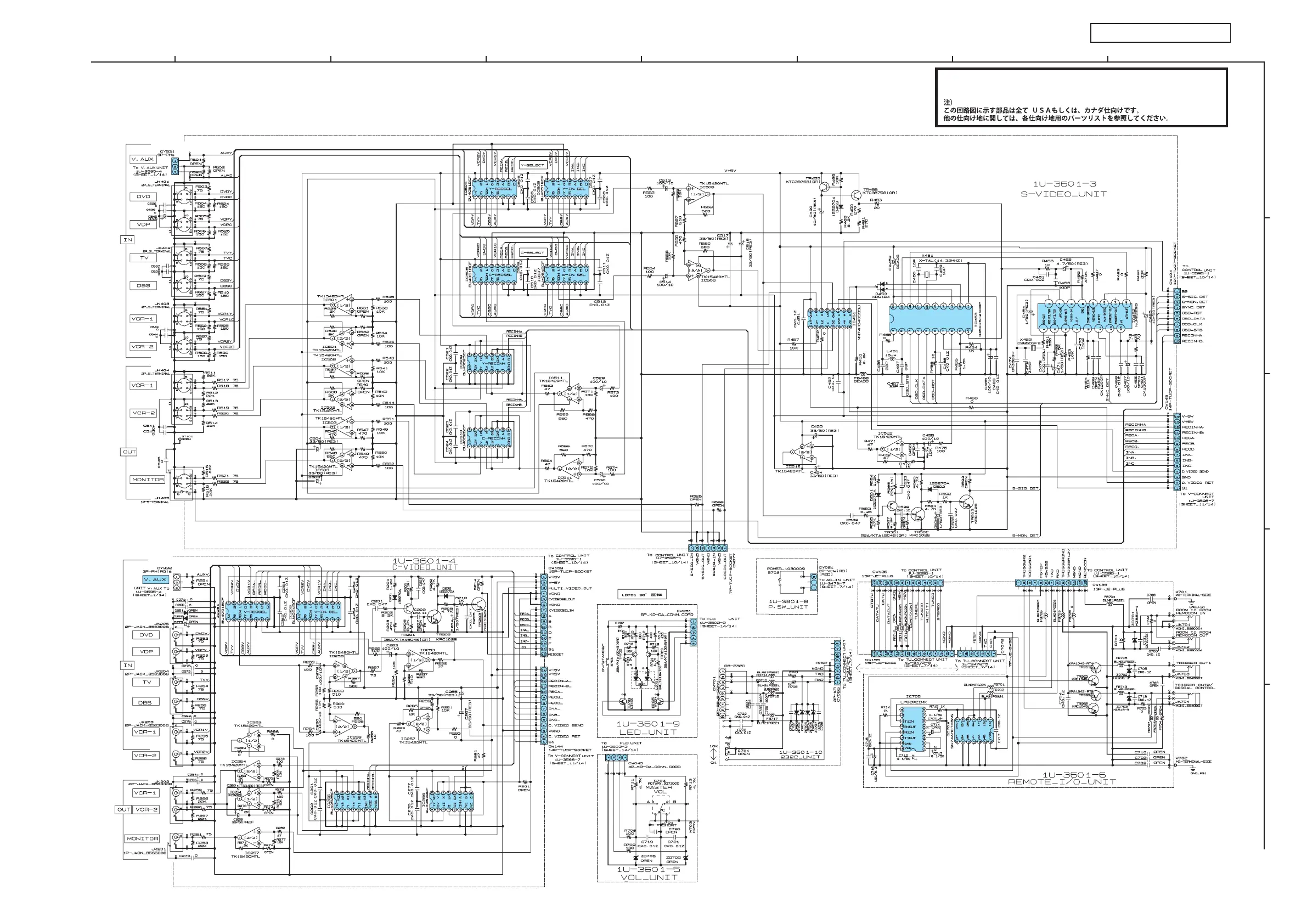

SCHEMATIC DIAGRAMS (12/14) ／ 配線図 (12/15)
AVR-3805 / AVC-3890
SCHEMATIC DIAGRAMS (12/14) ／ 配線図 (12/15)
S-VIDEO UNIT / C-VIDEO UNIT / VOL UNIT /
REMOTE I/O UNIT / P. SW UNIT / LED UNIT /
232C UNIT
CAUTION:
The parts shown in this schematic diagram are all for the U.S.A. or Canada region.
About other regions, please refer to each parts list.
