AVR-3806 / AVC-3920

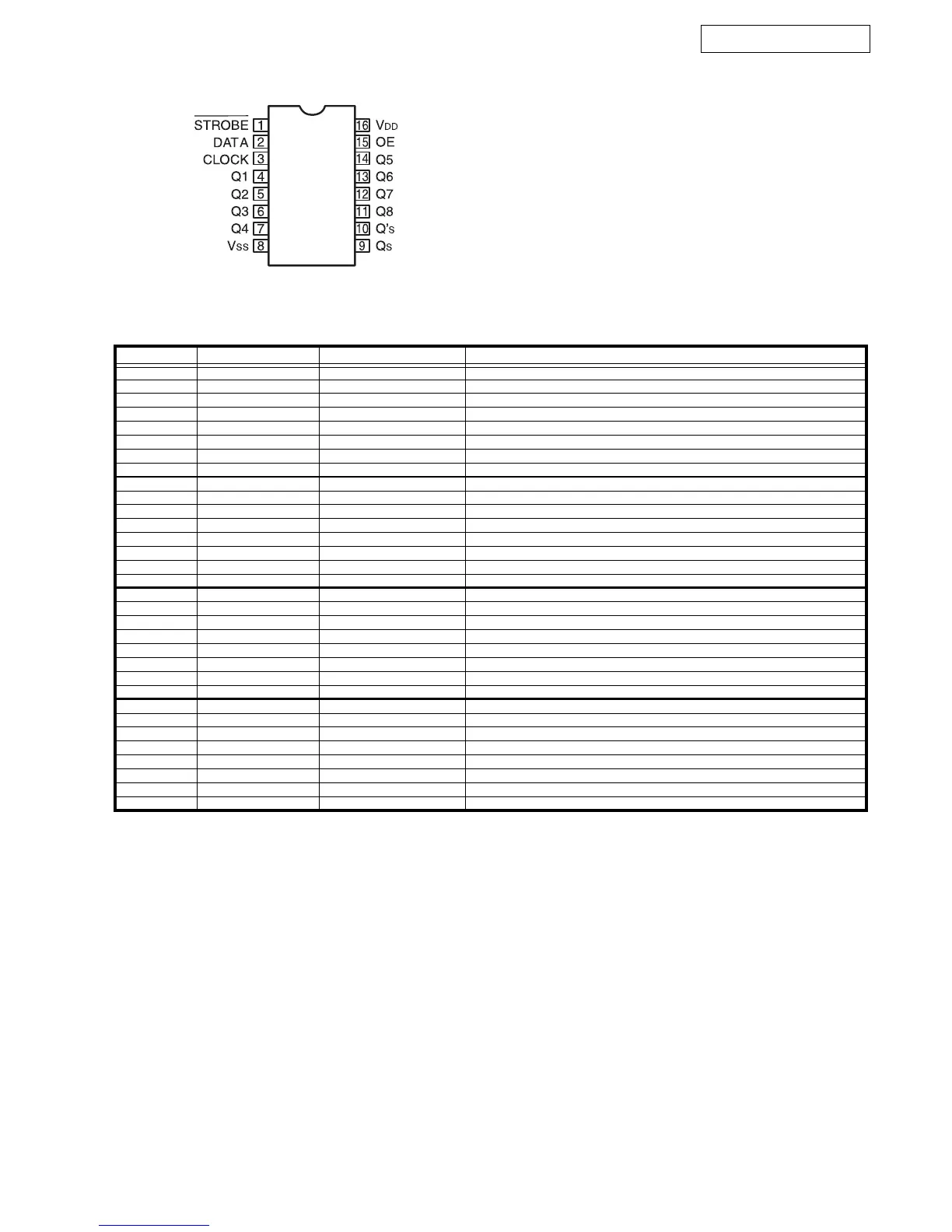

BU4094BCFV-E2 (AV : IC708,709,710)
BU4094BCFV-E2 Terminal Function
bit Port Symbol Function
IC708 EXP1 INA Videoinputselect
EXP2 INB Videoinputselect
EXP3 INC Videoinputselect
EXP4 Z1ININH Videoinputselect
EXP5 RECA VideoRECOUTselect
EXP6 RECB VideoRECOUTselect
EXP7 RECC VideoRECOUTselect
EXP8 RECINH VideoRECOUTselect
IC709 EXP9 VCR1INH VideoRECOUTselect(VCR1INH)
EXP10 VCR2INH VideoRECOUTselect(VCR2INH)
EXP11 Z2INH ZONE2videooutputselect（Z2INH）
EXP12 Z1VMONIA COMPOSITMONITOROUTvideoselect
EXP13 Z1VMONIB COMPOSITMONITOROUTvideoselect
EXP14 Z1SMONIA SMONITOROUTvideoselect
EXP15 Z1SMONIB SMONITOROUTvideoselect
EXP16 S2OUT S/COMPOSITselectcontrolpin
IC710 EXP17 S1IN S/COMPOSITselectcontrolpin
EXP18 Z1VOSD MAINSOSD/OSDPASSselectcontrolpin
EXP19 Z1SOSD MAINSOSD/OSDPASSselectcontrolpin
EXP20 (Y/CSEL) Notused
EXP21 P.SAVE COMPONENT → CONVERTdisablecontrolpin
EXP22 MONIDIS COMPONENTMONITORdisablecontrolpin
EXP23 NIGHTLED NIGHTLEDcontrolpin
EXP24 NC NC
IC711 EXP25 LINEA DconnectorLINEcontrolpin
EXP26 LINEB DconnectorLINEcontrolpin
EXP27 INHLINE DconnectorLINEcontrolpin
EXP28 ASPECTH ASPECTratiolevelcontrolpin
EXP29 ASPECTL ASPECTratiolevelcontrolpin
EXP30 NC NC
EXP31 NC NC
EXP32 NC NC
