Multi-Zone

Getting Started Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting

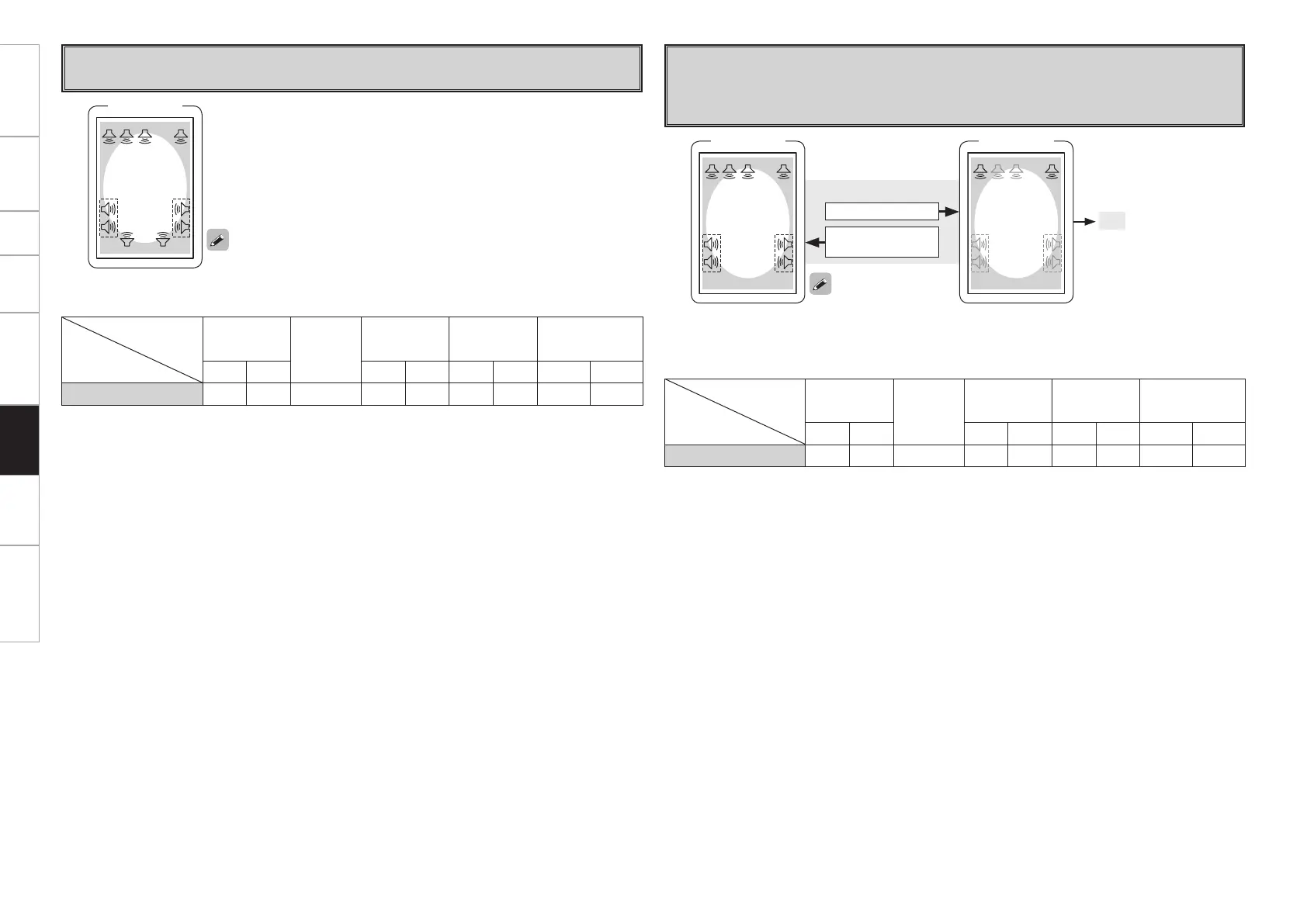

Speaker terminal
Amp Assign mode
FRONT
CENTER
SURR-A SURR-B
SURR. BACK /
AMP ASSIGN
R L R L R L R L
7.1CH FR FL C SR-A SL-A SR-B SL-B SBR SBL
SBL SBR
FL
SW C FR
B
A
SL
B
A
SR
Main zone
7.1ch
Setting 2 :
F 7.1-channel playback
Both A and B can be installed for SR and SL.
n Amp Assign mode setting and speakers connected to the various speaker
terminals
Setting 3 : With this setting it is possible to switch between the following two playback modes.
F 5.1-channel playback
F 2-channel playback
Switching ················Surround Mode switching
Surround Mode
DIRECT / STEREO
Multi Channel /
Surround
FL
SW C FR
B
A
SL
B
A
SR
Main zone
5.1ch
FL
SW C FR
B
A
SL
B
A
SR
Main zone
2ch
2ch
n Amp Assign mode setting and speakers connected to the various speaker
terminals
Speaker terminal
Amp Assign mode
FRONT
CENTER
SURR-A SURR-B
SURR. BACK /
AMP ASSIGN
R L R L R L R L
2CH FR FL C SR-A SL-A SR-B SL-B FR FL
Amp Assign mode:
Both A and B can be
installed for SR and SL.
