Denon AVR-4308CI Service Manual

58
AVR-4308CI
M3062LFGPGP (DI: IC951)

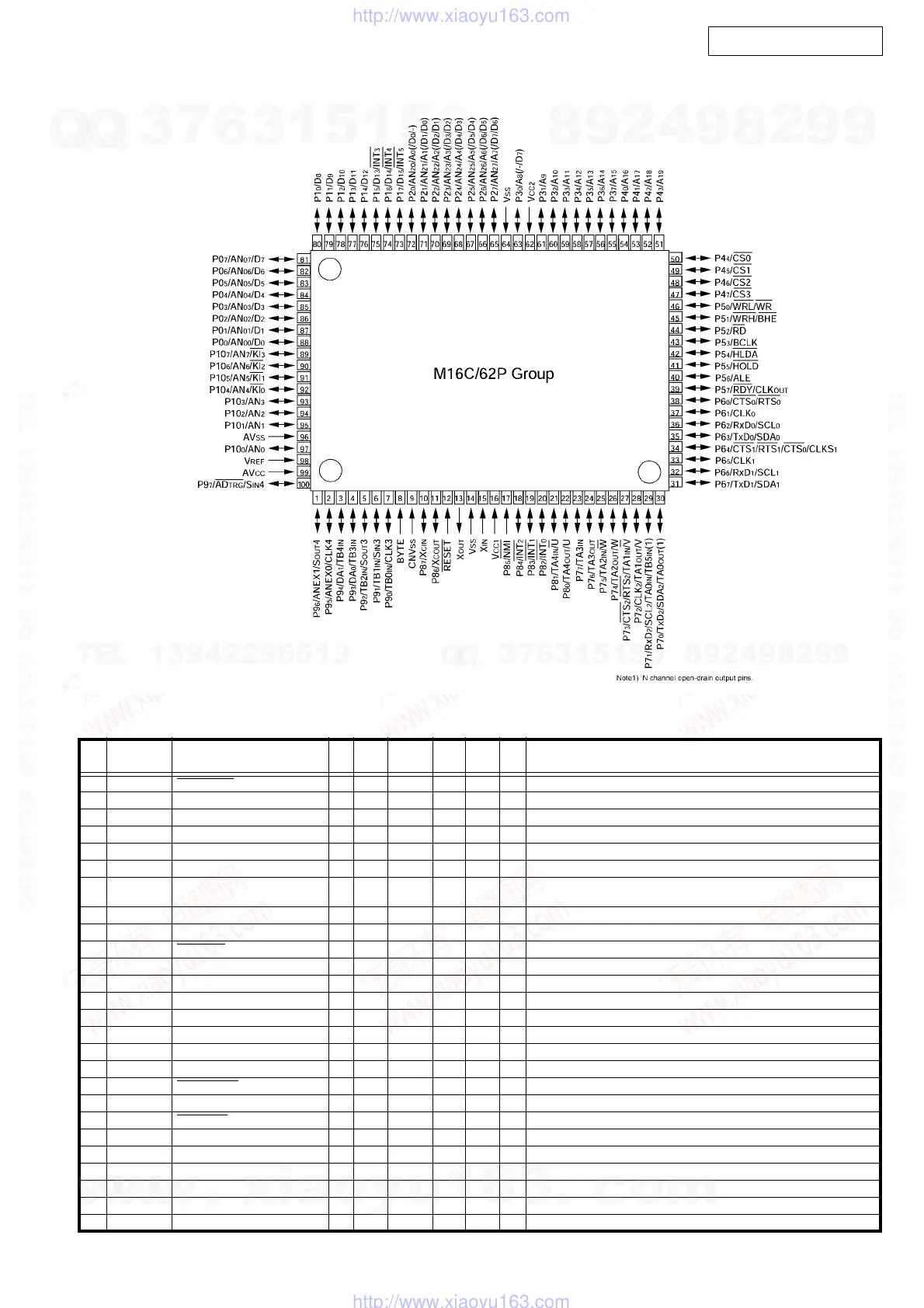

M3062LFGPGP Terminal Function
Pin PinName Symbol I/O Type Det
Op
(Int.)
Op
(Ext.)
Res Function
1 P94/TB4 FPGAWRITE
O C - - - Z AUDIOFPGArewritecontrol(ACTIVE"L")
2 P93/TB3 DIRCE O C - - - Z DIRcontrolpin(LC89057W-VF4A)
3 P92/SOUT3 DIRDIN O C - - - Z DIRcontrolpin(LC89057W-VF4A)
4 P91/SIN3 DIRDOUT I - Lv - Eu Z DIRcontrolpin(LC89057W-VF4A)
5 P90/CLK3 DIRCLK O C - - - Z DIRcontrolpin(LC89057W-VF4A)
6 BYTE BYTE - - - - - - GND(Ext.databusbitwidthswitching,16bit:L)
7CNVCS CNVSS - - - - Ed -
"Single-chip/Micro-processormodeswitching(Normalsingle-chip:L,
Rewritebootprogramstart:Hinputset)"
8 P87 VERST O C - - Ed Z Videoencoderreset(ADV7320)
9 P86 VDRST O C - - Ed Z Videoencoderreset(ADV7430)
10 RESET SUBRESET
I- Lv -EuLResetinput
11 XOUT X1 O - - - - - Oscillatorconnection
12 VSS VSS - - - - - - GND
13 XIN X2 I - - - - - Oscillatorconnection
14 VCC VCC - - - - - - +3.3V
15 P85/NMI NMI I - - - - - Notused(FixedtoH)
16 P84/INT2 CECIN I - E ↓ &L - Eu Z CEC-Dsignalinputpin(SII9185)
17 P83/INT1 ACKSIMO I - E ↓ &L - Ed Z MAIN-SUBμcomcomm.Controlinputpin
18 P82/INT0 SUBBDOWN
I - E ↓ &L Eu Z Powerdowndetect(Powerdown:L)
19 P81 IPRST/ O C - - Ed Z IPCONV(FLI2310)reset
20 P80 GUIWRITE
O - - - - Z GUIROMrewritecontrol(ACTIVE"L")
21 P77 (GUIRSTSUB)/SUBTDO I - - - - Z (ForGUIRSTfromSUB,Notused)/PLDrewritecontrol(JTAG)
22 P76 MPLDCSMAIN/SUBTMS O C - - Eu Z MAINFPGA(PLD)controlpin/PLDrewritecontrol(JTAG)
23 P75 MPLDDATA/SUBTDI O C - - Eu Z MAINFPGA(PLD)controlpin/PLDrewritecontrol(JTAG)
24 P74 MPLDCLK/SUBTCK O C - - Eu Z MAINFPGA(PLD)controlpin/PLDrewritecontrol(JTAG)
25 P73/CTS2 VIDEOPOWER O C - - Ed Z VIDEOPOWERcontroloutput(H:ON)
26 P72/CLK2 DIGITALPOWER O C - - Ed Z DIGITALPOWERcontroloutput(H:ON)
