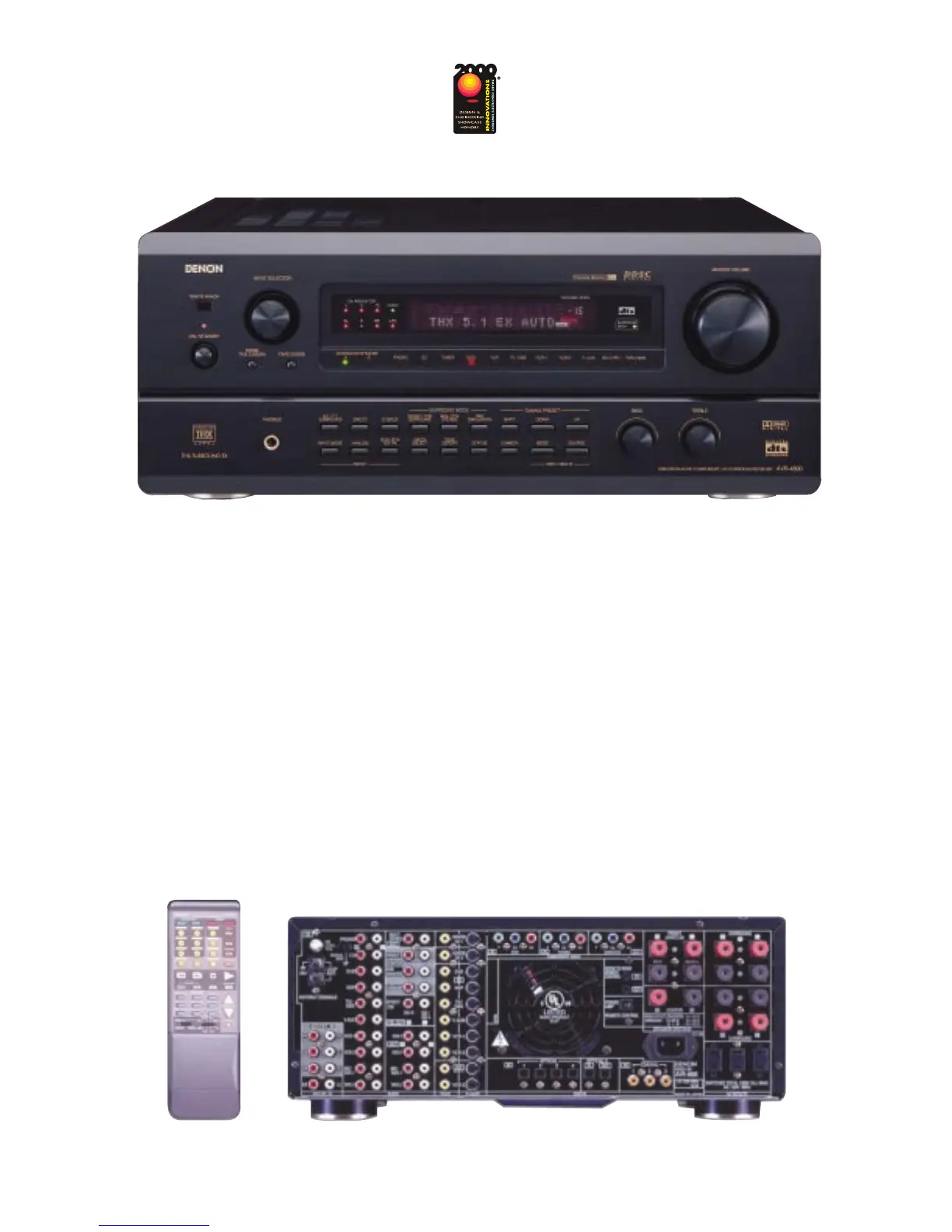

Denon AVR-4800 Brochure & Specs

Input/Output Terminals For Every A/V System
Audio Inputs
11 Sets Analog Input
. . . . . . . . .
PHONO, CD, TUNER, DVD, VDP, TV/DBS,
V-AUX, VCR-1, VCR-2, MD/TAPE-1,
TAPE-2
8-ch Analog EXT. Input . . . . . . . FRONT L/R, CENTER, SURROUND L/R,
EFFECT L/R, SUBWOOFER
5 Sets Digital (Optical) Input
. . . .
OPTICAL X 5
3 Sets Digital (Coaxial) Input
. . .
COAXIAL X 3
Audio Outputs
8-ch Analog PRE Output
. . . . . .
FRONT L/R, CENTER, SURROUND L/R,
EFFECT(SURROUND BACK) L/R,
SUBWOOFER
4 Sets Analog REC Output
. . . . .
VCR-1, VCR-2, MD/TAPE-1,TAPE-2
1 Set Analog Multi Source Output
.
L/R
1 Set Digital (Optical) Output
. . .
OPTICAL
Video Inputs
2 Sets Component Video Input . . DVD, TV/DBS
6 Sets Composite Input
. . . . . . .
DVD, VDP, TV/DBS, V-AUX, VCR-1, VCR-2
6 Sets S-Video Input
. . . . . . . . .
DVD, VDP, TV/DBS, V-AUX, VCR-1, VCR-2
Video Outputs
1 Set Component Video Output . MONITOR
4 Sets Composite Output
. . . . . .
VCR-1, VCR-2, MONITOR-1, MONITOR-2
4 Sets S-Video Output
. . . . . . . .
VCR-1, VCR-2, MONITOR-1, MONITOR-2
Specifications
Power Amplifier Section
Rated output . . . . . . . . . . . . *THD figures are power amp stage values.
Front / Center / Surround 125 W x 2 / 125 W / 125 W x 2
(8 ohms, 20Hz - 20kHz, 0.05% THD)
150 W x 2 / 150 W / 150W x 2
(6 ohms, 20Hz - 20kHz, 0.08% THD)
Preamplifier Section
Input sensitivity/Impedance
PHONO(MM) . . . . . . . . . . . 2.5 mV/47 kohms
CD, DVD, VDP, TV/DBS, V-AUX, VCR-1 VCR-2, MD/TAPE-1, TAPE-2,
FRONT L/R, CENTER, SURROUND L/R, EFFECT L/R, SUBWOOFER
. . . . . . . . . . . . . . . . . . . . . 200 mV/47 kohms
Output level/Load Impedance
FRONT L/R, CENTER, SURROUND L/R, EFFECT (SURROUND BACK) L/R,
SUBWOOFER
. . . . . . . . . . . . . . . . . . . . . 1.2 V/10 kohms
V-AUX, VCR-1 VCR-2, MD/TAPE-1,TAPE-2, MONITOR
. . . . . . . . . . . . . . . . . . . . . . 200 mV/47 kohms
RIAA deviation . . . . . . . . . . ±1 dB (20 Hz - 20 kHz)
Tone control . . . . . . . . . . . . Treble: ±10 dB at 10 kHz Bass: ±10 dB at 100 Hz
FM Section
Tuning frequency range . . . . 87.5 - 107.9 MHz
Usable sensitivity . . . . . . . . 1.0 µV (11.2 dBf)
AM Section
Tuning frequency range . . . . 520 - 1710 kHz
Usable sensitivity . . . . . . . . 18 µV
General
Power supply . . . . . . . . . . . AC 120 V, 60 Hz
Power consumption . . . . . . . 10.9 A
Dimensions . . . . . . . . . . . . . 434 (W) x 181 (H) x 494 (D) mm
17.1” (W) x 7.1”(H) x 19.4”(D)
Weight . . . . . . . . . . . . . . . . 21.5 kg, 47.4 lbs

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
