Denon AVR-5800

11

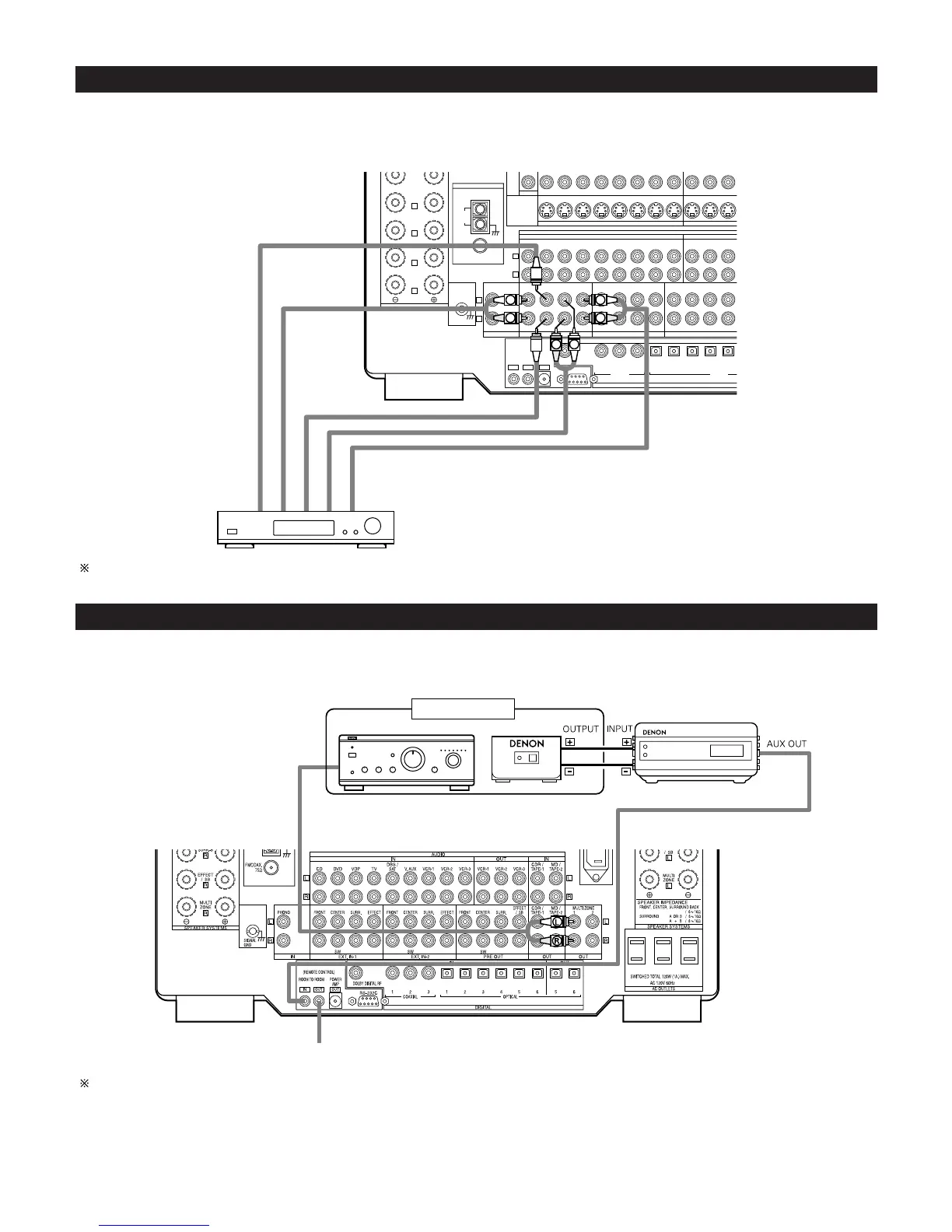

Connecting the external input (EXT. IN) jacks
Connecting the MULTI SOURCE jacks
• These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel
decoder, such as a Super Audio DVD player, or a multi-channel SACD player, or other future multi-channel sound format decoder.
• When making connections, also refer to the operating instructions of the other components.
• If another pre-main (integrated) amplifier is connected, the multi-source jacks can be used to play a different program source in another room
at the same time. (See page 37.)
SPEAKER SYSTEMS
ANTENNA TERMINALS
MULTI
ZONE
SURR.-B
SURR.-A
CENTER
EFFECT
/ SB
R
R
R
R
R
L
R
L
SAT1
VIDEO
S-VIDEO
OUT
OUT IN
IN
IN
EXT. IN-1
SW SW
12
COAXIAL
(REMOTE CONTROL)
ROOM TO ROOM POWER
AMP
RS-232C
OPTICAL
DIGITAL
312345
SW
EXT. IN-2 PRE OUT
IN OUT
AUDIO
VDP TV
DBS /
V. AUX VCR-1 VCR-2 VCR-3 VCR-1 VCR-2 VCR-3
SAT
DVD
CENTER SURR.
EFFECT
FRONT CENTER SURR.
EFFECT
FRONT
DOLBY DIGITAL RF
CENTER SURR.
EFFECT
/ SB
FRONTPHONO
SIGNAL
GND
CD
AM
LOOP
FMCOAX.
75Ω
ANT.
OUTOUT IN
R
L
R
L
R
L
Decoder with 8- or 6-channel
analog output
Front
Surround back
Surround
Subwoofer
Center
For instructions on playback using the external input (EXT. IN) jacks, see page 38.
Another room
RC-616
INFRARED
RETRANSMITTER
Integrated pre-main amplifier
RC-617
INFRARED SENSOR
Extension jacks for future use.
For instructions on operations using the MULTI SOURCE jacks, see page 37.
