Denon AVR-5800 - Front Panel; Part Names and Functions

14
6

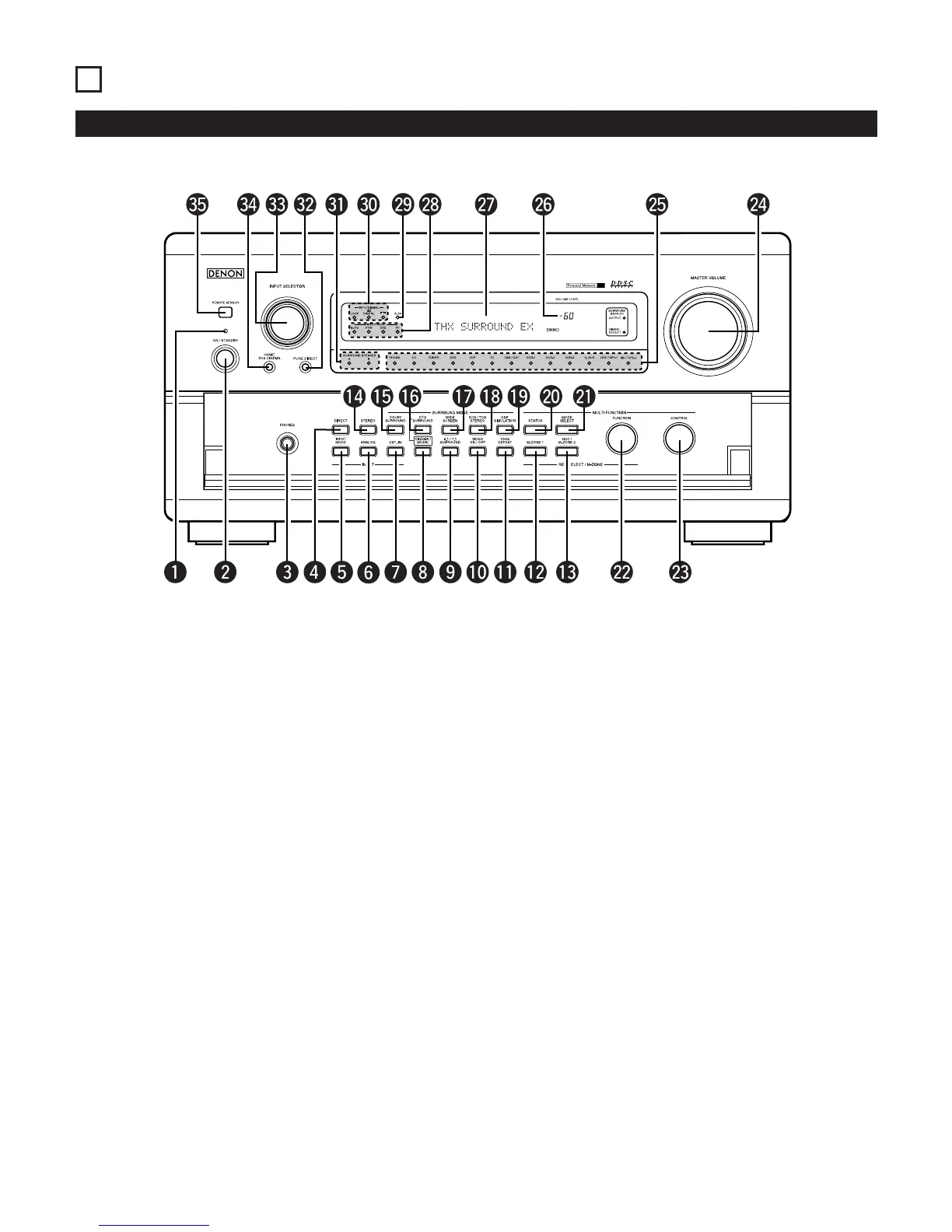

PART NAMES AND FUNCTIONS
Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
q
Power indicator........................................................................(32)
w
Power switch...........................................................................(32)
e
Headphones jack (PHONES)....................................................(35)
r
DIRECT button.........................................................................(44)
t
INPUT MODE selector button.................................................(33)
y
ANALOG button.......................................................................(33)
u
EXT. IN button..........................................................................(33)
i
CINEMA/MUSIC button...........................................................(47)
o
6.1/7.1 SURROUND button .....................................................(51)
!0
VIDEO ON/OFF button ............................................................(39)
!1
TONE DEFEAT button .............................................................(35)
!2
M-ZONE 1 button ....................................................................(37)
!3
REC/M-ZONE-2 button ............................................................(36)
!4
STEREO button........................................................................(44)
!5
DOLBY SURROUND button ....................................................(46)
!6
DTS SURROUND button .........................................................(46)
!7
WIDE SCREEN button.............................................................(49)
!8
5CH/7CH STEREO button .......................................................(49)
!9
DSP SIMULATION button .......................................................(49)
@0
MULTI FUNCTION STATUS button..........................................(35)
@1
MULTI FUNCTION MODE SELECT button .............................(42)
@2
MULTI FUNCTION, REC/SELECTOR M-ZONE
selector dial (FUNCTION) .......................................................(36)
@3
MULTI FUNCTION control dial (CONTROL) ............................(43)
@4
MASTER VOLUME control......................................................(34)
@5
Input source indicators ............................................................(33)
@6
Master volume indicator (VOLUME LEVEL)............................(34)
@7
Display
@8
Input mode indicators (INPUT MODE) ....................................(34)
@9
AL24 indicator..........................................................................(34)
#0
Digital signal indicators (SIGNAL) ............................................(34)
#1
Surround speaker system indicators
(SURROUND SPEAKER A/B))..................................................(35)
#2
PURE DIRECT button ..............................................................(44)
#3
Input source selector dial (INPUT SELECTOR)........................(33)
#4
HOME THX CINEMA button ...................................................(45)
#5
Remote control sensor (REMOTE SENSOR) ..........................(31)
