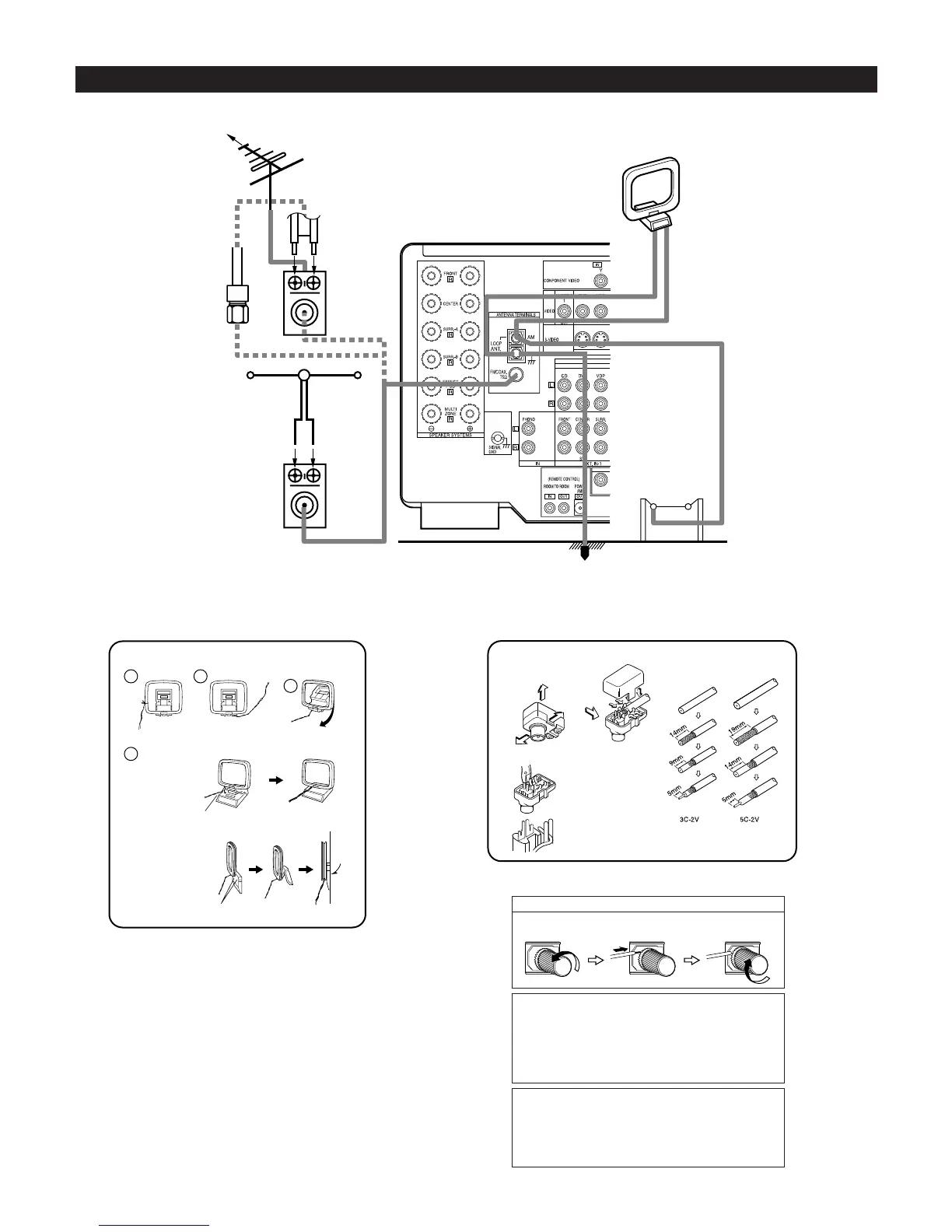

Connecting the antenna terminals
DIRECTION OF
BROADCASTING
STATION
AM LOOP ANTENNA
(Supplied)
FM ANTENNA
GROUND
AM OUTDOOR
ANTENNA
300 Ω/ohms
TERMINALS
FM ANTENNA
ADAPTER
(Supplied)
FM INDOOR
ANTENNA
(Supplied)
300 Ω/ohms
FEEDER
CABLE
75 Ω/ohms
COAXIAL
CABLE
F-type converter plug (attached)
• When using the FM antenna
attach to this apparatus
• An F-type FM antenna cable plug can be connected directly.
• If the FM antenna cable’s plug is not of the F-type, connect using the
included antenna adapter.
AM loop antenna assembly
Connect to the AM
antenna terminals.
Bend in the reverse
direction.
Remove the vinyl tie
and take out the
connection line.
a. With the antenna
on top any stable
surface.
b. With the antenna
attached to a
wall.
Mount
Installation hole
Mount on wall, etc.
Open the cover
ANTENNA ADAPTER
REMOVE
CLAMP
75 Ω/ohms COAXIAL CABLE
CLAMP
CLAMP
PULL
PULL
SHUT
Connection of AM antennas
1. Loosen by turning
counterclockwise.
2. Insert the
cord.
3. Tighten by turning
clockwise.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC which provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
Notes:
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect
the AM loop antenna.
• Make sure AM loop antenna lead terminals do not touch
metal parts of the panel.
FM antenna adapter assembly
