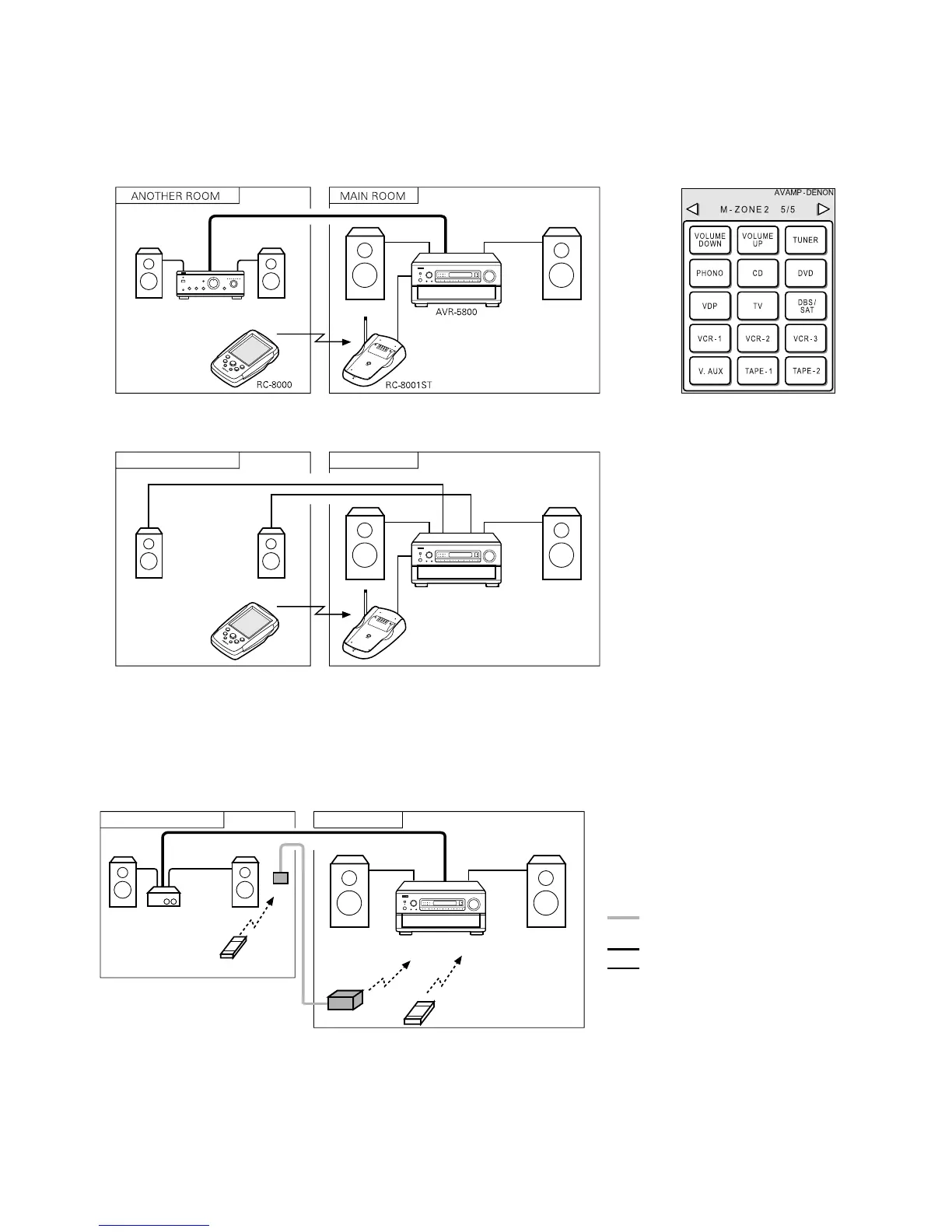

[2] Multi-zone playback using the MULTI ZONE 2 terminals
The AVR-5800 is equipped with audio pre output terminals with a fixed output level (M-ZONE 2) as the MULTI ZONE 2 output terminals.
(These are not video outputs.)
Settings can be made at the system setup menu so that the same source as the M-ZONE 2 pre-out terminals can be played from the speakers
connected to the M-ZONE 2 speaker terminals.
2 When using the PRE OUT terminals
2 When using the M-ZONE 2 (MULTI) speaker terminals
RC-8001ST
AVR-5800
RC-8000
ANOTHER ROOM MAIN ROOM
NOTE:
When the main unit is set to the recording output mode, the M-ZONE 2 remote control unit key cannot be operated. (See page 36.)
[3] When using a separately sold room-to-room remote control unit (RC-616, 617 or 618)
When the main room and another room are far apart and operation is not possible with RF transmission, operation is possible using a
separately sold room-to-room remote control unit (RC-616, 617 or 618).
For details, refer to the operating instructions of the RC-616, 617 or 618.
RC-617
RC-616
MAIN ROOMANOTHER ROOM
AVR-5800
REMOTE
CONTROL UNIT
REMOTE
CONTROL UNIT
INTEGRATED
AMPLIFIER
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
