AVR-5803/AVC-A1SR
ADJUSTMENT
Tuner Section (AVR-5803 only)

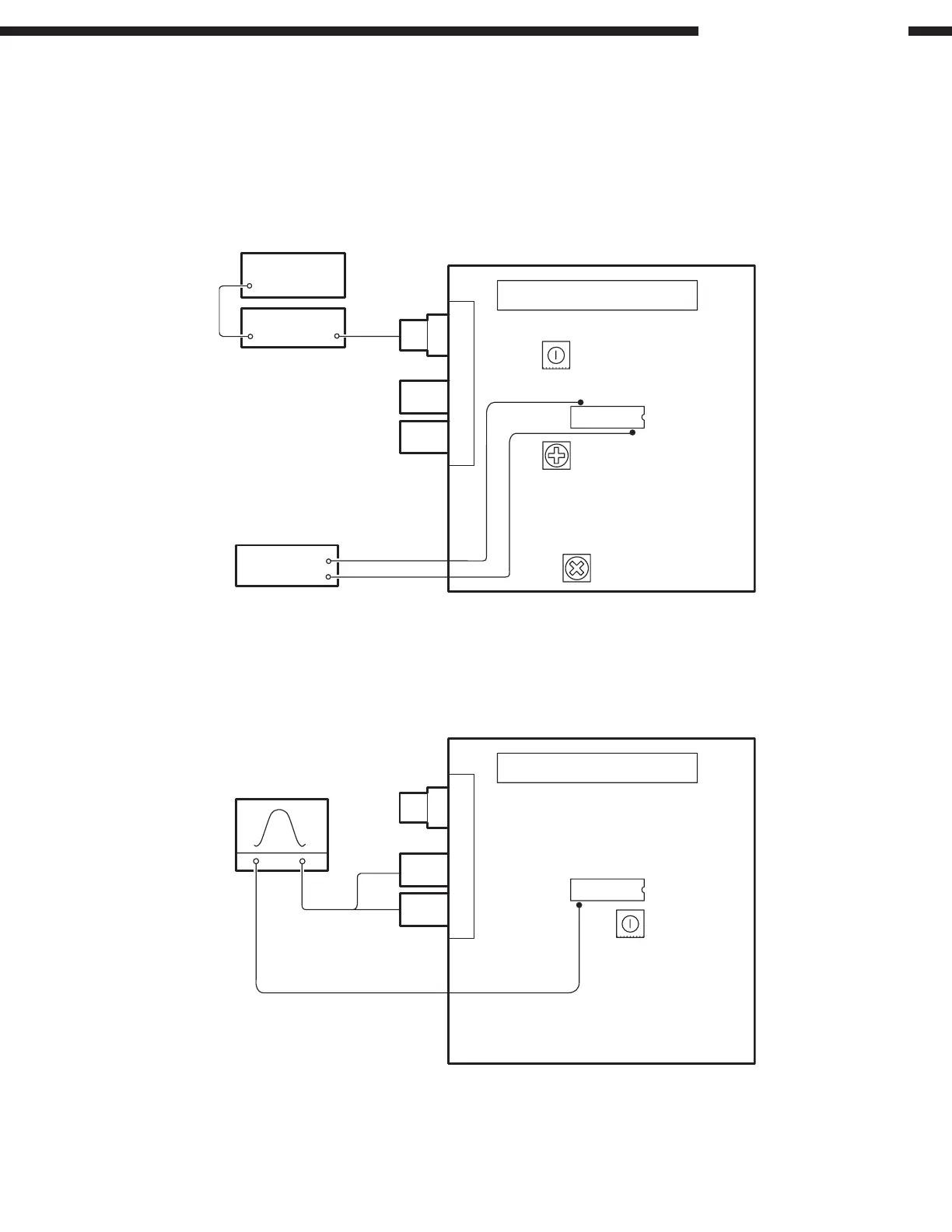

CONNECTION DIAGRAM OF MEASURING INSTRUMENTS
FM
AM
75ohm
FMSSG
STEREO
MODULATOR
IC303
T302
VR301
VR302
1U-3298 TUNER UNIT
DIGITAL
VOLTMETER
9 pin
20 pin
GND
AM
AM IF
O
UT
OSCILLOSCOPE
IC303
T304
1U-3298 TUNER UNIT
12 pin
