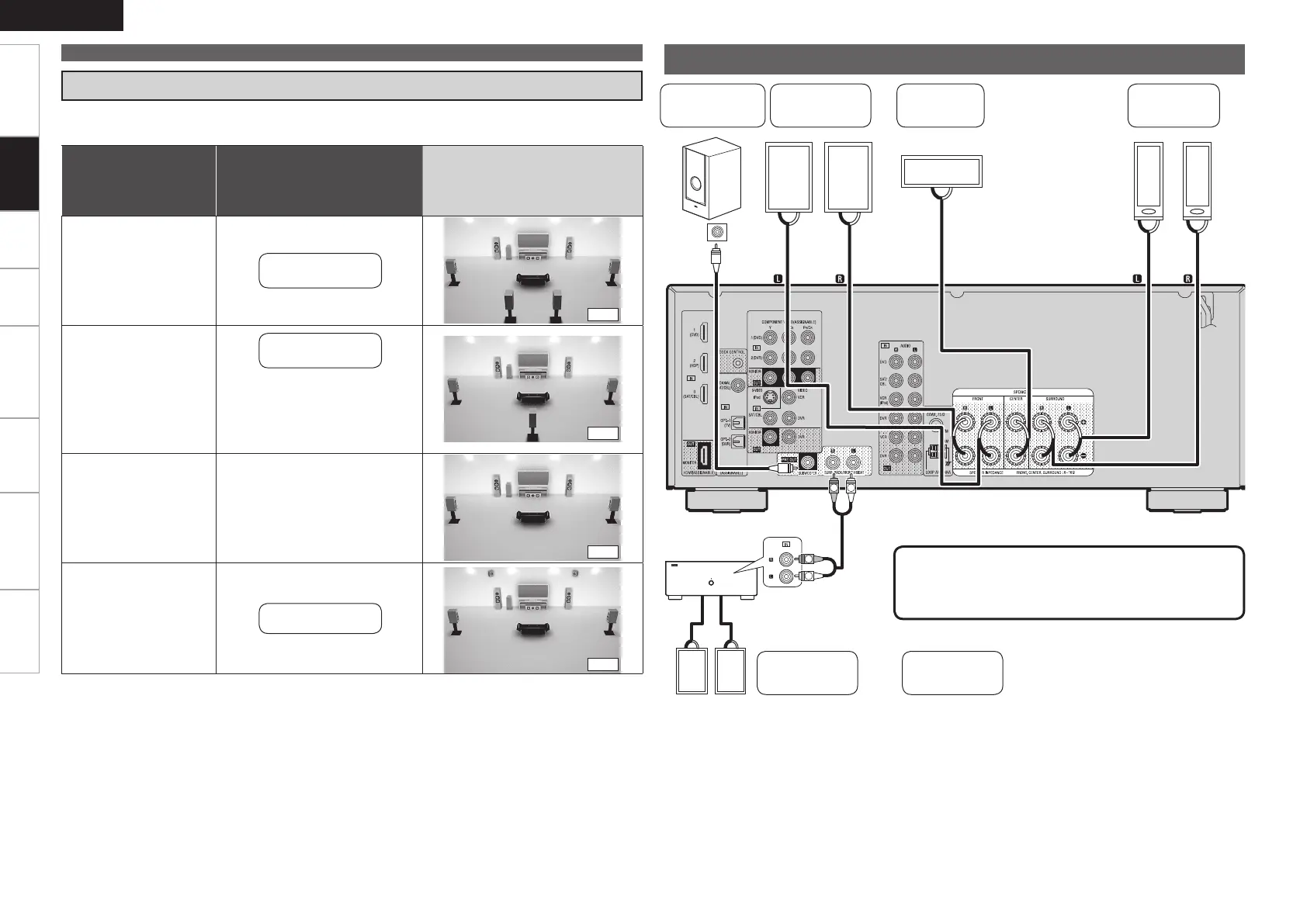

Connecting the Speakers
Connections
Installing/Setting the Speakers
s Set the “Pre Assign” Mode According to the Speaker Layout.
The signals output from the AVR-590’s SURR. BACK / FRONT HEIGHT PRE OUT connectors can be
switched to signals of the surround mode being used (vpage 24 “Pre Assign”).
Pre Assign mode
(vpage 24)
The speaker which plays the a
sound output from the SURR.
BACK / FRONT HEIGHT PRE
OUT connectors
Example of speaker installation
Normal
(Default)
Surround back
speakers
Normal
Surround back
speakers
b Connect to the SURR. BACK /
FRONT HEIGHT PRE OUT “L”
connector.
b Set “S.Back (Pre out)” (vpage
25) to “1ch”.
Normal
Not connected
b Set the “S.Back (Pre out)” settingS.Back (Pre out)” setting” setting
(vpage 25) to “None”.
Front Height
Front Height
speakers
(7.1)
(6.1)
(5.1)
(7.1)
To play surround back speakers or front height speakers,
connect a power amplifier to the AVR-590’s SURR. BACK /
FRONT HEIGHT PRE OUT connectors.
Make the “Pre Assign” (vpage 24) settings.
Front Height
speakers
Surround back
speakers
or
Power amplifier

Denon AVR-590 Specifications

General

Number of Channels	5.1
HDMI Inputs	3
HDMI Outputs	1
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Tuner Bands	AM/FM
Preset Station Qty	56
Surround System Class	5.1 channel
HDMI Switching	Yes
Width	434 mm
Frequency Response	10 Hz - 100 kHz
Dolby Technologies	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic II
DTS Technologies	DTS 96/24, DTS Neo:6
Audio D/A Converter	24-bit / 192kHz
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
