16
ENGLISH

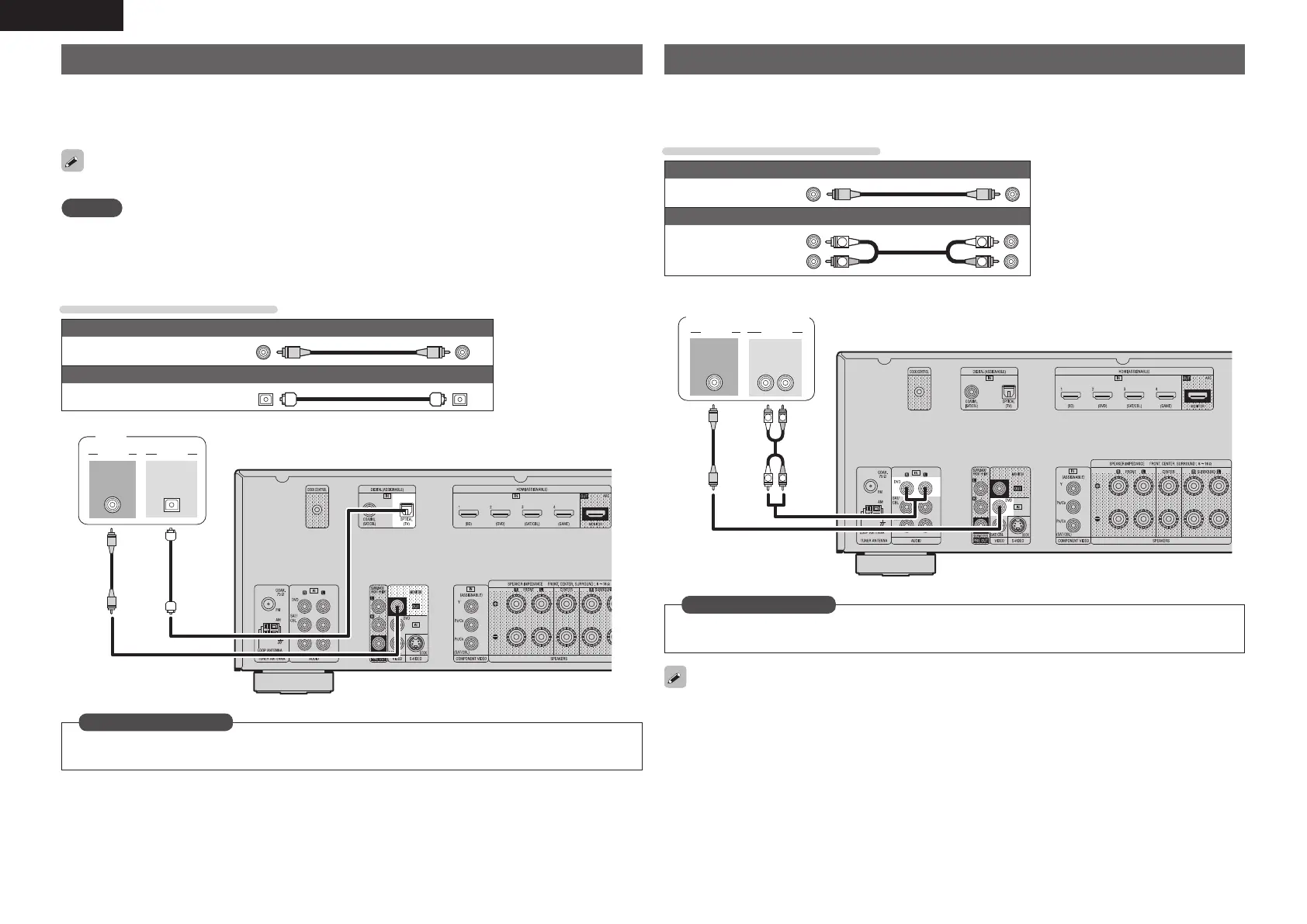

Connecting a TV
• Select the connector to use and connect the device.
• For video connections, see “Converting input video signals for output (Video conversion function)”
(vpage13).
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
To listen to TV audio through this device, use the optical digital connection.
NOTE
This connection is not required when a TV compatible with the ARC function (Audio Return Channel (HDMI
1.4 standard function)) is connected to this unit via an HDMI connection.
For details, see “About ARC (Audio return channel) function” (vpage15) or refer to the instruction manual
for your TV.
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Audio cable (sold separately)
Optical cable
IN
VIDEO
VIDEO
AUDIO
OPTICAL
OUT
TV
Set this to change the digital input connector to which the input source is assigned.
“Input Assign” (vpage38)
in Set as Necessary
Connecting a Blu-ray Disc player / DVD player
• You can enjoy video and audio from a Blu-ray Disc or DVD.
• Select the connector to use and connect the device.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
R
L
R
L
VIDEO AUDIO
AUDIO
RL
OUT
OUT
VIDEO
Blu-ray Disc player /
DVD player
Set this to change the digital input connector to which the input source is assigned.
“Input Assign” (vpage38)
in Set as Necessary
For HD audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus and DTS Express) playback, connect with HDMI
(vpage14 “Connecting an HDMI-compatible device”).
To Next Page
