Connect
• For the method of connecting 5.1-channel speakers, see page 4.
• For the method of connecting the TV, see page 5.

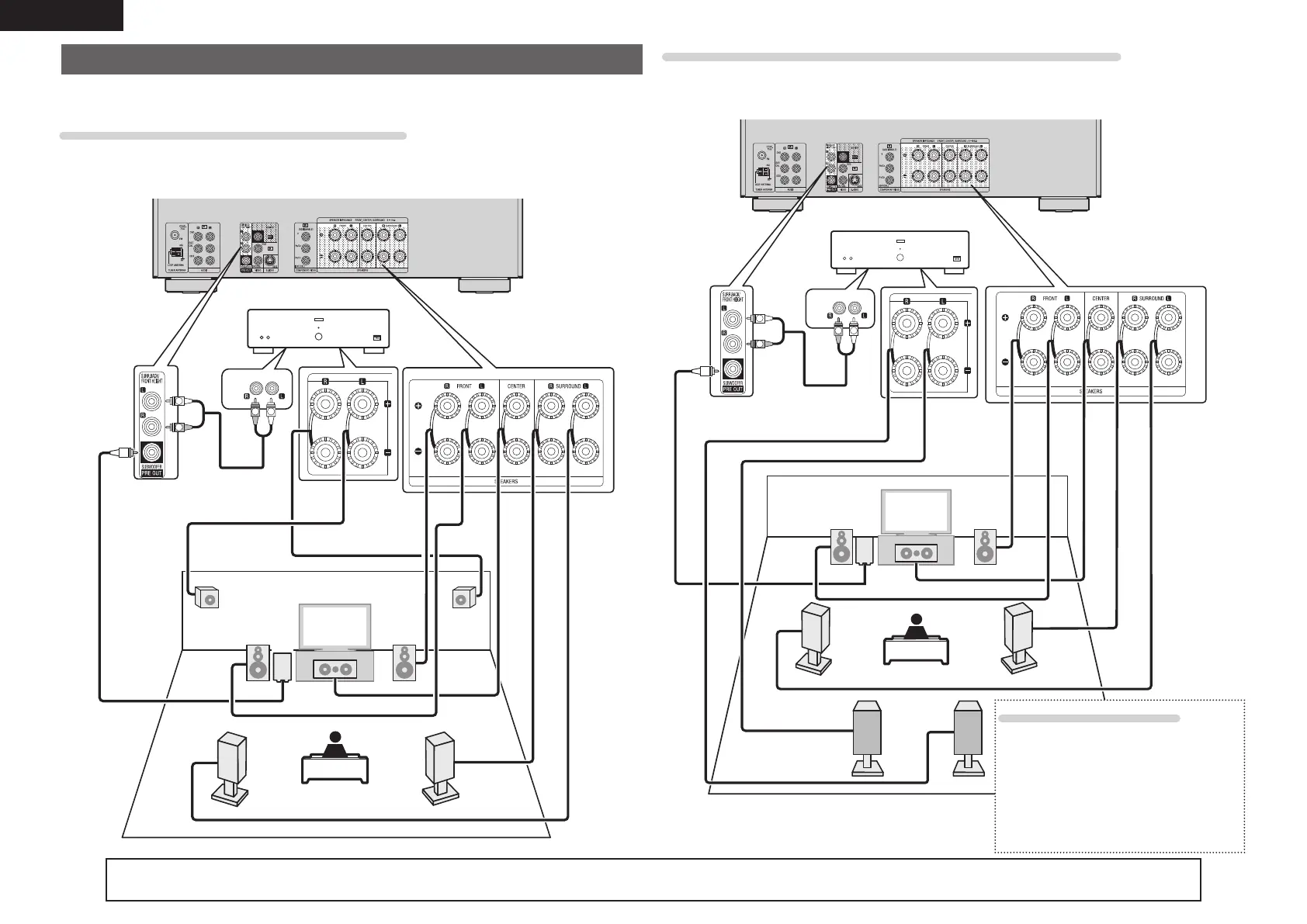

7.1-channel (Front height speaker) connection
• A power amplifier (sold separately) is required for this connection.
• For 7.1-channel (Front height speaker) playback, set “Pre Assign” in “Set up speakers” (vpage29) to
“Front Height”.
FL FR
FHRFHL
C
SW
SL
SR
AUX
IN
R
L
R
L
Power amplifier
7.1-channel/6.1-channel (Surround back speaker) connection
• A power amplifier (sold separately) is required for this connection.
• For 7.1-channel (Surround back speaker) playback, set “Pre Assign” in “Set up speakers” (vpage29) to
“Normal”.
FL FR
C
SBL SBR
SL
SR
SW
AUX
IN
R
L
R
L
Power amplifier
6.1-channel connection
If a single surround back speaker is to
be used (with a 6.1-channel connection),
connect it to the “L” terminals of the
SURR. BACK/FRONT HEIGHT connector
in PRE OUT.
For speaker settings in this case, see
“When 6.1ch (Surround back speaker)
installed” (vpage27).
For speaker impedance and speaker cable connections, see page 4.
