ENGLISH

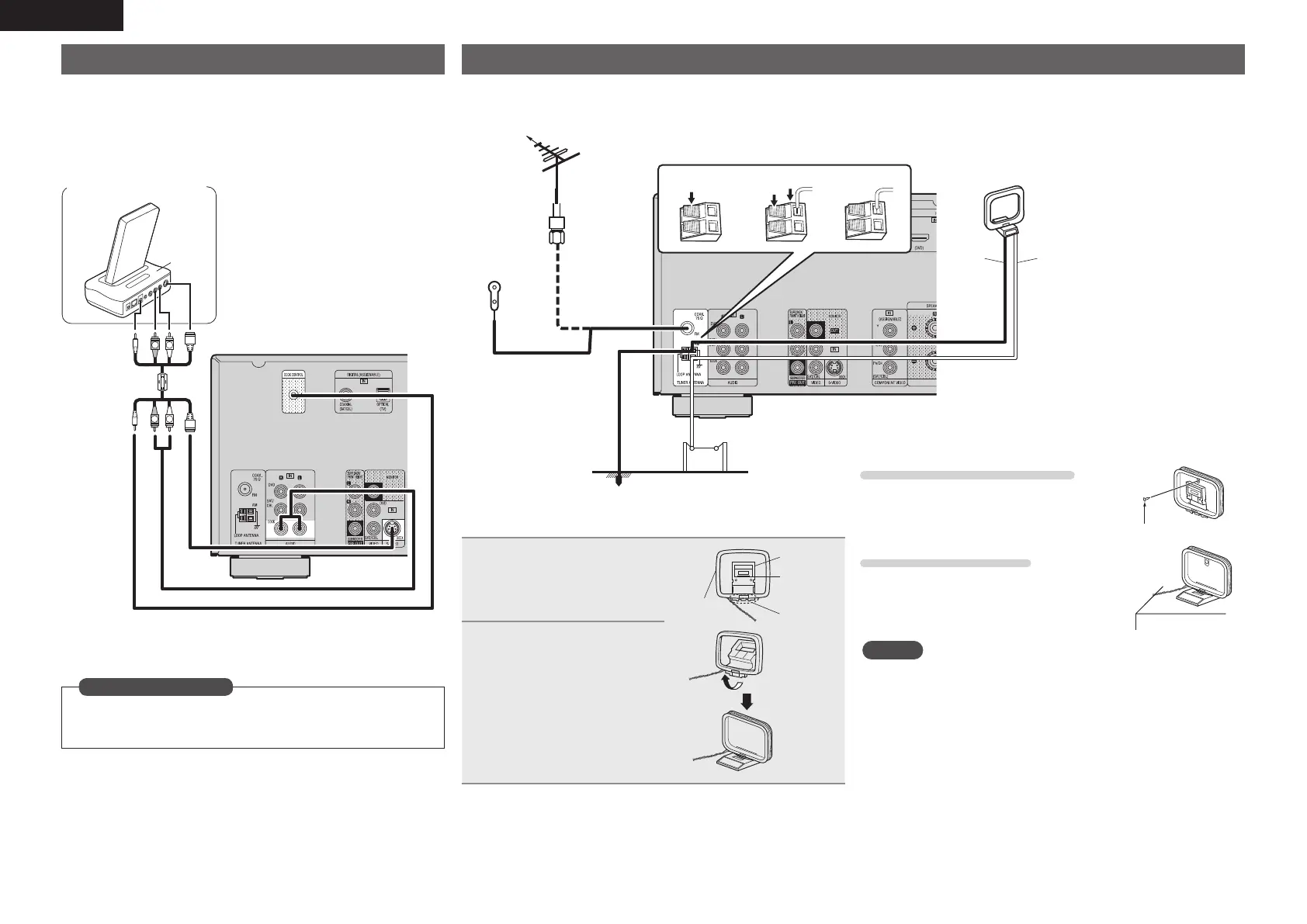

Connecting a control dock for iPod
• Connect the control dock for iPod to the unit to enjoy video and
music stored on an iPod.
• For the control dock for iPod, use ASD-1R, ASD-11R, ASD-3N, ASD-
3W, ASD-51N and ASD-51W made by DENON (sold separately).
• For instructions on the control dock for iPod settings, refer to the
control dock for iPod’s operating instructions.
R
L
R
L
ASD-51N
Control dock for iPod
zUse the AV/Control Cable supplied with the DENON
control dock for iPod.
z
Set this to change the digital input connector to which the input
source is assigned.
“Input Assign” (vpage38)
in Set as Necessary
Connecting an antenna
• Connect the FM antenna or AM loop antenna included with the unit to enjoy listening to radio broadcasts.
• After connecting the antenna and receiving a broadcast signal (vpage22 “Listening to FM/AM broadcasts”), use tape to fix the antenna in a
position where noise is the lowest.
w eq
FM outdoor
antenna
75 Ω Coaxial
cable
Ground
AM outdoor
antenna
AM loop antenna
(supplied)
Black White
FM indoor
antenna
(supplied)
n AM loop antenna assembly
1
Put the stand section
through the bottom of the
loop antenna from the
rear and bend it forward.
Stand
Square
hole
Projecting
part
Loop
antenna
2
Insert the projecting part
into the square hole in
the stand.
n Using the AM loop antenna
To use suspended on a wall
Suspend directly on the wall without
assembling.
Nail, tack, etc.
To use standing alone
Use the procedure below to assemble.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
• If the signal has noise interference, connect the ground terminal
(GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend
installing an outdoor antenna. Inquire at the retail store where you
purchased the unit for details.
To Next Page
