7
ENGLISH
Basic version Advanced version InformationSimple version

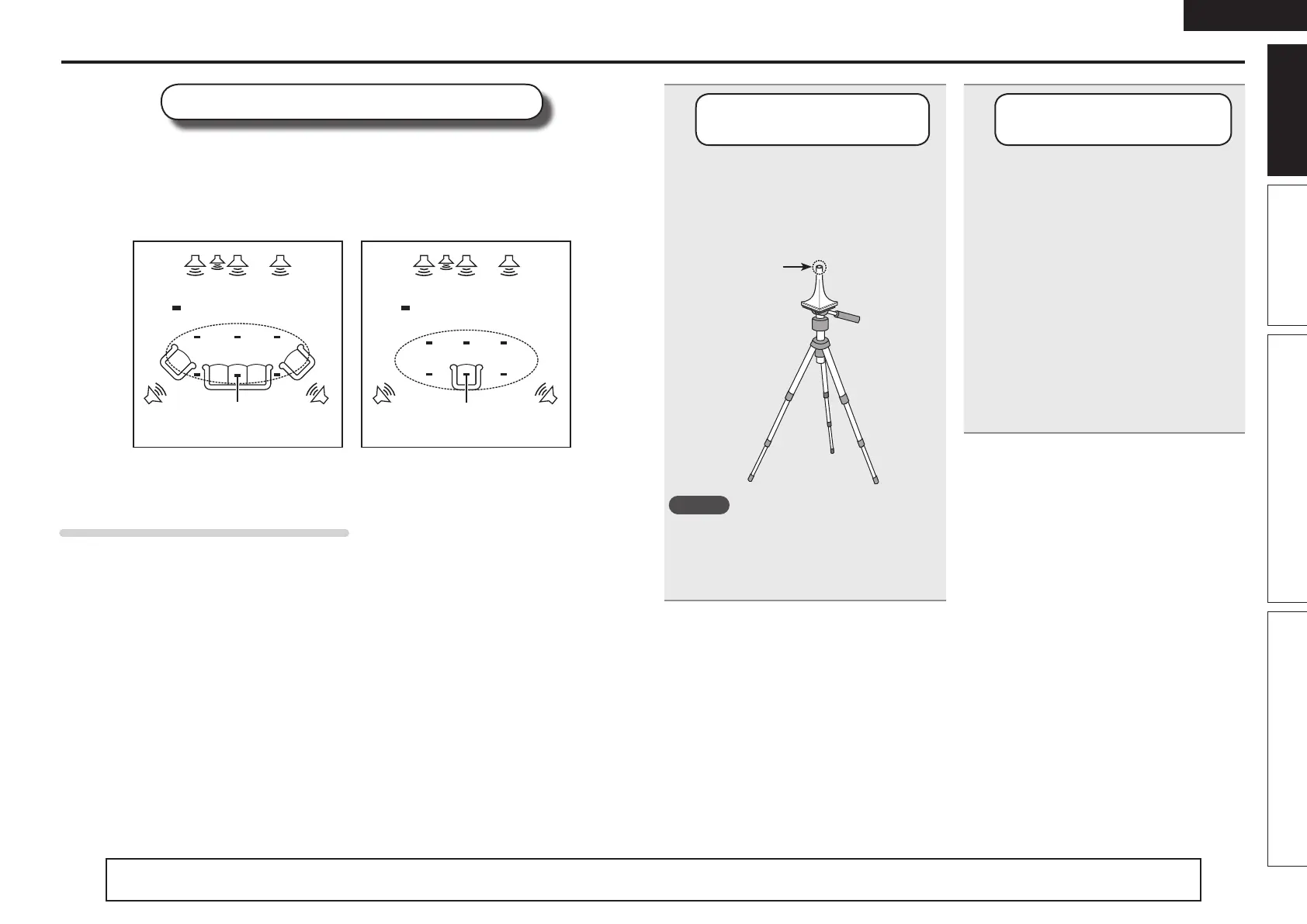

About setup microphone placement
• Measurements are performed by placing the setup microphone successively at multiple positions
throughout the entire listening area, as shown in GExample qH. For best results, we recommend you
measure in six positions, as shown in the illustration (up to six positions).
• Even if the listening environment is small as shown in GExample wH, measuring at multiple points
throughout the listening environment results in more effective correction.
FL SW C FR
SRSL
*
M
FL SW C FR
SRSL
*
M
(
: Measuring positions)
GExample qH GExample wH
(
: Measuring positions)
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
About the main listening position (*M)
The main listening position is the position where listeners would normally sit or where one would
normally sit alone within the listening environment. Before starting Audyssey Auto Setup, place the setup
microphone in the main listening position. Audyssey MultEQ
®
uses the measurements from this position
to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.
The “Simple version” describes the installation, connection and setup methods for 5.1-channel speakers.
See page 30 for the installation, connection and setup methods for speakers other than 5.1-channel speakers.
Set up speakers (Audyssey
®
Auto Setup)
2
Set up
the subwoofer
If using a subwoofer capable of the
following adjustments, set up the
subwoofer as shown below.
n When using a subwoofer with a direct
mode
Set the direct mode to “On” and disable the
volume adjustment and crossover frequency
setting.
n When using a subwoofer without a
direct mode
Make the following settings:
• Volume : “12 o’clock position”
• Crossover frequency :
“Maximum/Highest Frequency”
• Low pass filter : “Off”
• Standby mode : “Off”
1
Set up
the microphone
Mount the setup microphone on a
tripod or stand and place it in the
main listening position.
When placing the setup microphone, adjust
the height of the sound receptor part to the
level of the listener’s ear.
Sound receptor
Setup
microphone
NOTE
• Do not hold the setup microphone in your hand
during measurements.
• Avoid placing the setup microphone close to a
seat back or wall as sound reflections may give
inaccurate results.
To Next Page
