13
AVR-2809CI/AVR-989/AVR-2809/AVC-2809

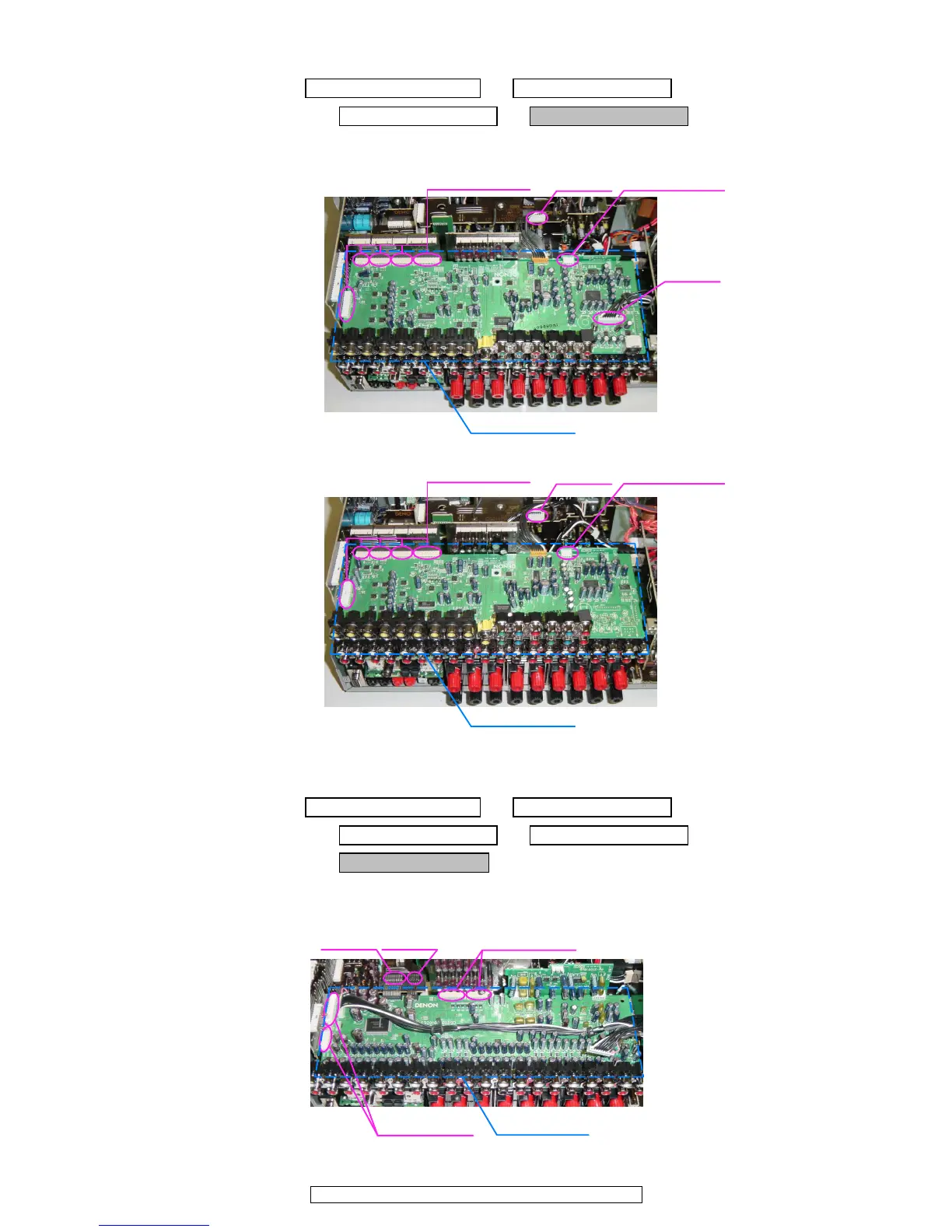

4. A.VIDEO UNIT ASSY
(1) Disconnect the connector wires and boards. ( コネクタワイヤーとコネクタボードをはずす。）
5. AUDIO UNIT ASSY
(1) Disconnect the connector wires and boards. ( コネクタワイヤーとコネクタボードをはずす。)
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
A.VIDEO UNIT
Board to board
CX077
Top view
CY085
Board to board
EU model
Board to board
CX077
Board to board
Top view
A.VIDEO UNIT
EC, E2, E1C, JP model
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY
AUDIO UNIT
Board to board
CY135 CY079
Board to board
Top view
EU model
