AVR-2809CI/AVR-989/AVR-2809/AVC-2809
3. BACK PANEL ASSY
(1) Remove the screw cover.（SCREWCOVER をはずす。）
(2) Remove the screws.（ねじをはずす。）
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY

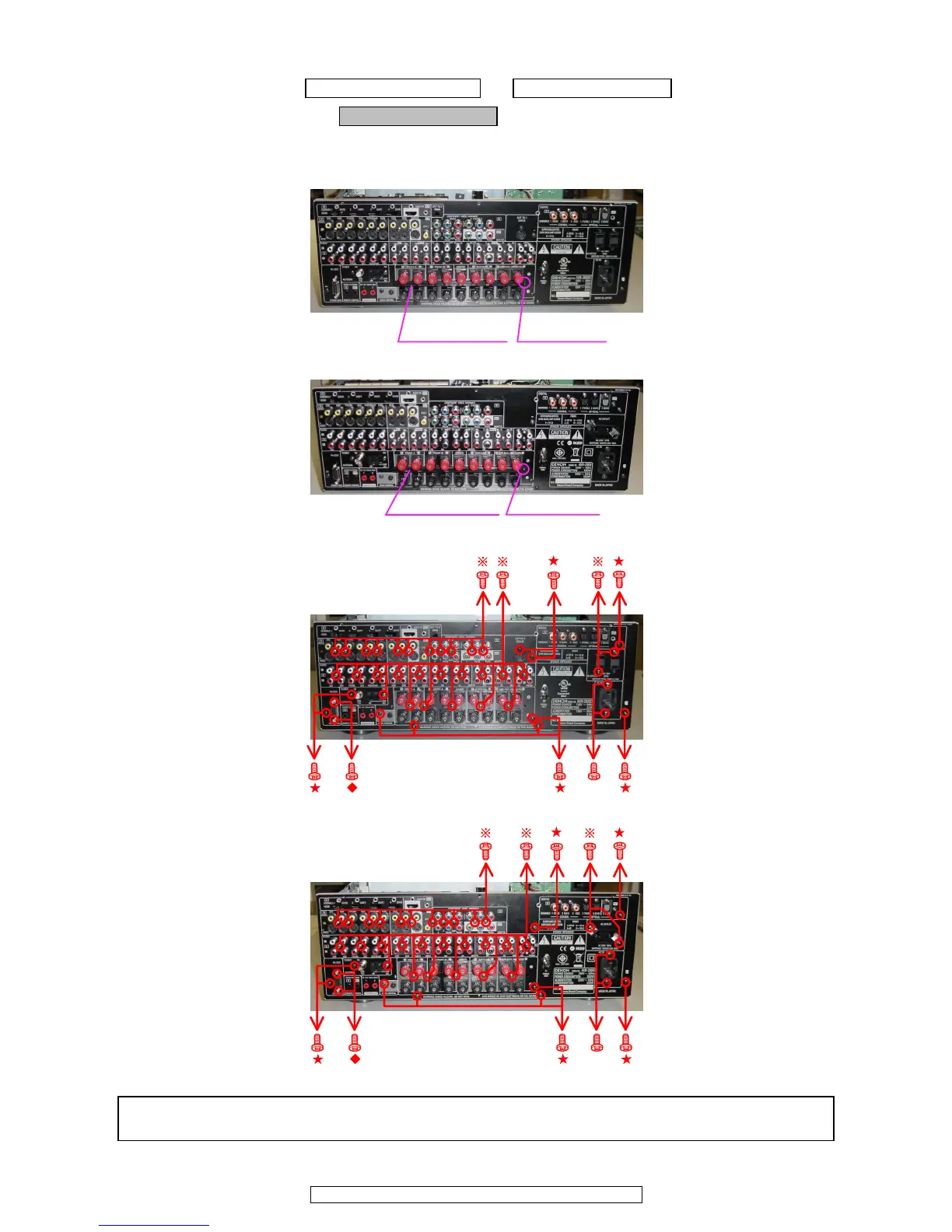

SCREW COVER PUSH RIVET
Picture B
EU model
Picture B
PUSH RIVET
SCREW COVER
EC, E2, E1C, JP model
Picture B
ً
EU model
Picture B
ً
EC, E2, E1C, JP model
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in BACK PANEL ASSY.
BACKPANELASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
