11
AVR-2809CI/AVR-989/AVR-2809/AVC-2809

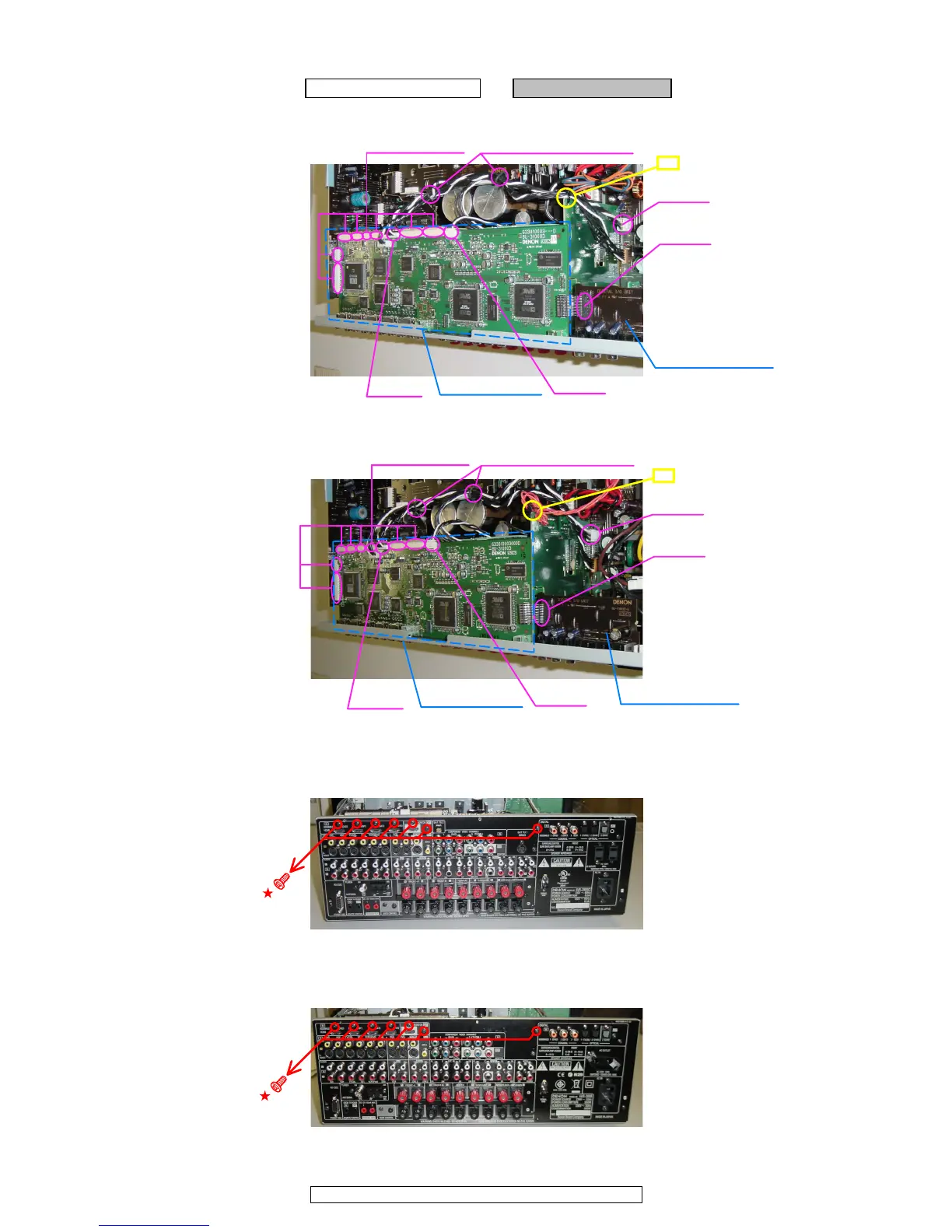

2. DIGITAL UNIT ASSY
(1) Disconnect the connector wires and boards.（コネクタワイヤーとコネクタボードをはずす。）
(2) Remove the screws. ( ねじをはずす。)
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
DIGITAL UNIT
DIGITAL I/O UNIT
CX041
CX131
CX065
CX035
Top view
cut
CORD HOLDER : Loose
Board to board
EU model
DIGITAL UNIT
DIGITAL I/O UNIT
CX041
CX131
CX065
CX035
Top view
cut
CORD HOLDER : Loose
Board to board
EC, E2, E1C, JP model
Picture B
EU model
Picture B
EC, E2, E1C, JP model
