AVR-2809CI/AVR-989/AVR-2809/AVC-2809

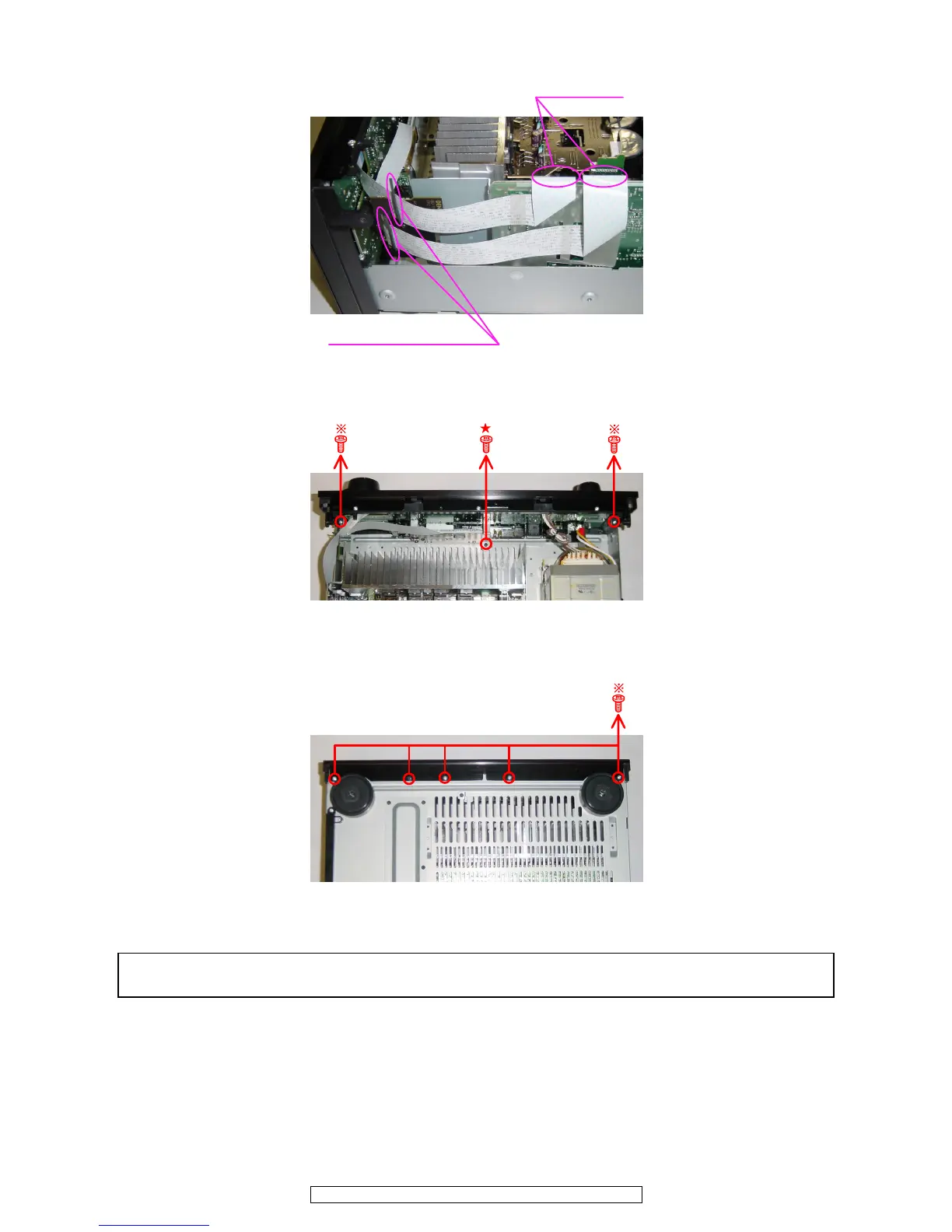

(2) Disconnect the FFC cable.（FFC ケーブルをはずす。）
(3) Remove the screws. ( ねじをはずす。）
CORD HOLDER : Loose
FFC CABLE
Picture C
Top v iew
Bottom view
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT UNIT ASSY.
FRONTUNITASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
