Denon AVR-989 Service Manual

28
AVR-2809CI / AVR-2809 / AVR-989 / AVC-2809

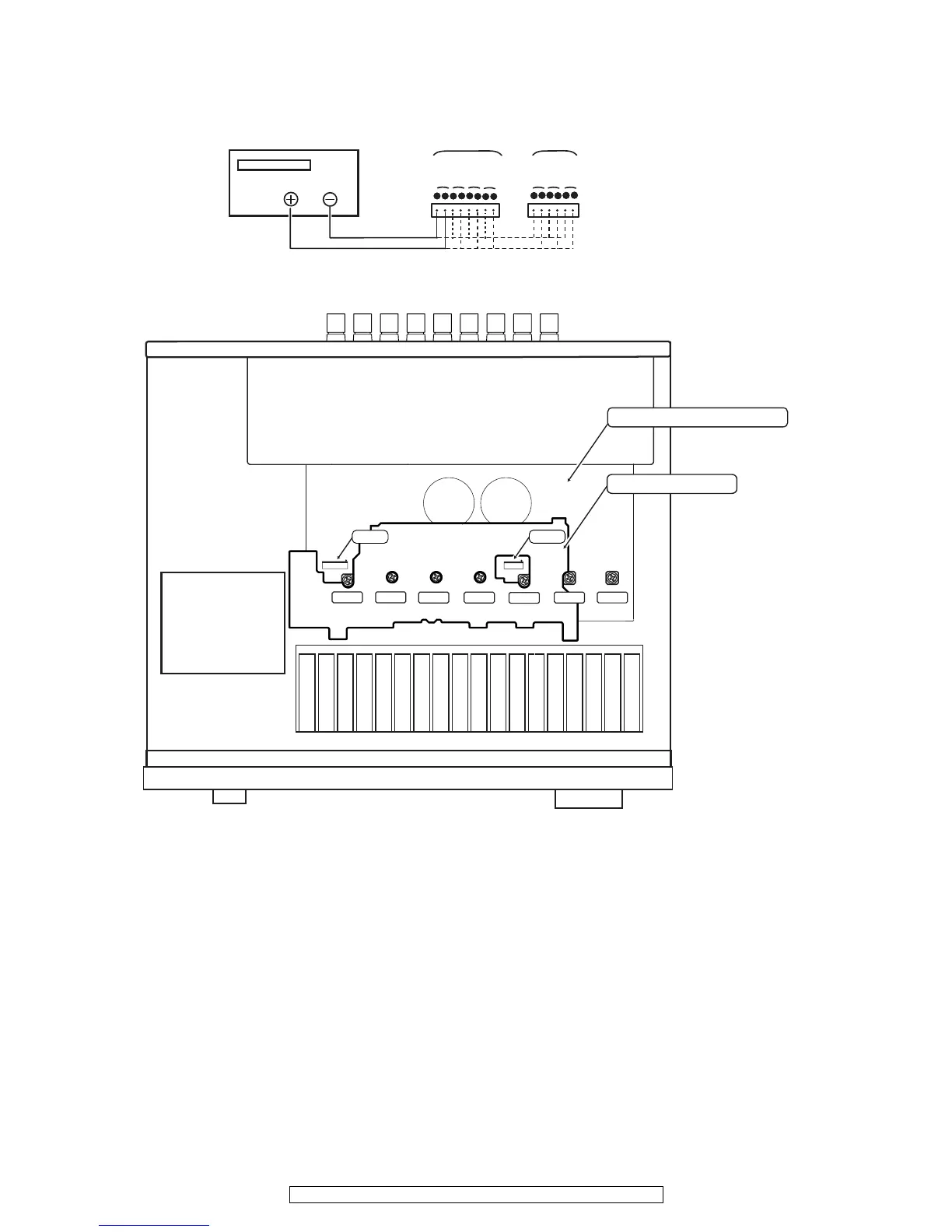

The adjustment volume and connection terminal of 8U-
110030-1 (POWER AMP Unit)P.W.B. under 8U-110041-1
(REG Unit)P.W.B..
Insert an adjustment driver / connection terminal from an ad-
justment aperture of 8U-110041-1 (REG Unit)P.W.B..
SL ch FR ch
FL ch
SR ch
CX063
Cch
SBR ch
SBL ch
CX082
Audio Section
DC Voltmeter
VR406
SBR ch
SBL ch
VR403
FR ch
SR ch
VR401
VR405
SL ch
Cch
VR404
FL ch
VR407
VR402
CX063
CX082
8U-110030-1 POWER AMP Unit
8U-110041-1 REG Unit
8U-110030-1(POWERAMPUnit) 基板の調整ボリュームと接
続端子は 8U-110041-1(REGUnit) 基板の下に有ります。
8U-110041-1(REGUnit) 基板の調整孔から調整ﾄﾞﾗｲﾊﾞｰ / 接続
端子を挿入してください。

Denon AVR-989 Specifications

General

Brand	Denon
Model	AVR-989
Category	Stereo Receiver
Language	English
