Denon AVR-S650H Service Manual

Copy the Service Region Settings from the USB ash drive to this unit.

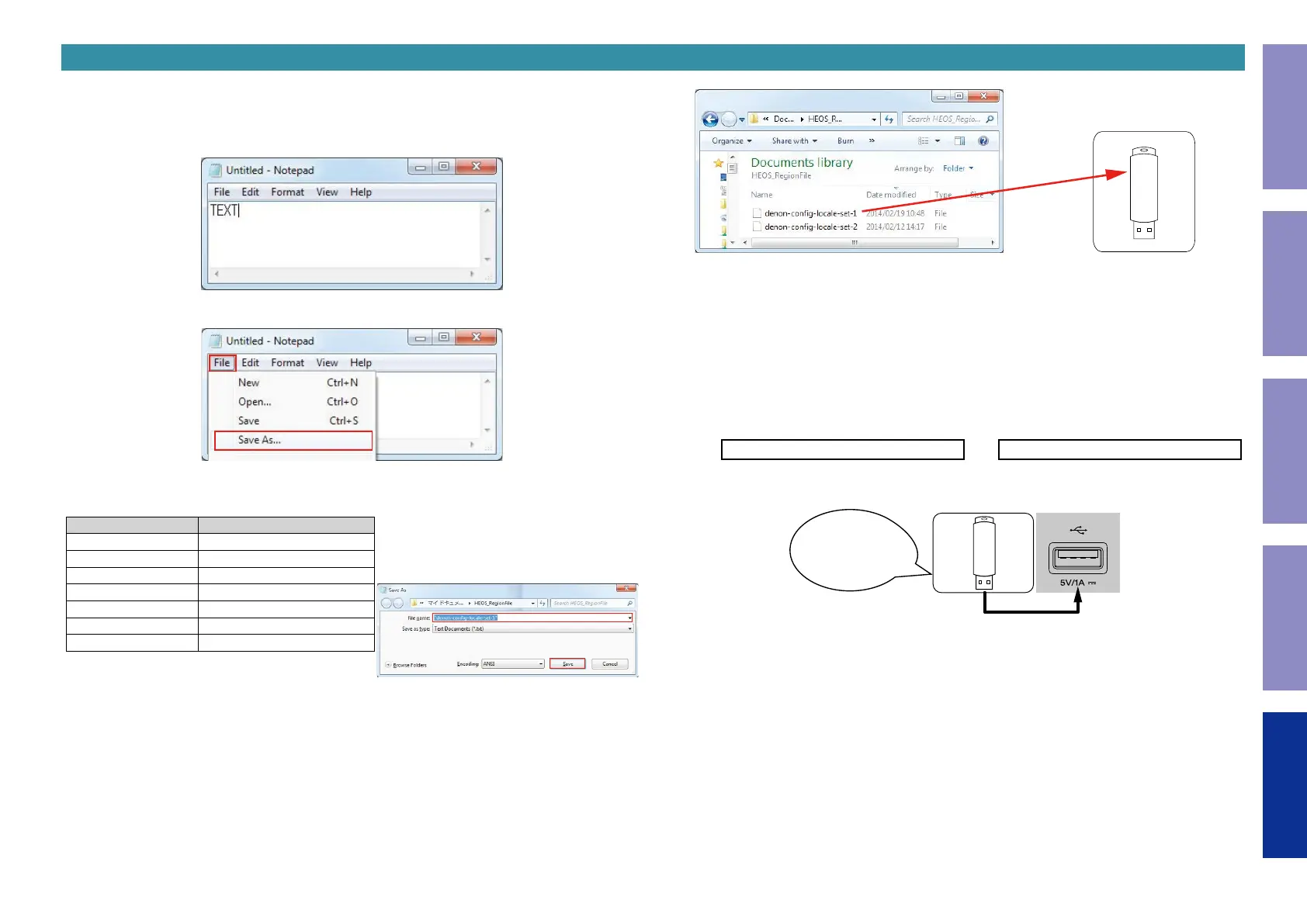

4.1. Creating a Service Region Settings le
(1) Click [Start button] - [Accessories] - [notepad] on the PC to launch the notepad.
(2) Enter "TEXT".
(3) Click "File", and then click "Save As...".
(4) Enter the le name and click the Save button.
NOTE : Enter the le name in double quotation marks. (The le extension is not required.)
Service Region File name
North America "denon-cong-locale-set-1"
Europe "denon-cong-locale-set-2"
Japan "denon-cong-locale-set-3"
Australia "denon-cong-locale-set-4"
Korea "denon-cong-locale-set-5"
China "denon-cong-locale-set-6"
Israel "denon-cong-locale-set-7"
(5) Copy the les created on the USB ash drive.
4.2. Starting Service Region Settings
NOTE :
• Remove the LAN cable from this unit when updating.
(Do not connect to a wired or wireless network.)
• We recommend a USB memory device that has an LED installed.
(1) Press the power button to turn on the power.
(2) Wait for this unit to start up.
(3) Set the input source to HEOS Music.
Check that the display is as shown below.
–TuneIn Internet Radio
or
No Network Connection
Content of the display is scrolled.
(4) Insert the USB ash drive into the USB port.
(5) Wait for at least 10 seconds before removing the USB ash drive.
( If the USB ash drive has an LED, this LED will be ashing. Remove the USB ash drive when the LED
stops ashing.)
copy to USB flash drive
Download firmware
in USB flash drive.
4. Update Method for Service Region Settings
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
138

Denon AVR-S650H Specifications

General

Receiver type	stereo
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.2 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	10 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	5
Composite video in	2
USB ports quantity	1
Speakers connectivity type	RCA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Image formats supported	JPEG
HDCP	Yes
Display	VFL
HDCP version	2.3
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby TrueHD
Volume control	Rotary
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	340 W
Package weight	9525 g
Package width	523 mm
Package height	229 mm

Weight and Dimensions

Depth	330 mm
Width	432 mm
Height	152 mm
Weight	7800 g
