Denon AVR-S650H

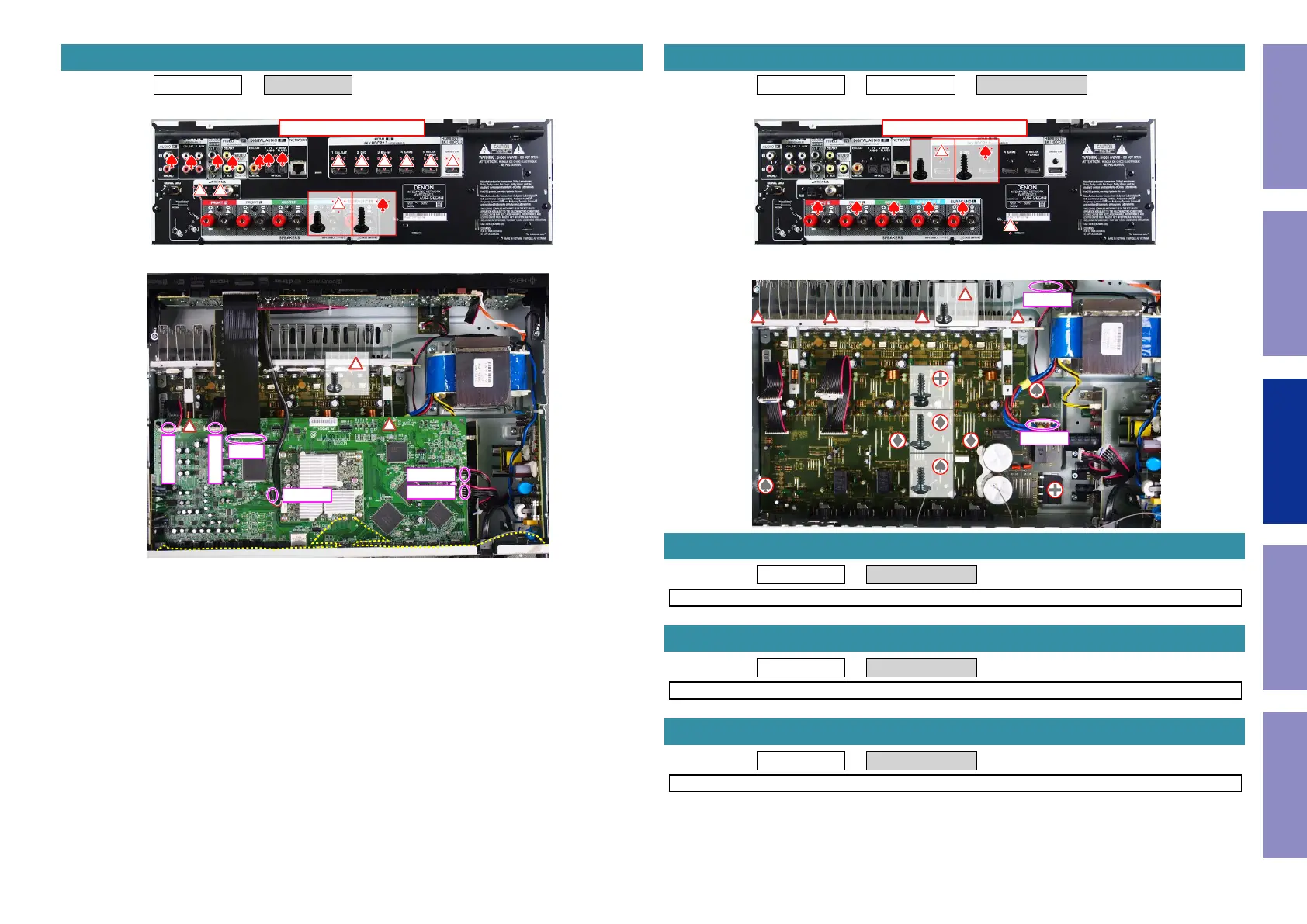

Proceeding : TOP COVER → DIGITAL PCB
(1) Removethescrews.
(2) Removethescrews.RemovetheFFC.Removetheconnector.
2. DIGITAL PCB
↓Shooting direction: A↓
x7x8
x2
FFC
CN813
CN741
CN823
CN753 CN822
Proceeding : TOP COVER → DIGITAL PCB → RADIATOR ASSY
(1) Removethescrews.
(2) Removethescrews.Removetheconnector.
Proceeding : TOP COVER → SMPS PCB
See"EXPLODEDVIEW"forinstructionsonremovingtheSMPSPCB.
Proceeding : TOP COVER → REGULATOR PCB
See"EXPLODEDVIEW"forinstructionsonremovingtheREGULATORPCB.
Proceeding : TOP COVER → POWER TRANS
See"EXPLODEDVIEW"forinstructionsonremovingthetransformer(TRANS).
3. RADIATOR ASSY
↓Shooting direction: A↓
x5x1
x2
x2
x4
x1
CN502
CN104
4. SMPS PCB
5. REGULATOR PCB
6. POWER TRANS
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
61
