Denon AVR-S650H Service Manual

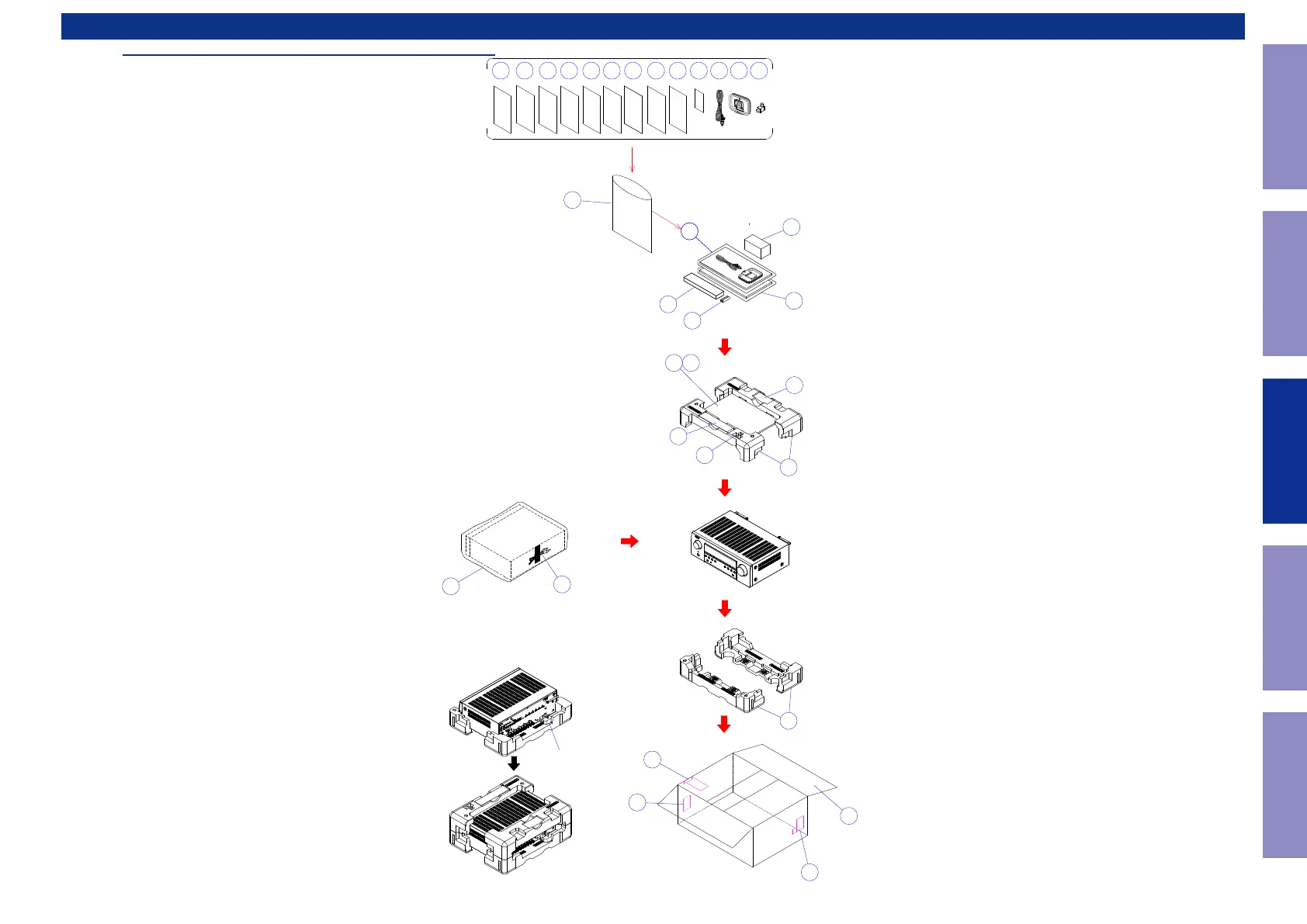

PACKAGING VIEW
Parts List :
http://dmedia.dmglobal.com/Document/DocumentDetails/25662
11
10
11
4
2
1
5 9
3
8
6
7
5
5-1
5-2 5-3 5-4 5-5 5-6 5-7 5-8 5-9
5-10 5-11 5-12 5-13
UK plug Adaptor
12
5-14
8
7
9
5
6
z
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
63

Denon AVR-S650H Specifications

General

Receiver type	stereo
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.2 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	10 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	5
Composite video in	2
USB ports quantity	1
Speakers connectivity type	RCA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Image formats supported	JPEG
HDCP	Yes
Display	VFL
HDCP version	2.3
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby TrueHD
Volume control	Rotary
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	340 W
Package weight	9525 g
Package width	523 mm
Package height	229 mm

Weight and Dimensions

Depth	330 mm
Width	432 mm
Height	152 mm
Weight	7800 g
