Denon AVR-X1100W User Manual

Connecting speakers
Install speakers and connect them to this unit. (v p. 25, 28)

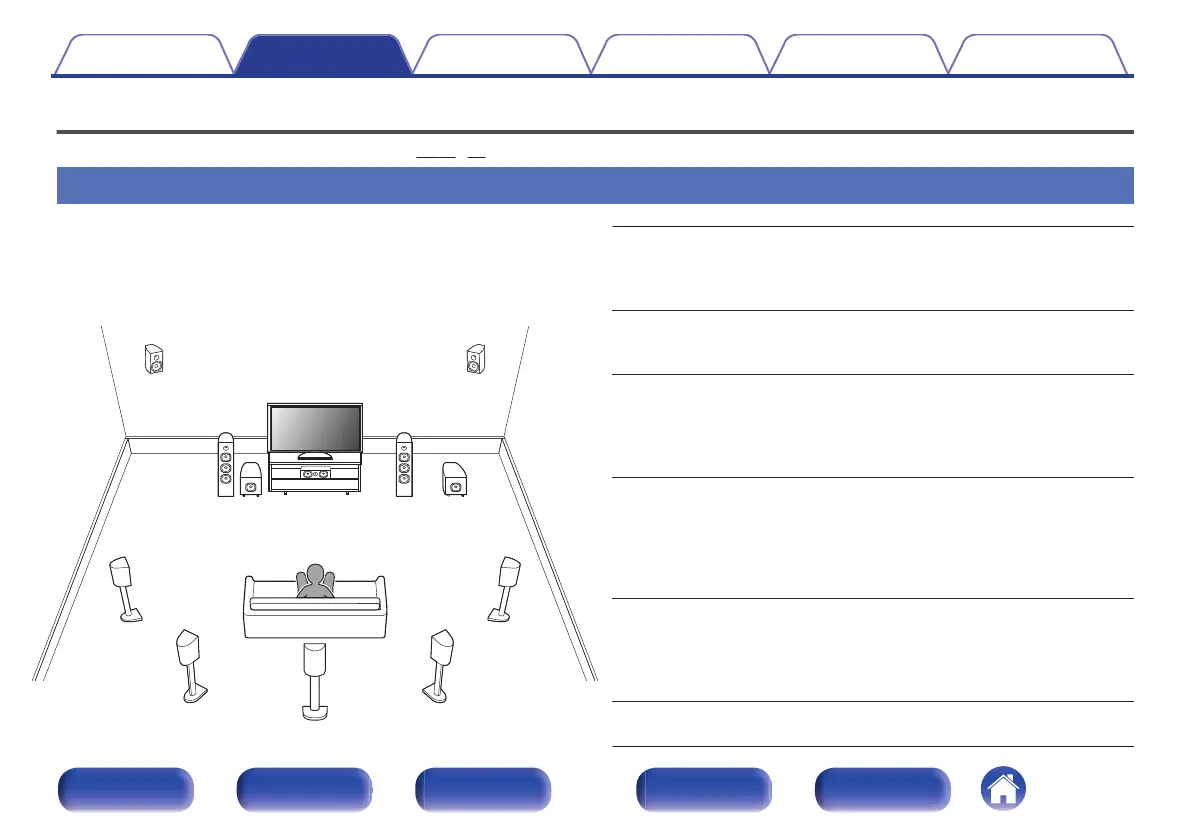

Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.
Speaker installation is explained using this example of a typical
installation.
.
FHL
FL
SW1
C
SL
SBL
FHR
FR
SR
SBR
SB
SW2
FL/FR (Front
speaker left/right):
Place the FRONT left and right speakers an
equal distance from the main listening position.
The distance between each speaker and your TV
should also be the same.
C (Center
speaker):
Place the CENTER speaker in front of and at the
center of the TV, between the front left and right
speakers.
SL/SR (Surround
speaker left/right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the
main listening position. If you don’t have
surround back speakers, move the surround
speakers slightly behind your listening position.
SBL/SBR
(Surround back
speaker left/right):
Place the SURROUND BACK left and right
speakers an equal distance from the main
listening position and directly behind the main
listening position. When using a single surround
back speaker (SB), place it directly behind the
listening position.
FHL/FHR (Front
height speakers
left/right):
Place the FRONT HEIGHT left and right
speakers just outside of the front left and right
speakers. Mount them as close to the ceiling as
possible and aim them towards the listening
position.
SW 1/2 (Subwoofer) :
Place the SUBWOOFER at a convenient location
near the front speakers.
Contents Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
