Denon AVR-X2600H Series User Manual

Check item(3-8.1.). Check the power supply volt-
age. :
Does the power supply voltage of the DSP [U1073]
indicate the appropriate voltage (1.0V, 3.3V)?
The test points are as follows.
U1073
C2138
C2102
1.1V
3.3V
Check item(3-8.2.). Check the power supply volt-
age. :
Check the power supply components [U1067,
U1068, U1078] on the substrate and peripheral
pattern.
If there is no problem, remove the DSP [U1073]
from the substrate and measure the voltage at
the test point of check item (3-8.1.).
Is the voltage correct (1.0V or 3.3V)?
Check the power supply voltage.
Checking device. [U1073 : CS49844A]
Go to next page.

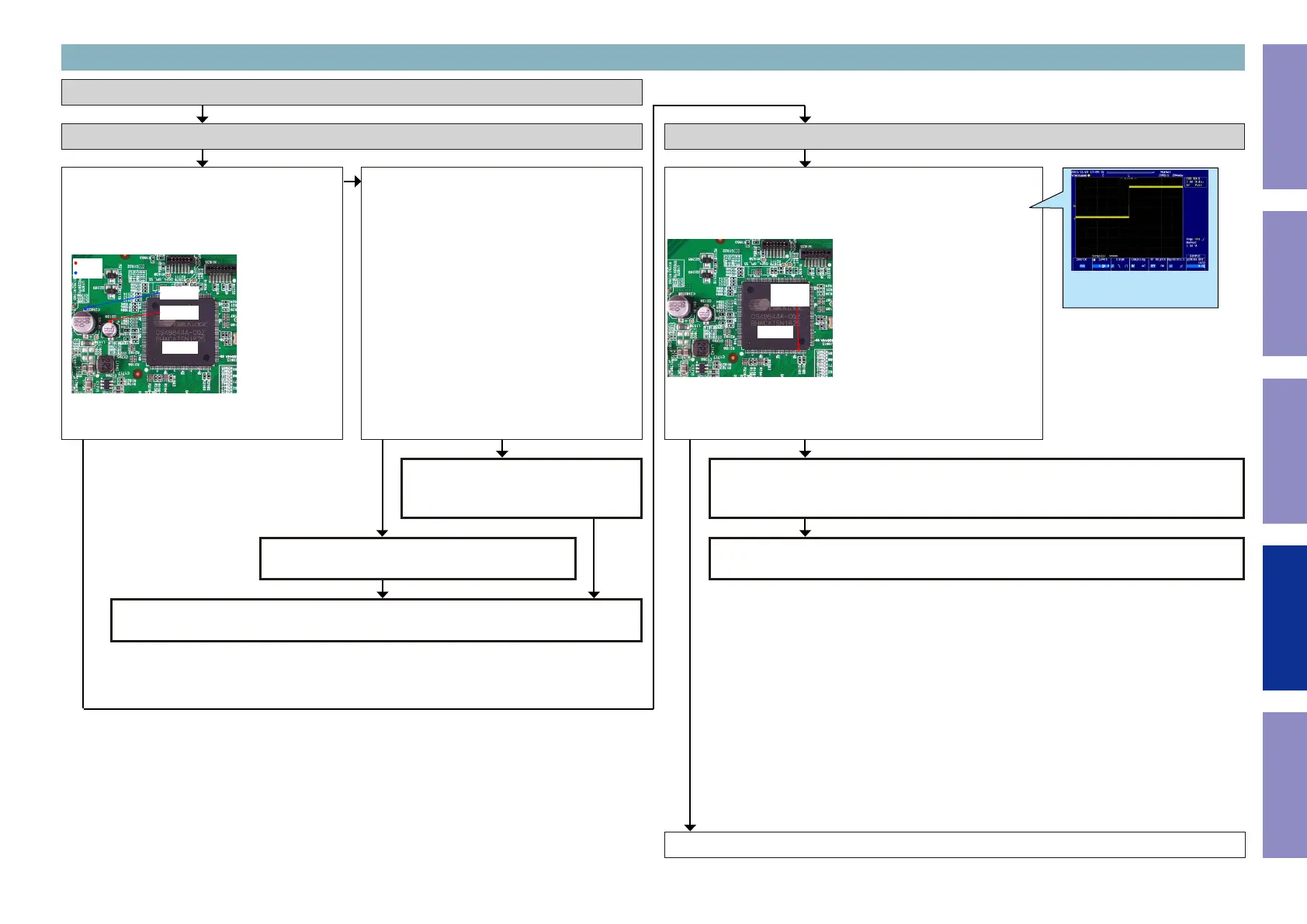

3-8. Error Code H1-08 failure detection procedure
NO
DSP [U1073] is faulty.
Replace with a new device.
Recheck from check item (3.1.).
If it does not work, replace the PCB.
The power supply circuit is faulty.
Replace the PCB.
NOYES
YES
Check item(3-8.3.). Checking the reset :
Check the CPU.
Is the waveform of the TP near the DSP [U1073] correct (like the
one shown in the diagram) when the power is turned on?
U1073
RESET
32pin
Checking the reset waveform.
Recheck from check item (3.1.).
If it does not work, replace the PCB.
Check the reset circuit between CPU [U1018] and DSP [U1073].
If there is no problem, the DSP [U1073] is faulty.
Replace with a new device.
NOYES
Examples of conrmation waveform
Voltage scale：1.0V/div
Time scale：20ms/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
102

Denon AVR-X2600H Series Specifications

General

Channels	7.2
Speaker Impedance	4-16 ohms
HDMI Inputs	8 (1 front)
HDMI Outputs	2
HDCP Support	HDCP 2.3
HDR Support	HDR10, HLG, Dolby Vision
Phono Input	Yes
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Bluetooth Version	4.1
Supported Audio File Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Multi-Room Audio	HEOS
Voice Assistant Support	Amazon Alexa, Google Assistant, Apple Siri
Supported Audio Formats	Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio
Power Output per Channel	95W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Analog Audio Outputs	2
Other Ports	USB, Ethernet
Speaker Connectors	Binding Posts
Wireless Connectivity	Wi-Fi
Internet Radio Services	TuneIn
Video Support	4K/60Hz
Audio Return Channel (ARC)	Yes (eARC)
Weight	9.5 kg
