Denon AVR-X2600H Series User Manual

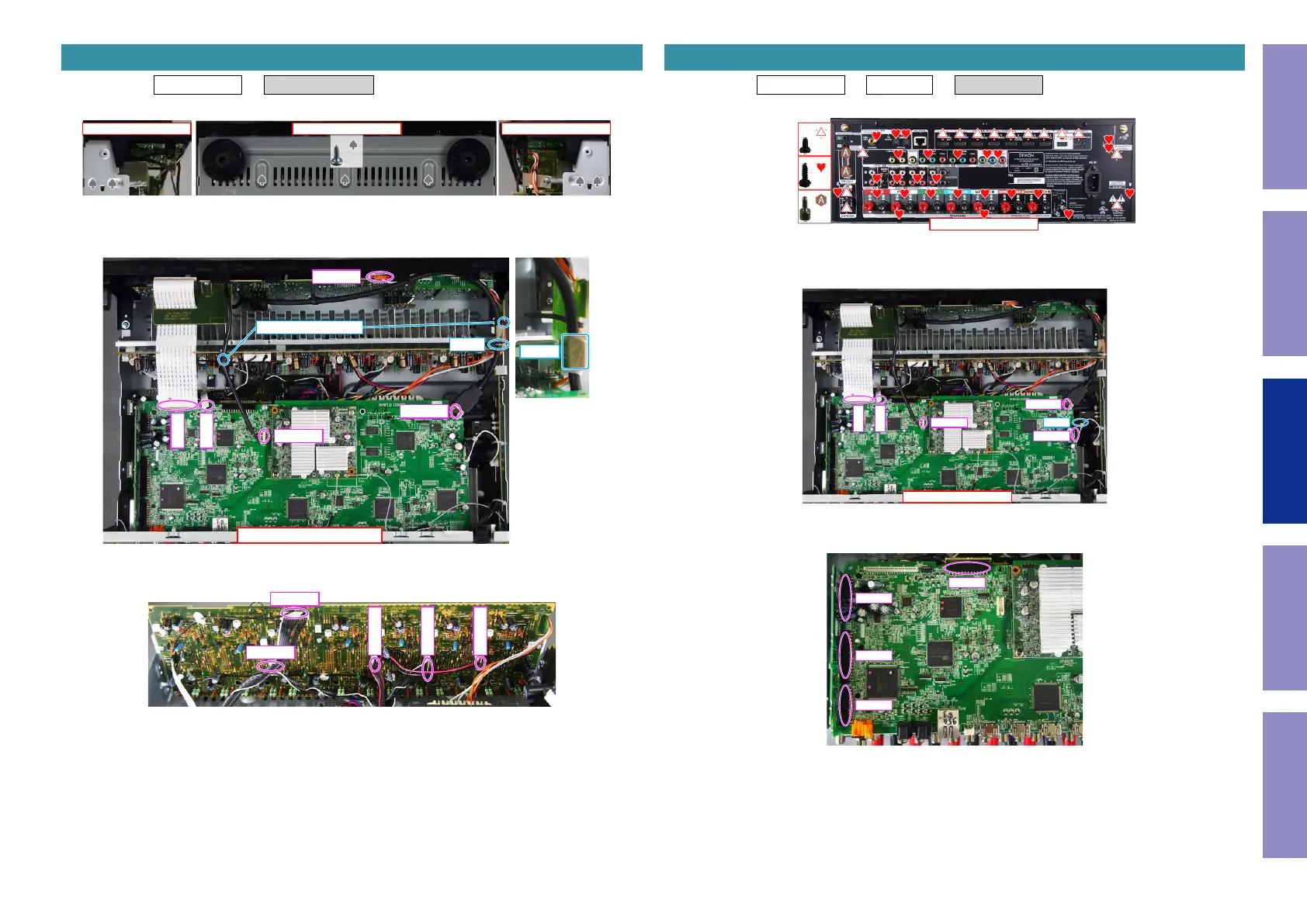

Proceeding : TOP COVER → RADIATOR ASSY
(1) Removethescrews.
(2) Cutthewireclamps,thenremovetheCORDHOLDERsandconnectors.
RemovetheTAPE.RemovetheFFC.
(3) Removetheconnector.
2. RADIATOR ASSY
View from the bottom
↓Shooting direction: C↓ ↑Shooting direction: D↑
x7
↑Shooting direction: A↑
CP4400
FFC FFC
N1008
N1000
CORD HOLDER
CUT
TAPE
CP401
CP402 CP403 CP405
CP404
Proceeding : TOP COVER → WiFi ANT → DIGITAL PCB
(1) Removethescrews.
(2) Removethescrews.Cutthewireclamp,thenremovetheCORDHOLDERandconnector.
RemovetheFFC.
(3) Removetheconnector.
3. DIGITAL PCB
↑Shooting direction: A↑
x26
x14
x2
x2 E3 ONLY
↑Shooting direction: A↑
FFC FFC
N1008
N1000
N1033
CUT
N1039
N1014
N1016
N1020
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
70

Denon AVR-X2600H Series Specifications

General

Channels	7.2
Speaker Impedance	4-16 ohms
HDMI Inputs	8 (1 front)
HDMI Outputs	2
HDCP Support	HDCP 2.3
HDR Support	HDR10, HLG, Dolby Vision
Phono Input	Yes
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Bluetooth Version	4.1
Supported Audio File Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Multi-Room Audio	HEOS
Voice Assistant Support	Amazon Alexa, Google Assistant, Apple Siri
Supported Audio Formats	Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio
Power Output per Channel	95W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Analog Audio Outputs	2
Other Ports	USB, Ethernet
Speaker Connectors	Binding Posts
Wireless Connectivity	Wi-Fi
Internet Radio Services	TuneIn
Video Support	4K/60Hz
Audio Return Channel (ARC)	Yes (eARC)
Weight	9.5 kg
