Denon AVR-X2600H Series User Manual

Check the power supply voltage. (HDMI Tx)
Check item(3-1.1.). Check the power supply voltage. :
Does the power supply voltage of the HDMI Tx [U1039] indicate the correct voltage (1.1V, 3.3V)?
The test points are as follows.
HDMI Tx
U1039
112pin
38pin
1.1V
3.3V
Check item(3-1.2.). Check the power supply voltage. :
Check the power components [U1064/U1066] and the pattern on
the substrate.
If there is no problem, remove the HDMI Tx [U1039] from the sub-
strate and measure the voltage at the test point of check item (3-
1.1.).
Is the voltage correct (1.1V or 3.3V)?
Replace with a new device.
The power supply circuit is
faulty.
Replace the PCB.
Recheck from check item (3.1.)
If it does not work, replace the PCB.
Checking device. [U1039 : MN864788]

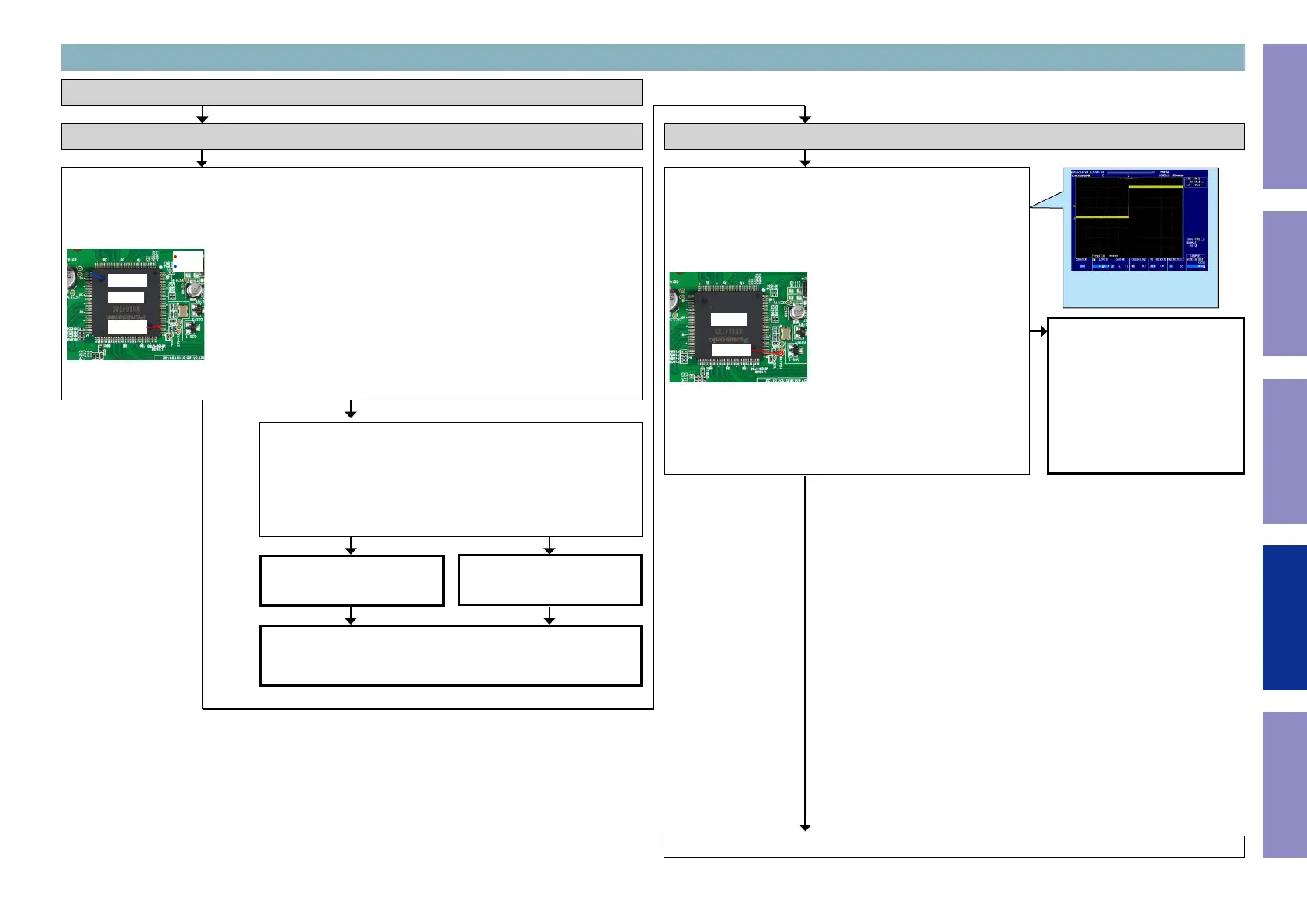

3-1. Error Code H1-01 failure detection procedure
NOYES
NOYES
Go to next page.
YES
Checking the reset waveform. (HDMI Tx)
Check item(3-1.3.). Checking the reset waveform :
Check the waveform.
Is the "RESET" waveform of the TP near the HDMI Tx [U1039]
correct (like the one shown in the diagram) when the power is
turned on?
HDMI Tx
U1039
RESET
Check the reset circuit between
CPU [U1018] and HDMI Tx
[U1039].
If there is no problem, the HDMI
Tx [U1039] is faulty.
Replace with a new device.
Recheck from check item (3.1.).
If it does not work, replace the
PCB.
NO
Examples of conrmation waveform
Voltage scale：1.0V/div
Time scale：20ms/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
92

Denon AVR-X2600H Series Specifications

General

Channels	7.2
Speaker Impedance	4-16 ohms
HDMI Inputs	8 (1 front)
HDMI Outputs	2
HDCP Support	HDCP 2.3
HDR Support	HDR10, HLG, Dolby Vision
Phono Input	Yes
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Bluetooth Version	4.1
Supported Audio File Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Multi-Room Audio	HEOS
Voice Assistant Support	Amazon Alexa, Google Assistant, Apple Siri
Supported Audio Formats	Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio
Power Output per Channel	95W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Analog Audio Outputs	2
Other Ports	USB, Ethernet
Speaker Connectors	Binding Posts
Wireless Connectivity	Wi-Fi
Internet Radio Services	TuneIn
Video Support	4K/60Hz
Audio Return Channel (ARC)	Yes (eARC)
Weight	9.5 kg
