Denon AVR-X2600H Series User Manual

YES
YES
YES

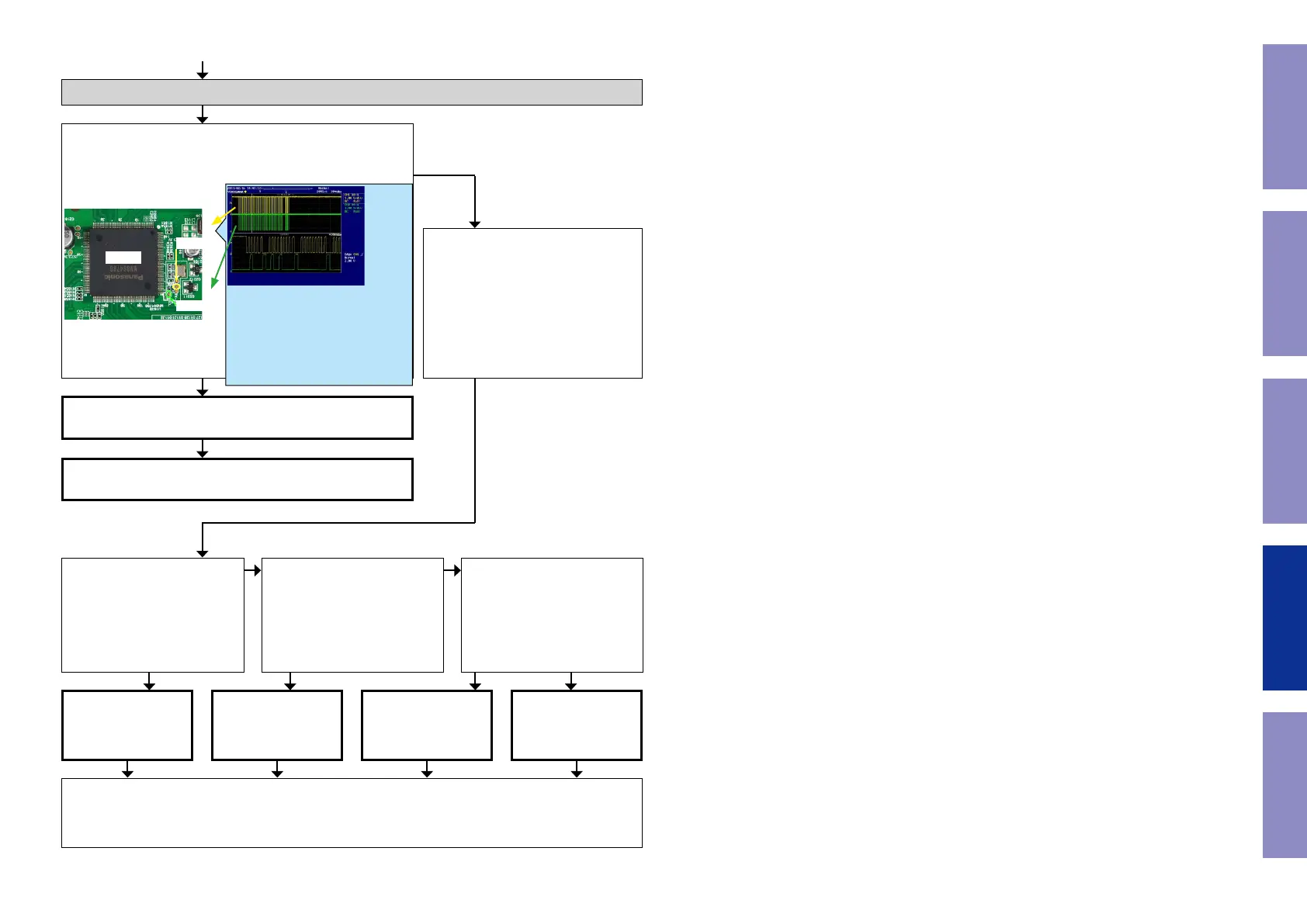

Check the I2C communication line. (HDMI Tx)
Check item(3-1.4.). Check the I2C communication line :
Check the CPU.
Is the "I2C" waveform of the TP near the HDMI Tx [U1039]
correct (like the one shown in the diagram) when the power is
turned on?
U1039
HSDA
HSCL
HDMI Rx1 [U1000] is
faulty.
Replace with a new
device.
HDMI Rx2 [U1003] is
faulty.
Replace with a new
device.
HDMI Tx [U1039] is
faulty.
Replace with a new
device.
The CPU [U1018] is
faulty.
Replace with a new
device.
HDMI Tx [U1039] is faulty.
Replace with a new device.
Recheck from check item (3.1.).
If it does not work, replace the PCB.
Check item(3-1.5.). Check the I2C com-
munication line :
Check HDMI Rx [U1000 or U1003],
HDMI Tx [U1039] and CPU [U1018]
patterns as well as soldering.
If there is no problem, go to the next
step.
Check the HDMI Rx2.
Remove the damping resistor
[R1169/R1170] of [U1003].
Is the "I2C" waveform correct?
Recheck from check item (3.1.)
If it does not work, replace the PCB.
Check the HDMI Tx.
Remove the damping resistor
[R1882/R1883] of [U1039].
Is the "I2C" waveform correct?
Check the HDMI Rx1.
Remove the damping resistor
[R1061/R1062] of [U1000].
Is the "I2C" waveform correct?
NO
NO NO
YES YES YES NO
*The diagram shows an example.
(Signal patterns vary depending on the tim-
ing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
- SCL frequency (400kHz normally)
Voltage scale：1.0V/div
Time scale：10us/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
93

Denon AVR-X2600H Series Specifications

General

Channels	7.2
Speaker Impedance	4-16 ohms
HDMI Inputs	8 (1 front)
HDMI Outputs	2
HDCP Support	HDCP 2.3
HDR Support	HDR10, HLG, Dolby Vision
Phono Input	Yes
Digital Audio Inputs	2 Optical, 1 Coaxial
Analog Audio Inputs	4
Bluetooth Version	4.1
Supported Audio File Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Multi-Room Audio	HEOS
Voice Assistant Support	Amazon Alexa, Google Assistant, Apple Siri
Supported Audio Formats	Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio
Power Output per Channel	95W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Frequency Response	10Hz - 100kHz
Analog Audio Outputs	2
Other Ports	USB, Ethernet
Speaker Connectors	Binding Posts
Wireless Connectivity	Wi-Fi
Internet Radio Services	TuneIn
Video Support	4K/60Hz
Audio Return Channel (ARC)	Yes (eARC)
Weight	9.5 kg
