HDMI Tx [U1039] is faulty.
Replace with a new device.
Recheck from check item (3.3.).
If it does not work, replace the PCB.
HDMI Tx [U1039] is faulty.
Replace with a new device.
Check for a short circuit in the TMDS line.
If there is no problem, the HDMI Tx
[U1039] is faulty.
Replace with a new device.
Check for a short circuit in the DDC line.
If there is no problem, the HDMI Tx
[U1039] is faulty.
Replace with a new device.

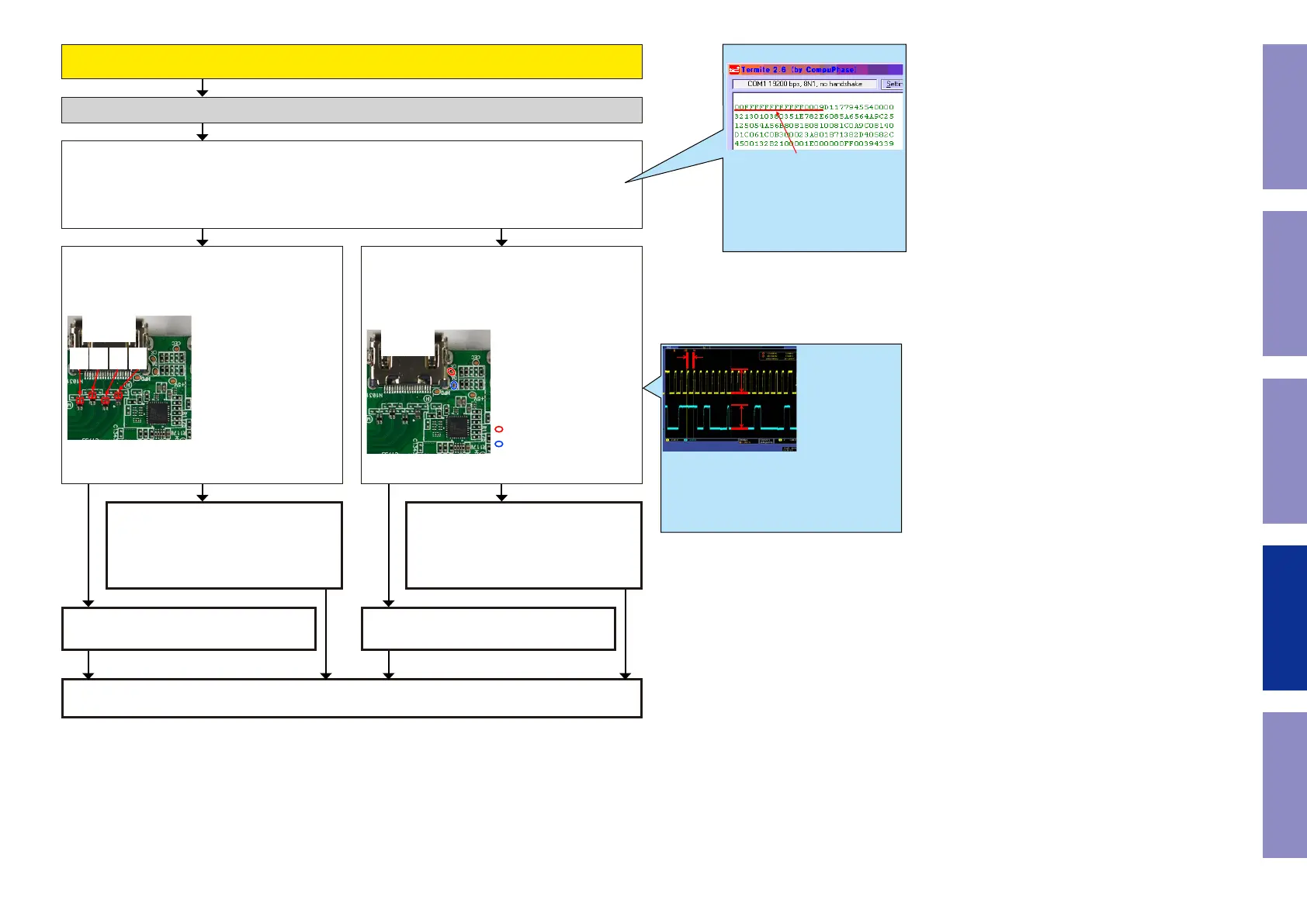

When the results of check item (3-13.4.) are "30"
(Detection of HPD is OK / Detection of RXSENSE is OK )
Check item(3-13.5.). Check the Monitor EDID :
① Unplug the AC cord. Plug the AC cord into a power outlet.
② Send the transmission command "m_1" from Termite.exe.
Are the rst eight bytes of the returned value "00FFFFFFFFFFFF00"?
Check item(3-13.6.). Checking the TMDS :
Check the TMDS waveform at the following test
point.
N1031
HDMI OUT
[MONITOR1]
D2+ D2- D1+ D1- D0+ D0- CK+ CK-
Check item(3-13.7.). Check the communication :
Are waveforms of "DDCCLK and DDCSDA" ob-
served at the test point near the HDMI output
terminal [N1031]?
N1031
HDMI OUT
[MONITOR1]
DDCSCK
DDCSDA
Checking the EDID register. (Monitor 1)
YES
NOYES
NO
NOYES
Example
The rst eight bytes are nor-
mally "00FFFFFFFFFFFF00".
*If the AVR and the TV are not
connected via HDMI, the cor-
rect register value cannot be
veried.
m_1
less than 100KHz
5V
5V
This diagram shows an example of the DDC communica-
tion waveform.
-The high level voltage is 5V.
-The frequency of the DDC CLK is 100KHz or less.
Check at each test point.
Voltage scale：2.0V/div
Time scale：40us/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
116
