Denon AVR-X3500H Service Manual

YES
YES
YES

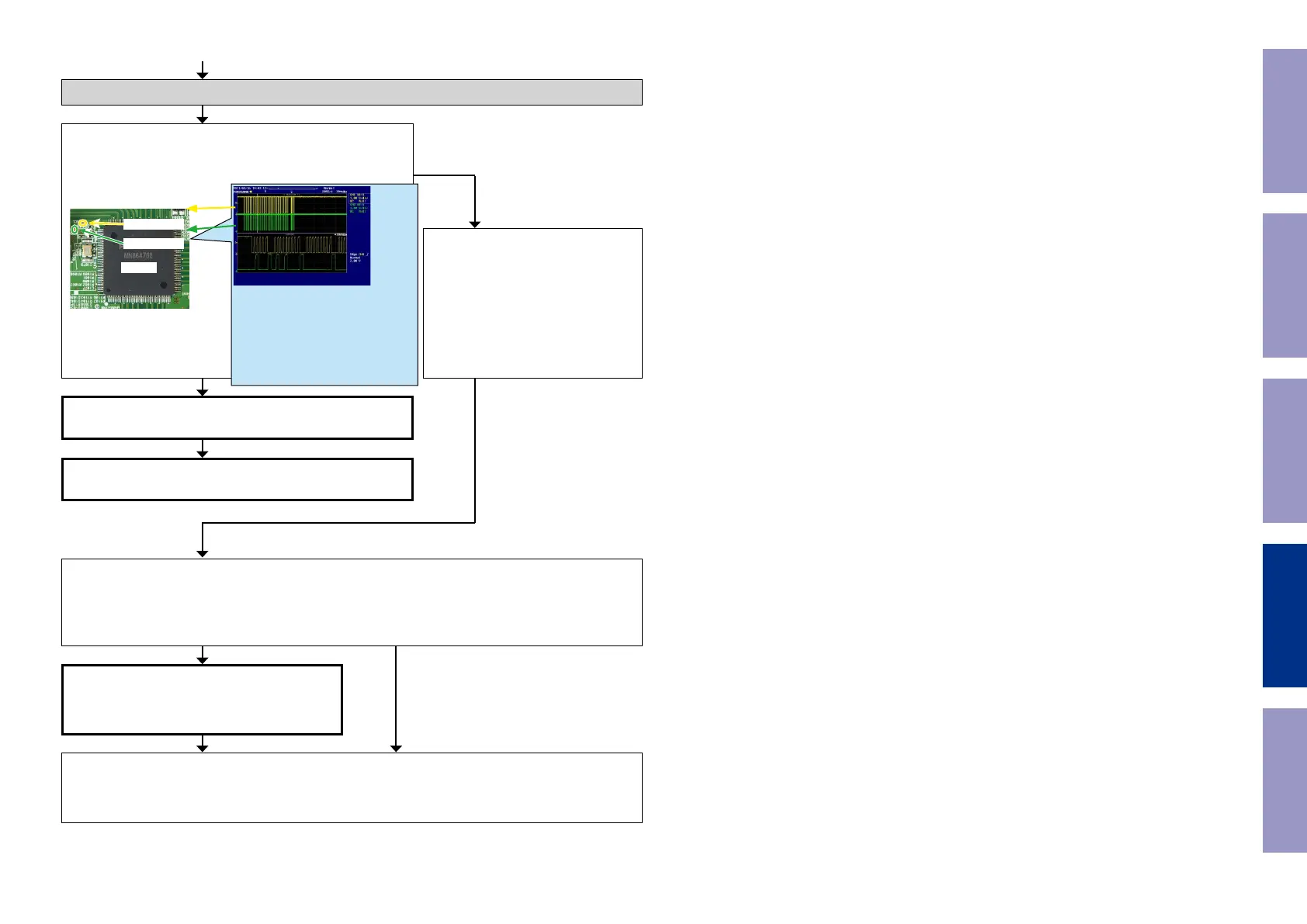

Check the I2C communication line. (HDMI SW2)
Check item(3-3.4.). Check the I2C communication line :
Check the CPU.
Is the "I2C" waveform of the TP near the HDMI SW2 [U1000]
correct (like the one shown in the diagram) when the power is
turned on?
U1000
I2C(HSCL)
I2C(HSDA)
HDMI SW2 [U1000] is faulty.
Replace with a new device.
Recheck from check item (3.1.)
If it does not work, replace the PCB.
Check item(3-3.5.). Check the I2C com-
munication line :
Check HDMI SW2 [U1000 or U1003],
HDMI Tx [U1001] and CPU [U1018]
patterns as well as soldering.
If there is no problem, go to the next
step.
NO
*The diagram shows an example.
(Signal patterns vary depending on the tim-
ing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
- SCL frequency (400kHz normally)
Voltage scale : 1.0V/div
Time scale : 10us/div
HDMI SW2 [U1000] is faulty.
Replace with a new device.
Check the HDMI SW2.
Remove the damping resistor [R1061/R1062] of [U1000].
Is the "I2C" waveform correct?
Recheck from check item (3.1.)
If it does not work, replace the PCB.
YES NO
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
102

Denon AVR-X3500H Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	215 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, Spotify, Tidal, TuneIn, iHeartRadio
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
HDMI in	8
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Speakers connectivity type	Binding post
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	390 mm
Width	434 mm
Height	167 mm
Weight	10800 g
