Denon AVR-X3500H Service Manual

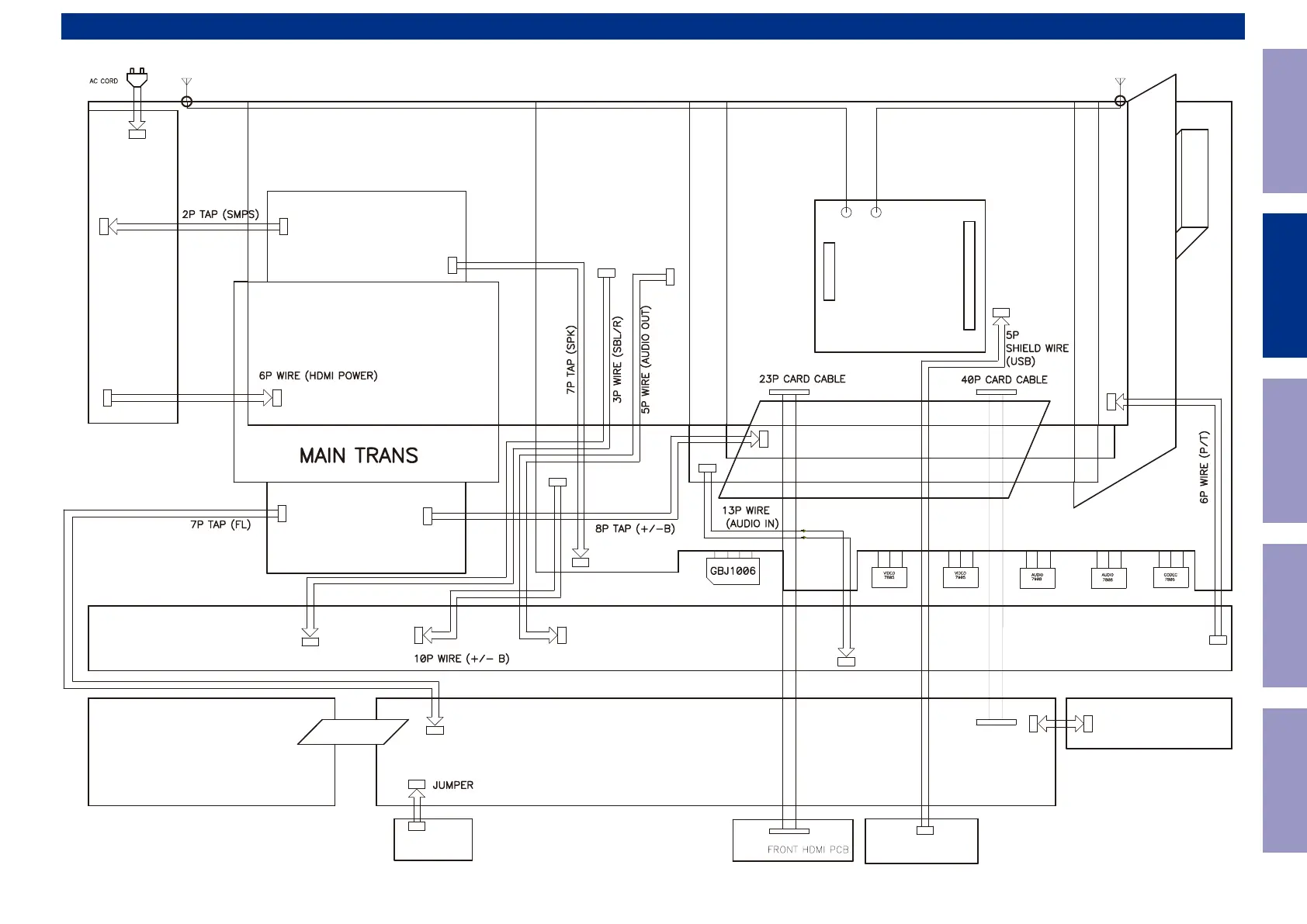

WIRING DIAGRAM
23P
SMPS PCB
H/P PCB
FRONT PCB
USB PCB
VIDEO PCB
INPUT PCB
FRONT CNT PCB
LEGO V4.0
MODULE
40P
SIDE_CNT PCB
TUNER PACK
SELECT PCB
7CH AMP PCB
SPK PCB
AVR_X3500 WIRE DIAGRAM
VOLUME PCB
DIGITAL PCB
WiFi_ANT ＷiFi/BT_ANT
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
53

Denon AVR-X3500H Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	215 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, Spotify, Tidal, TuneIn, iHeartRadio
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
HDMI in	8
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Speakers connectivity type	Binding post
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	390 mm
Width	434 mm
Height	167 mm
Weight	10800 g
