Denon AVR-X3500H Service Manual

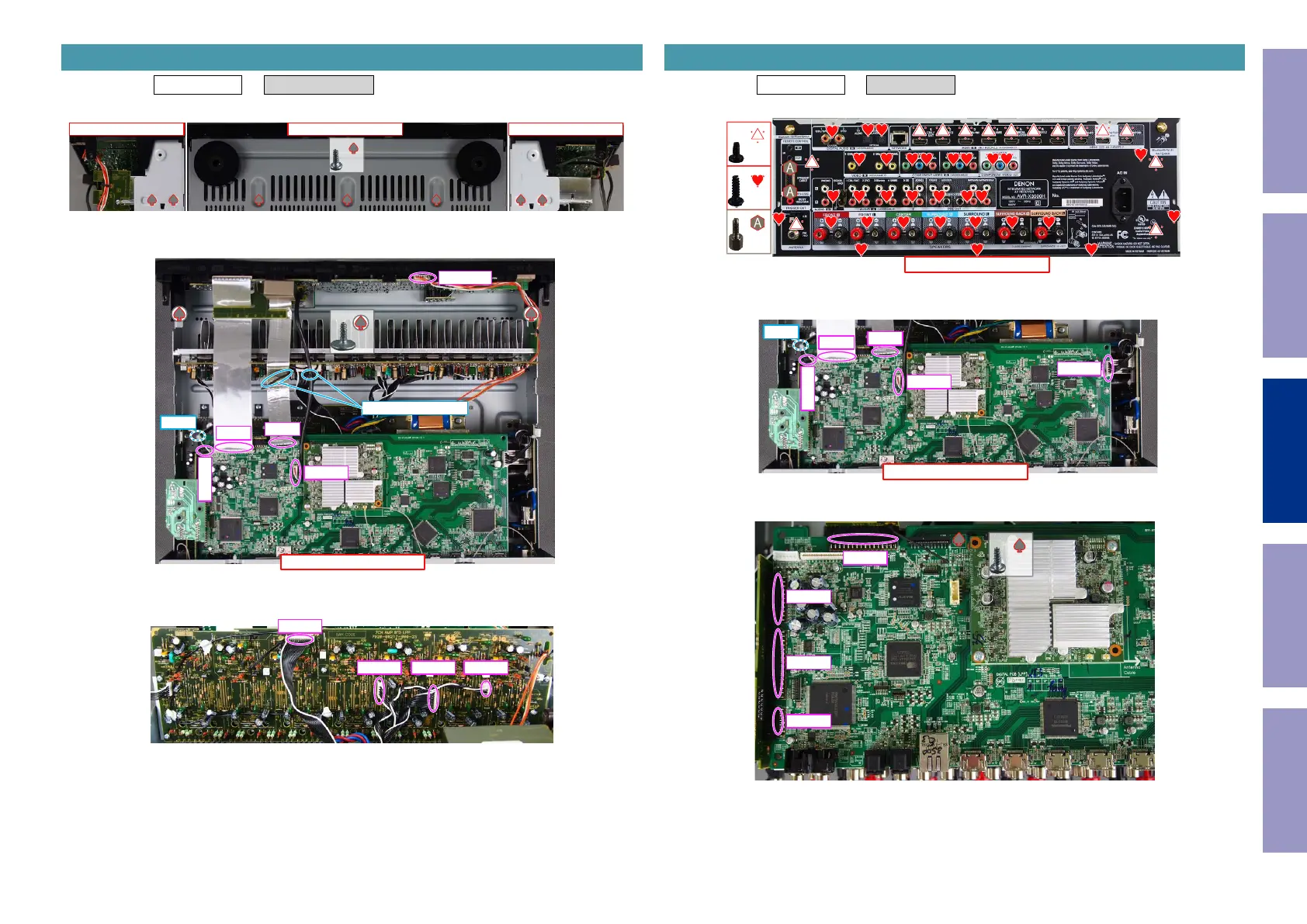

Proceeding : TOP COVER → RADIATOR ASSY
(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connectors. Remove the FFC.
(3) Remove the connector.
2. RADIATOR ASSY
View from the bottom
↓Shooting direction: C↓
↓Shooting direction: D↓
x7
↑Shooting direction: A↑
x2
CP4400
FFC
FFC
U1008
N1019
CORD HOLDER
CUT
CP401
CP402 CP403 CP405
Proceeding : TOP COVER → DIGITAL PCB
(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connectors.
Remove the FFC.
(3) Remove the screws. Remove the connector.
3. DIGITAL PCB
↑Shooting direction: A↑
x31
x14
x2
↑Shooting direction: A↑
FFC
FFC
U1008
N1019
U1033
CUT
x1
N1018
N1022
N1023
N1040
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
74

Denon AVR-X3500H Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	215 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, Spotify, Tidal, TuneIn, iHeartRadio
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
HDMI in	8
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Speakers connectivity type	Binding post
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	390 mm
Width	434 mm
Height	167 mm
Weight	10800 g
