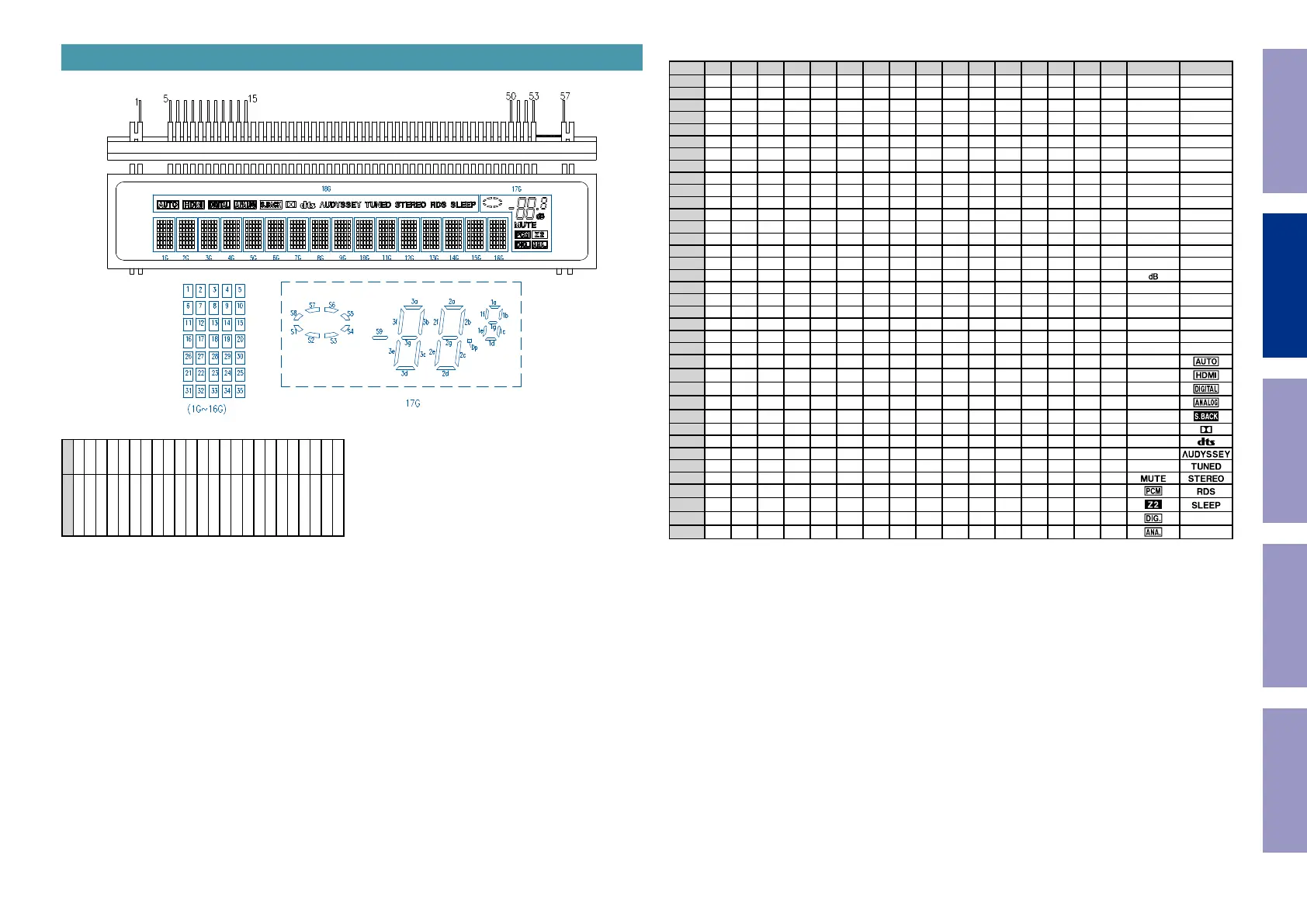

2. FL DISPLAY

FLD (CIG25-1801N) (FRONT : FL4400)

PIN CONNECTION

PIN NO.

16 - 49

CONNECTION

LGND

PGND

VDD

OSC

RESET

TSA

TSB

18G

17G

Q17G

Q18G

NOTE

1) F1, F2 ----Filament

2) NP ------No pin

3) NX ------No extend pin

4) LGND ----Logic GND pin

5) PGND ----Power GND pin

6) VH ------High Voltage Supply pin

7) VDD ------Logic Voltage Supply pin

8) CP ----Shift Register Clock

9) DA ----Serial Data Input

10) TSA, B --Test pin

11) OSC ----Pin for self-oscillation

12) 17G, 18G ---Grid

13) Q17G, Q18G ---Driver Output Port.

ANODE CONNECTION

1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G 15G 16G 17G(AD3) 18G(AD4)

SEGA1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 S9 -

SEGA2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3d -

SEGA3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2d -

SEGA4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 3e -

SEGA5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 2e -

SEGA6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 3c -

SEGA7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 2c -

SEGA8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 3g -

SEGA9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 2g -

SEGA10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 3f -

SEGA11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 2f -

SEGA12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 3b -

SEGA13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 2b -

SEGA14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14 3a -

SEGA15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 2a -

SEGA16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 Dp -

SEGA17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17

SEGA18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 1d -

SEGA19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 19 1e -

SEGA20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 1c -

SEGA21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 1g -

SEGA22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 1f -

SEGA23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 1b -

SEGA24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 1a

SEGA25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 S1

SEGA26 26 26 26 26 26 26 26 26 26 26 26 26 26 26 26 26 S2

SEGA27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 S3

SEGA28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 S4

SEGA29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 S5

SEGA30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 S6

SEGA31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 31 S7

SEGA32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 S8

SEGA33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33

SEGA34 34 34 34 34 34 34 34 34 34 34 34 34 34 34 34 34

SEGA35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35

AD1 - - - - - - - - - - - - - - - - -

AD2 - - - - - - - - - - - - - - - -
