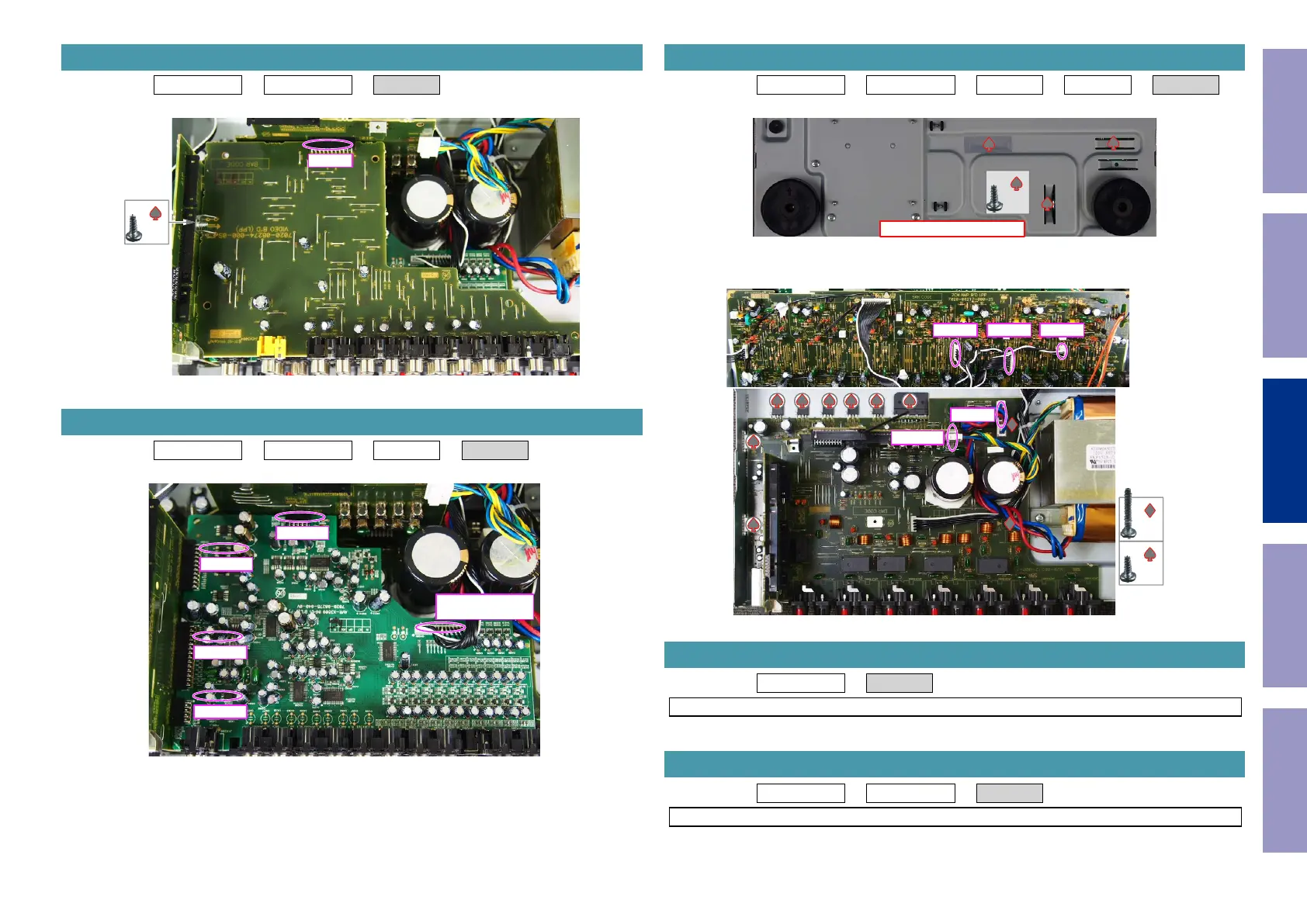

Proceeding : TOP COVER DIGITAL PCB VIDEO PCB
(1) Remove the screws. Remove the connector.
Proceeding : TOP COVER DIGITAL PCB VIDEO PCB INPUT PCB
(1) Remove the connector.
4. VIDEO PCB
N5000
x1
5. INPUT PCB
CN4203
CN4202
CN4204
CN4201
CN4200
from AMP PCB
Proceeding : TOP COVER DIGITAL PCB VIDEO PCB INPUT PCB MAIN PCB
(1) Remove the screws.
(2) Remove the screws. Remove the connector.
Proceeding : TOP COVER SMPS
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
Proceeding : TOP COVER DIGITAL PCB SMPS
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
6. MAIN PCB
View from the bottom
x3
x8
x2
CP5003
CP402 CP403 CP405
CP401
7. SMPS PCB
8. TRANS
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
75
