Denon AVR-X3500H Service Manual

Check item(3-8.1.). Check the power supply volt-
age. :
Does the power supply voltage of the DSP [U1073]
indicate the appropriate voltage (1.0V, 3.3V)?
The test points are as follows.
U1073
C2138
C1795
1.0V
3.3V
Check item(3-8.2.). Check the power supply volt-
age. :
Check the power supply components [U1067,
U1068, Q1080] on the substrate and peripheral
pattern.
If there is no problem, remove the DSP [U1073]
from the substrate and measure the voltage at
the test point of check item (3-8.1.).
Is the voltage correct (1.0V or 3.3V)?
Check the power supply voltage.
Checking device. [U1073 : CS49844A]
Go to next page.

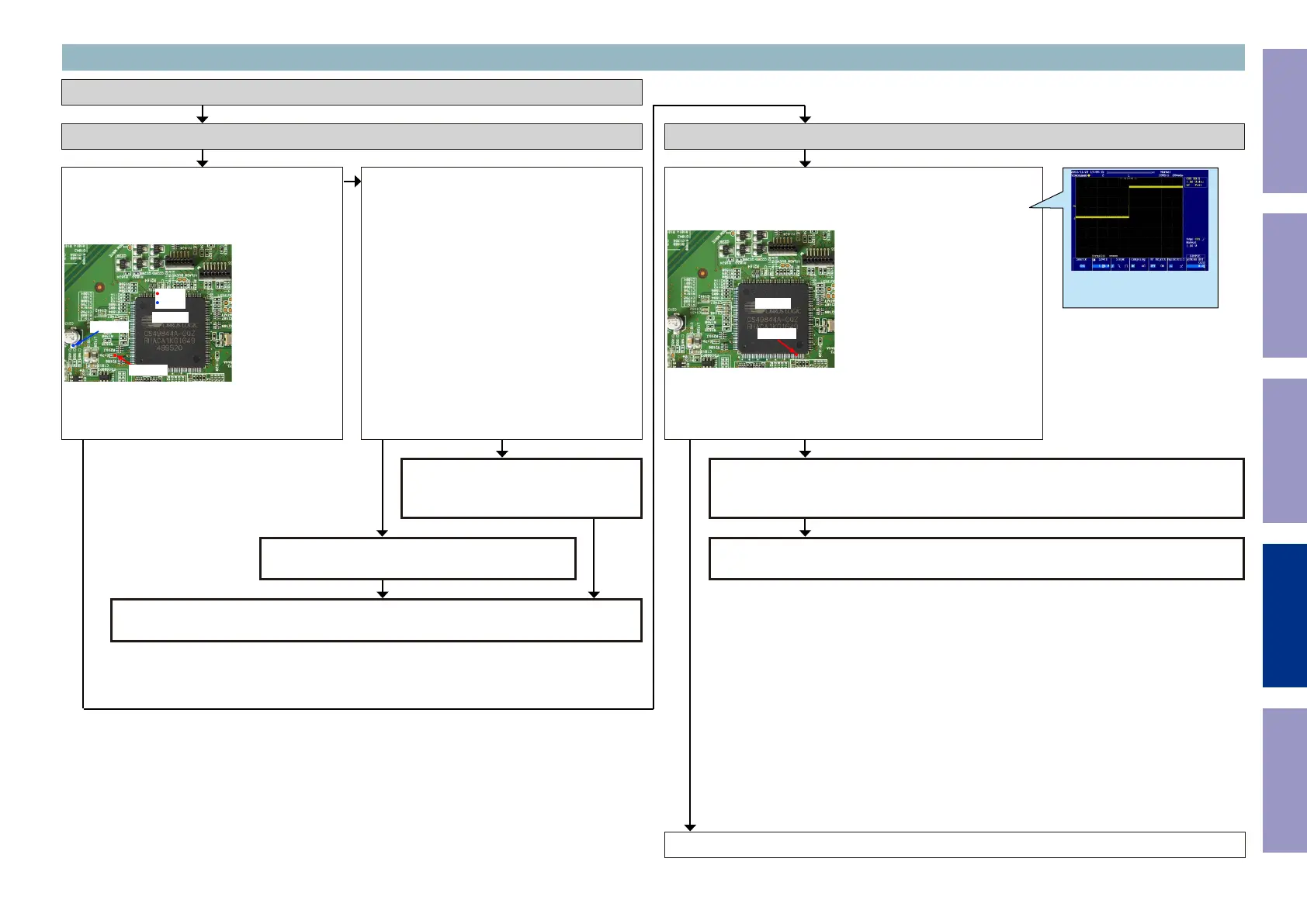

3-8. Error Code H1-08 failure detection procedure
NO
DSP [U1073] is faulty.
Replace with a new device.
Recheck from check item (3.1.)
If it does not work, replace the PCB.
The power supply circuit is faulty.
Replace the PCB.
NOYES
YES
Check item(3-8.3.). Checking the reset :
Check the CPU.
Is the waveform of the TP near the DSP [U1073] correct (like the
one shown in the diagram) when the power is turned on?
U1073
32pin
Checking the reset waveform.
Recheck from check item (3.1.)
If it does not work, replace the PCB.
Check the reset circuit between CPU [U1018] and DSP [U1073].
If there is no problem, the DSP [U1073] is faulty.
Replace with a new device.
NOYES
Examples of conrmation waveform
Voltage scale : 1.0V/div
Time scale : 20ms/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
107

Denon AVR-X3500H Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	215 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, Spotify, Tidal, TuneIn, iHeartRadio
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
HDMI in	8
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Speakers connectivity type	Binding post
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	390 mm
Width	434 mm
Height	167 mm
Weight	10800 g
