Denon AVR-X3500H Service Manual

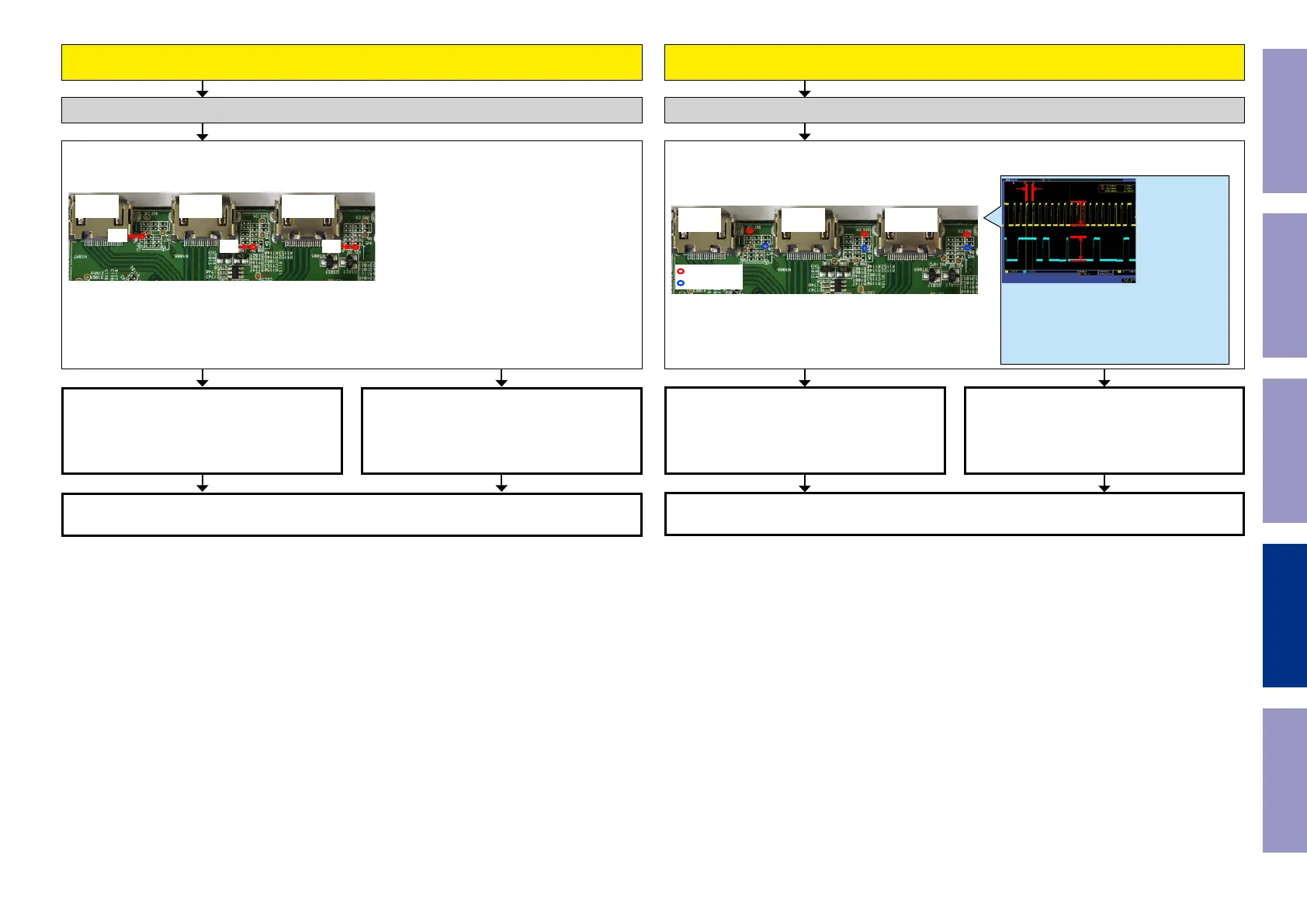

When the results of check item (3-11.1.) are "NO"
(Detection of 5V is not OK)
When the results of check item (3-11.2.) are "00 or 04"
(Detection of DDC is not OK.)
Check item(3-11.3.). Check the +5V voltage.
Does the test point near HDMI input terminal [N1005/N1006/N1007] indicate 5V?
N1006
HDMI 6
[AUX2]
N1007
HDMI 7
[CD]
N1005
HDMI 5
[MEDIA PLAYER]
5V
5V 5V
Check item(3-11.4.). Check the DDC line :
Are waveforms of "DDCSCK" and "DDCSDA" observed at the test point near the HDMI input terminal
[N1005/N1006/N1007]?
N1006
HDMI 6
[AUX2]
N1007
HDMI 7
[CD]
N1005
HDMI 5
[MEDIA PLAYER]
DDCSCK
DDCSDA
Check the +5V voltage. (HDMI IN5 - 7) Check the DDC line. (HDMI IN5 - 7)
HDMI Switcher1 [U1003] is faulty.
Replace with a new device.
Recheck from check item (3.2.)
If it does not work, replace the PCB.
HDMI Switcher1 [U1003] is faulty.
Replace with a new device.
Check for a short circuit in the 5V line and the 5V
Switch IC [U1002].
If there is no problem, the HDMI Switcher1
[U1003] or the 5 V Switch IC [U1002] is faulty.
Replace with a new device.
Check for a short circuit in the DDC line.
If there is no problem, the HDMI Switcher1
[U1003] is faulty.
Replace with a new device.
Recheck from check item (3.2.)
If it does not work, replace the PCB.
YES NO
YES NO
less than 100KHz
5V
5V
This diagram shows an example of the DDC commu-
nication waveform.
-The high level voltage is 5V.
-The frequency of the DDC CLK is 100kHz or less.
Check at each test point.
Voltage scale : 2.0V/div
Time scale : 40us/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
114

Denon AVR-X3500H Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	215 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, Spotify, Tidal, TuneIn, iHeartRadio
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
HDMI in	8
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Speakers connectivity type	Binding post
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	390 mm
Width	434 mm
Height	167 mm
Weight	10800 g
