Denon AVR-X3500H Service Manual

HDMI Switcher1 [U1003] is faulty.
Replace with a new device.
Recheck from check item (3.2.)
If it does not work, replace the PCB.
Check for a short circuit in the TMDS/HPD line.
If there is no problem, the HDMI Switcher1 [U1003] is faulty.
Replace with a new device.
When the results of check item (3-11.7.) are "30 or 20 or 10 or 00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )

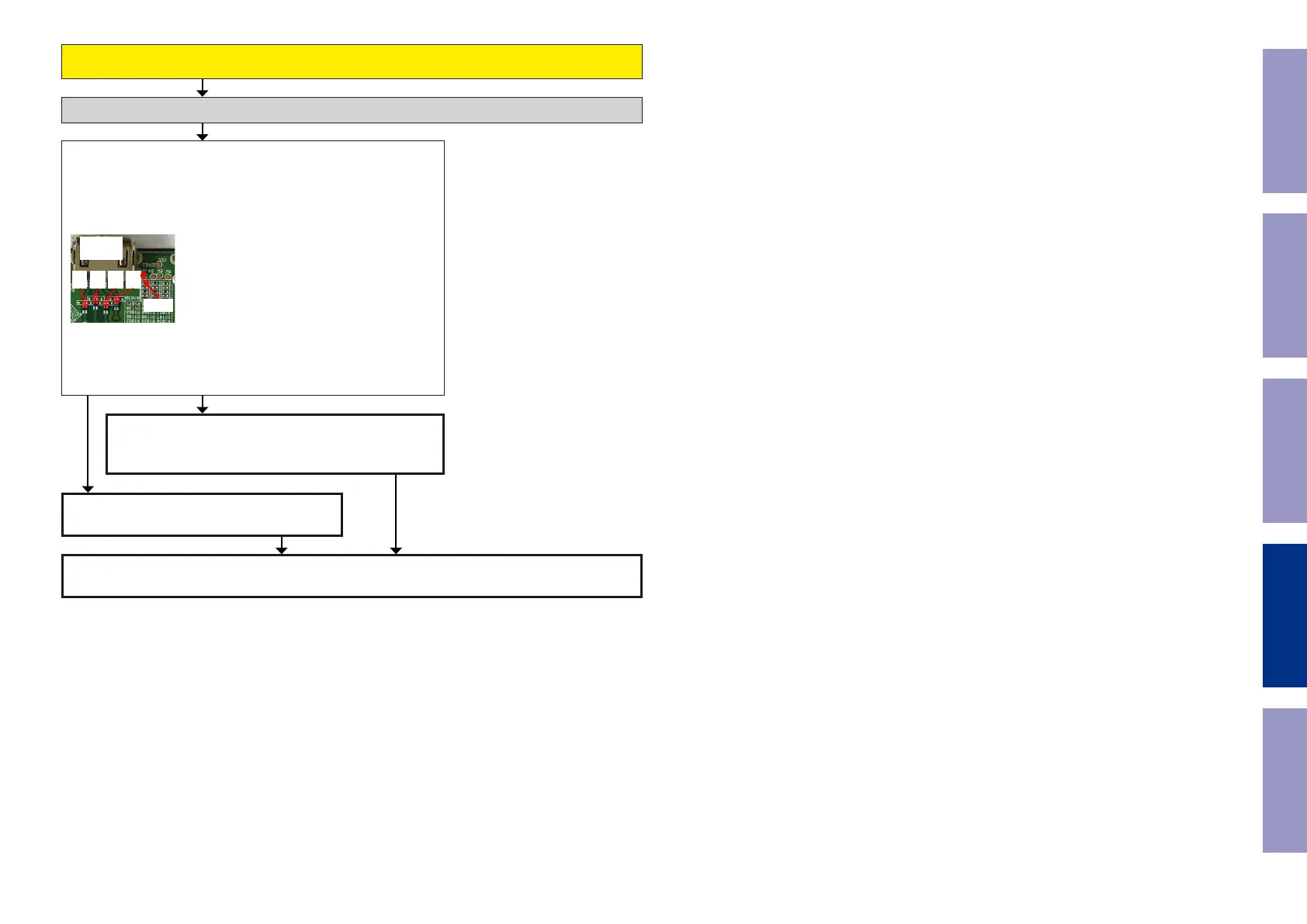

Check item(3-11.13.). Checking the HPD and RXSENSE. :
Does the test point near HDMI output terminal [N1030] indicate
(3.3V)?
Does the test point (HPD) near HDMI output terminal [N1030] indi-
cate "Hi(3-5V)"?
N1030
HDMI OUT
[ZONE2]
D2+ D2- D1+ D1- D0+ D0- CK+ CK-
HPD
Check the TMDS/HPD. (HDMI ZONE2 OUT)
NOYES
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
118

Denon AVR-X3500H Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	215 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, Spotify, Tidal, TuneIn, iHeartRadio
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
HDMI in	8
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Speakers connectivity type	Binding post
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	390 mm
Width	434 mm
Height	167 mm
Weight	10800 g
