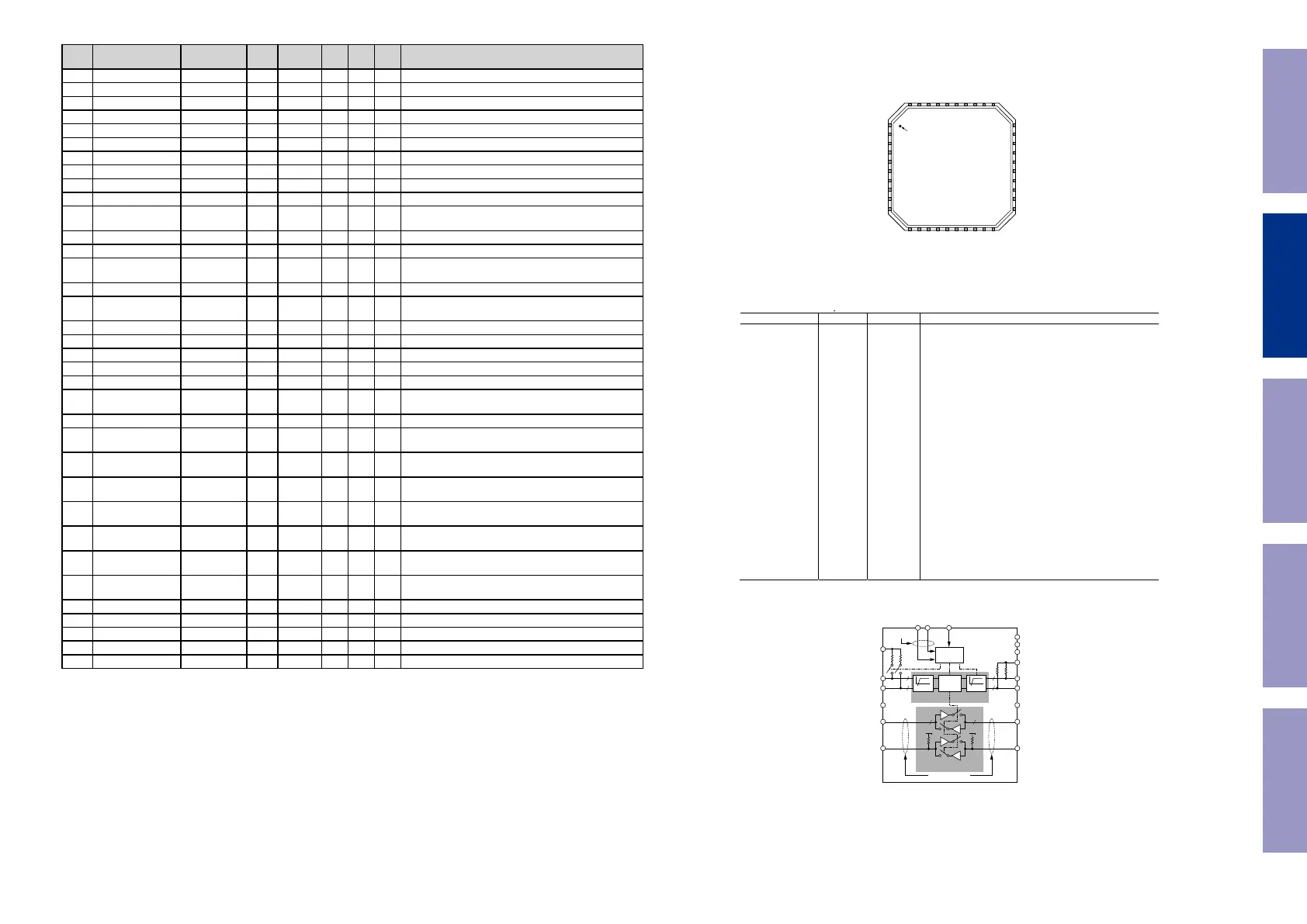

Denon AVR-X3500H Service Manual

Pin Pin Name Symbol I/O Pu/Pd STBY STOP
CEC
STBY
Function
142 VCC VCC
- - - -
Power supply pin
143 PD7/IRQ7/AN107 DIR_CE
O L L L
DIR (PCM9211) control pin
144 PG1 DIR_DOUT
I DA3.3Pu I I I
DIR (PCM9211) control pin
145 PD6/IRQ6/AN106 DIR_CLK
O L L L
DIR (PCM9211) control pin
146 PG0 DIR_RST
O L L L
DIR (PCM9211) control pin
147 PD5/IRQ5/AN113 787_HAINT
I - Z -
HDMI Rx (MN864787) audio interrupt signal det
148 PD4/IRQ4/AN112 ZVOL_STB
O L L L
ZONE2 volume control pin (NJW1194)
149 P97 DE_RST
O Pd Z L
Video decoder (ADV7180) reset control pin
150 PD3/IRQ3/AN111 787_HINT
I - Z -
HDMI Tx (MN864787) interrupt signal input pin
151 VSS VSS
- - - -
Ground pin
152 P96 787_RST
O Pd Z H
HDMI Tx (MN864787) reset control pin (When CEC
standby mode3,set to reset)
153 VCC VCC
- - - -
Power supply pin
154 PD2/IRQ2/AN110 788_2_HINT
I - Z - -
HDMI Rx (MN864788) interrupt signal input pin
155 P95 788_2_RST
O Pd Z - H
HDMI Rx (MN864788) reset control pin (When CEC
standby mode3,set to reset)
156 PD1/IRQ1/AN109 788_1_HINT
I - Z - -
HDMI Rx (MN864788) interrupt signal input pin
157 P94 788_1_RST
O Pd Z - H
HDMI Rx (MN864788) reset control pin (When CEC
standby mode3,set to reset)
158 PD0/IRQ0/AN108 TTL_SEL_B
O L L L
Video PLD control pin(select for A to H/NET/HDMI)
159 P93/AN117 THERMAL_A
I SW3VPu I L I
Protection detect signal input pin (for power TR)
160 P92/RXD7/AN116 THERMAL_F
I SW3VPu I L I
Protection detect signal input pin (for power TR)
161 P91/AN115 TTL_SEL_A
O - L L L
Video PLD control pin(select for A to H/NET/HDMI)
162 VSS VSS
- - - -
Ground pin
163 P90/TXD7/AN114
TEMP_SEN-
SOR
I I L I
Temperature sensor input pin (for SRM)
164 VCC VCC
- - - -
Power supply pin
165
P47/IRQ15-DS/
AN007
ARC_INT
I L L L
ARC IC interrupt signal input pin
166
P46/IRQ14-DS/
AN006
CURRENT_DET
I/O I/L L/L I/L
Current level monitor pin (A/D converter)
167
P45/IRQ13-DS/
AN005
AMPSIGDET
I I L I
Signal level monitor pin (AD converter)
168
P44/IRQ12-DS/
AN004
MODE
I I I I
Region setting pin
169
P43/IRQ11-DS/
AN003
KEY3
I M3VPu I I I
Key control signalinput pin (When standby mode,set to
inturrupt)
170
P42/IRQ10-DS/
AN002
KEY2
I M3VPu I I I
Key control signalinput pin (When standby mode,set to
inturrupt)
171
P41/IRQ9-DS/
AN001
KEY1
I M3VPu I I I
Key control signalinput pin (When standby mode,set to
inturrupt)
172 VREFL0 VREFL0
- - - -
Ground pin
173 P40 ADC_RST
O I L I
A/D convertor(AK5358) reset control pin
174 VREFH0 VREFH0
- - - -
Power supply pin
175 AVCC0 AVCC0
- - - -
Power supply pin
176 P07/IRQ15 Z2PLD_ERR
I - L L L
Detect ZONE2 DIR error (from Audio PLD)
AD8195ACPZ (INPUT : U1022)
Terminl Function
Block diagram
NOTES
1. THE AD8195 LFCSP HAS AN EXPOSED PAD ON THE UNDERSIDE OF
THE PACKAGE THAT AIDS IN HEAT DISSIPATION. THE PAD MUST BE
ELECTRICALLY CONNECTED TO THE AVEE SUPPLY PLANE IN ORDER
TO MEET THERMAL SPECIFICATIONS.
AD8195
TOP VIEW
(Not to Scale)
1IN0
2IP0
3IN1
4IP1
5VTTI
6IN2
7IP2
10AVCC
30 AVCC
29 PE_EN
28 TX_EN
27 AVEE
26 AVCC
25 AVCC
24 AVEE
21 COMP
40 SCL_IN
39 SDA_IN
38 CEC_IN 37 AVEE
36 VREF_IN
35 SCL_OUT
34 SDA_OUT 31 CEC_OUT
11ON0
12OP0
13VTTO
14ON1
15OP1
16AVCC 17ON2
20OP3
9IP3
8IN3
22 AVCC
23 AVCC
19ON3
18OP2
32 AMUXVCC
33 VREF_OUT
PIN 1
INDICATOR
0
7049-003
AD8195
Rev. 0 | Page 6 of 20
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. THE AD8195 LFCSP HAS AN EXPOSED PAD ON THE UNDERSIDE OF
THE PACKAGE THAT AIDS IN HEAT DISSIPATION. THE PAD MUST BE
ELECTRICALLY CONNECTED TO THE AVEE SUPPLY PLANE IN ORDER
TO MEET THERMAL SPECIFICATIONS.
AD8195
TOP VIEW
(Not to Scale)
1IN0
2IP0
3IN1
4IP1
5VTTI
6IN2
7IP2
10AVCC
30 AVCC
29 PE_EN
28 TX_EN
27 AVEE
26 AVCC
25 AVCC
24 AVEE
21 COMP
40 SCL_IN 39 SDA_IN 38 CEC_IN 37 AVEE 36 VREF_IN 35 SCL_OUT 34 SDA_OUT 31 CEC_OUT
11ON0 12OP0 13VTTO 14ON1 15OP1 16AVCC 17ON2 20OP3
9IP3
8IN3
22 AVCC
23 AVCC
19ON3 18OP2
32 AMUXVCC 33 VREF_OUT
PIN 1
INDICATOR
07049-003
Figure 3. Pin Configuration
Table 6. Pin Function Descriptions
Pin No. Mnemonic Type
1
Description
1 IN0 HS I High Speed Input Complement.
2 IP0 HS I High Speed Input.
3 IN1 HS I High Speed Input Complement.
4 IP1 HS I High Speed Input.
5 VTTI Power Input Termination Supply. Nominally connected to AVCC.
6 IN2 HS I High Speed Input Complement.
7 IP2 HS I High Speed Input.
8 IN3 HS I High Speed Input Complement.
9 IP3 HS I High Speed Input.
10, 16, 22, 23, 25, 26, 30 AVCC Power Positive Analog Supply. 3.3 V nominal.
11 ON0 HS O High Speed Output Complement.
12 OP0 HS O High Speed Output.
13 VTTO Power Output Termination Supply. Nominally connected to AVCC.
14 ON1 HS O High Speed Output Complement.
15 OP1 HS O High Speed Output.
17 ON2 HS O High Speed Output Complement.
18 OP2 HS O High Speed Output.
19 ON3 HS O High Speed Output Complement.
20 OP3 HS O High Speed Output.
21 COMP Control Power-On Compensation Pin. Bypass to ground through a 10 μF capacitor.
24, 27, 37, Exposed Pad AVEE Power Negative Analog Supply. 0 V nominal.
28 TX_EN Control High Speed Output Enable Parallel Interface.
29 PE_EN Control High Speed Preemphasis Enable Parallel Interface.
31 CEC_OUT LS I/O CEC Output Side.
32 AMUXVCC Power Positive Auxiliary Buffer Supply. 5 V nominal.
IP[3:0]
IN[3:0]
VTTI
OP[3:0]
AMUXVCC
AVEE
VTTO
AVCC
ON[3:0]
VREF_IN VREF_OUT
+
–
+
–
EQ
BUFFER
PE
CONTROL
LOGIC
4
4
4
22
4
HIGH SPEED BUFFERED
LOW SPEED BUFFERED
PE_EN
TX_EN
COMP
PARALLEL
BIDIRECTIONAL
AD8195
SCL_IN
SDA_IN
SCL_OUT
SDA_OUT
CEC_IN CEC_OUT
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
56

Denon AVR-X3500H Specifications

General

Receiver type	Surround
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	215 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Napster, Pandora, Spotify, Tidal, TuneIn, iHeartRadio
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
HDMI in	8
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Speakers connectivity type	Binding post
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	390 mm
Width	434 mm
Height	167 mm
Weight	10800 g
