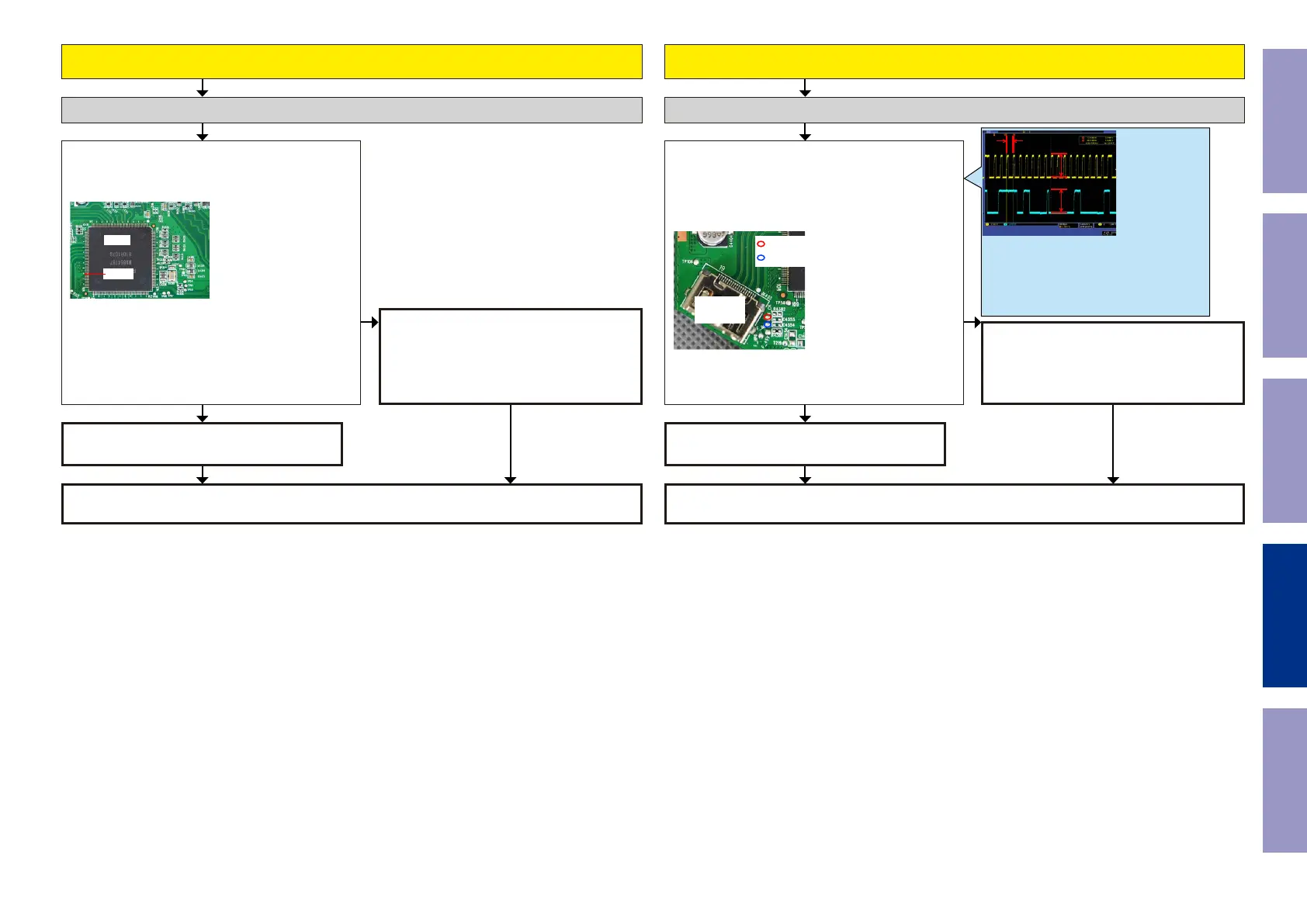

When the results of check item (3-17.1.) are "78 or 70"
(Detection of 5V is not OK.)
When the results of check item (3-17.2.) are "00 or 04"
(Detection of DDC is not OK.)
Check item(3-17.3.). Check the +5V voltage.
Does the HDMI Tx [IC431] test point indicate (5V)?
The test points are as follows.
IC431
106pin
Check item(3-17.4.). Check the DDC line :
Are the "DDCSCK" and "DDCSDA" waveforms for
the HDMI Tx [IC431] signal correct (as shown in the
gure)?
The test points are as follows.
JK433
HDMI OUT
[F-HDMI]
F_CK
F_DA
Check the +5V voltage. (HDMI DDC Buffer) Check the DDC Line. (HDMI DDC Buffer)
HDMI Tx [IC431] is faulty.
Replace with a new device.
Recheck from check item (3.4.)
If it does not work, replace the PCB.
Recheck from check item (3.4.)
If it does not work, replace the PCB.
HDMI Tx [IC431] is faulty.
Replace with a new device.
Check for a short circuit in the 5 V line, the
Front HDMI FFC, and the 5 V Switch [IC392].
If there is no problem, the HDMI Tx [IC431] or
the 5 V Switch [IC392] is faulty.
Replace with a new device.
Check for a short circuit in the DDC line and
check the Front HDMI FFC.
If there is no problem, the HDMI DDC Buffer
[IC201] is faulty.
Replace with a new device.
YESYES
NO NO
less than 100KHz
5V
5V
This diagram shows an example of the DDC commu-
nication waveform.
-The high level voltage is 5V.
-The frequency of the DDC CLK is 100kHz or less.
Check at each test point.
Voltage scale : 2.0V/div
Time scale : 40us/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
143
