ADJUSTMENT
Adjusting Idling Current
NOTE:Adjusting the idling current when "ECO Mode" is set may damage the Power AMP.
1. Preparation
(1) Prepare a DC voltmeter.
(2) Place the unit under normal usage conditions, away from highly ventilated areas such as next to an
air conditioning machine or electric fan.
The set requires an ambient temperature of 15℃ to 30℃ and standard humidity.
(3) Settings of This Unit
• POWER (Power source switch) STANDBY
• SPEAKER (Speaker terminal) No load
(Do not connect equipment such as speakers or dummy resistors.)
2. Adjustment Procedure
(1) Make sure that "ECO Mode" is off.
• Press the "
SETUP
" button on the remote control to display the GUI menu.
• Press the cursor button to select "General" → "ECO" → "Mode" → "Off".

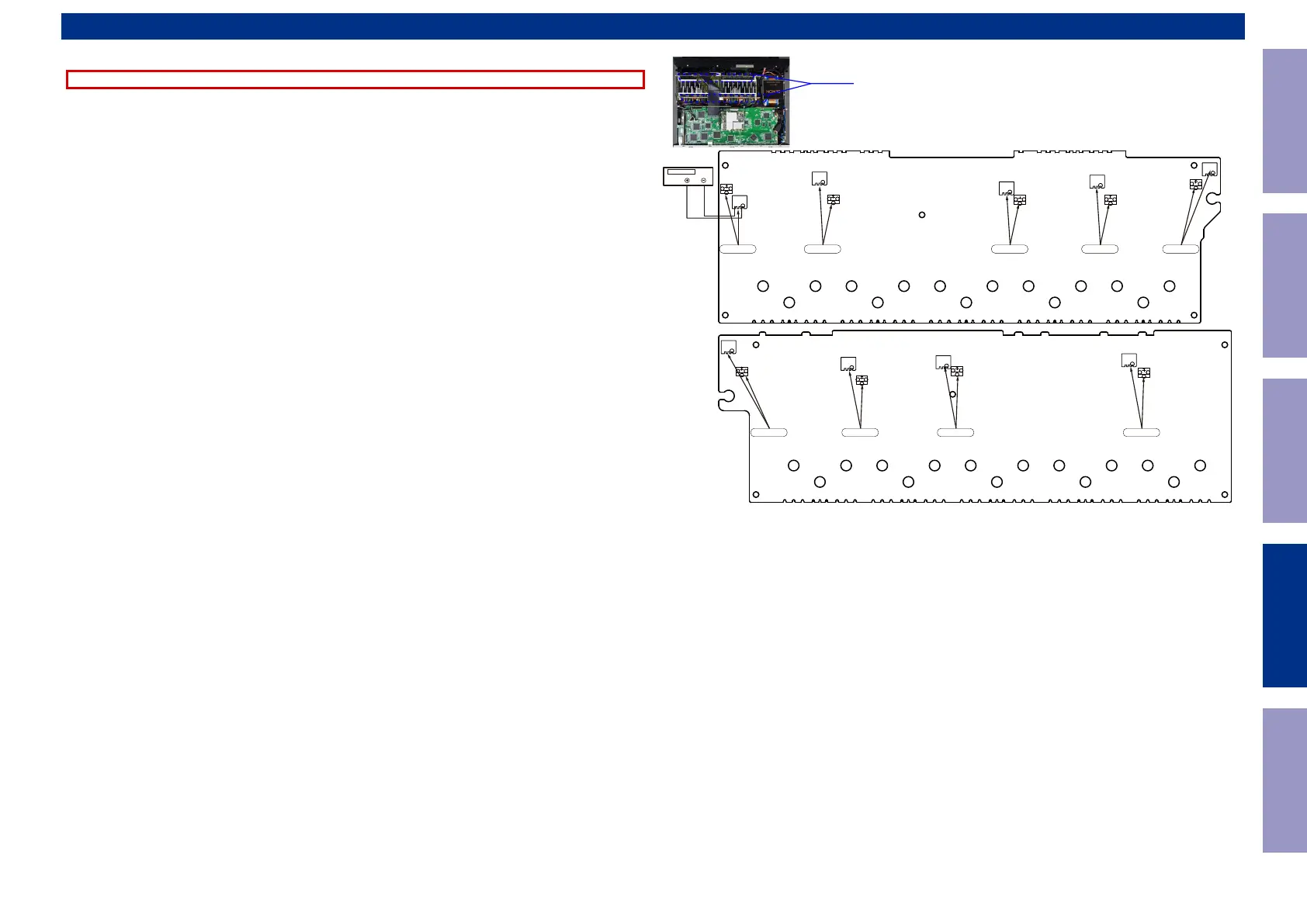

(2) Remove the top cover and turn VR714 (ALL Channel) of the AMP PCB counterclockwise(
c
) as far as
possible.
(3) Connect the DC Voltmeter to the test points.
FRONT-Lch : CN715 : VR714
FRONT-Rch : CN725 : VR724
CENTER ch : CN735 : VR734
SURROUND-Lch : CN745 : VR744
SURROUND-Rch : CN755 : VR754
ASSIGN-2Rch : CN765 : VR764
ASSIGN-1Rch : CN775 : VR774
ASSIGN-2Lch : CN785 : VR784
ASSIGN-1Lch : CN795 : VR794
(4) Connect the power cord to an outlet. Next, press the power button to turn on the power.
(5) Set this unit as follows.
MASTER VOLUME : "---" (
c
min.) : turn counterclockwise to the lowest position.
SPEAKER (Speaker terminal) : No load
(Do not connect equipment such as speakers or dummy resistors.)
MODE : MCH STEREO
FUNCTION : DVD
(6) Turn VR741 clockwise (
x
) and adjust the voltage of the test point to "
8.0mV ± 0.5mV DC
" within 2
minutes.
(7) Check whether the voltage is within the range "
8.0mV ± 2mV DC
" 10 minutes after adjustment.
(8) Adjust the variable resistance of each channel using the same method.
ASSIGN2 L
VR784
CN785
ASSIGN1 L
ASSIGN2 R
ASSIGN1 R
VR794
VR774
VR764
CN795
CN775
CN765
SR-CH
VR754
CN755
FR-CH
VR724
CN725
C-CH
VR734
CN735
FL-CH
VR714
CN715
SL-CH
VR744
CN745
SL ch
DC Voltmeter
FL chC chFR chSR ch
ASSIGN1 RchASSIGN2 RchASSIGN1 LchASSIGN2 Lch
5CH AMP PCB
4CH AMP PCB
AMP UNIT
